| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 42-48 |
| Rated welding current (A) | 630 |
| Maximum operating current, A | 800 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 17 - 630 |
| Diameter of a stick electrode, mm | 1,6-8 |
| Diameter of solid welding wire, mm | 0,6 - 2 |
| Warranty period, month | 24 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/90 |
| Arc ignition voltage, V | 115 |
| Rated power consumption, kVA | 27,7-31,7 |
| Maximum consumption,power kVA | 39,6 |
| Overall dimensions, WxLxH, mm | 220х510х411 |
| Weight, kg | 24,2 |
| Protection rate | IP21 |

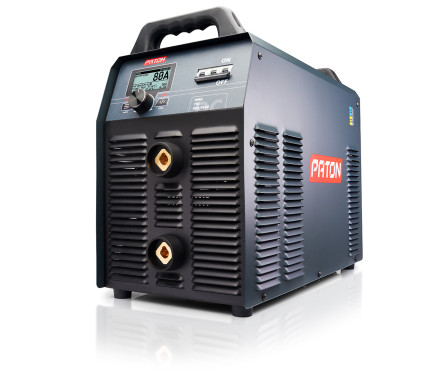

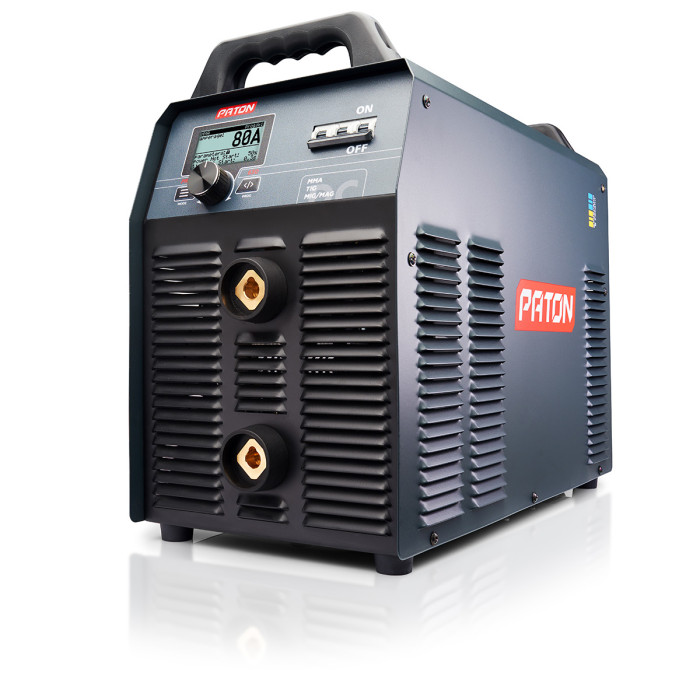

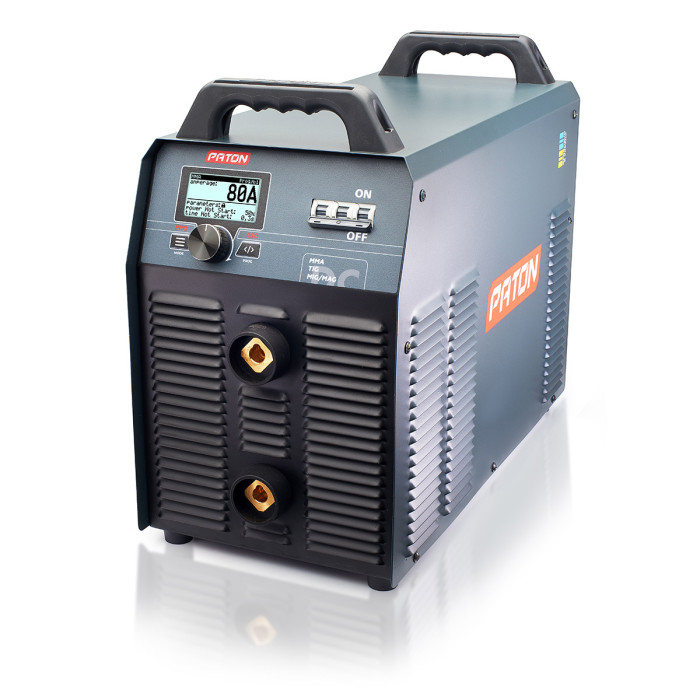

Digital welding inverter PATON PRO-630-400V - an industrial machine intended for manual arc welding (MMA), argon (TIG) and semi-automatic welding (MIG/MAG), a medium protective gases and mixtures thereof. Advantages of the apparatus PATON PRO-630 are in the fully digital control method. Thanks to the LCD display, the device is convenient to customize for any task. Series «Professional» welding machines aimed at the use in the industrial sector, with the possibility of additional adjustments. PRO-630 provides a substantially continuous load duration at the nominal current of up to 630A for any electrode diameter greater than 6 mm (including refractory), as well as for semi-continuous welding wire with diameters greater than 1.6 mm.
The model PRO-630 embedded in a block of RDS «MMA» reducing idle mode voltage to ensure safe operation in difficult conditions, as well as the protection unit undervoltage and overvoltage from short to improve reliability of the apparatus. Included with the machine PATON PRO-630 provides reliable accessories from the German manufacturer ABICOR BINZEL.
The model PRO-630 embedded in a block of RDS «MMA» reducing idle mode voltage to ensure safe operation in difficult conditions, as well as the protection unit undervoltage and overvoltage from short to improve reliability of the apparatus. Included with the machine PATON PRO-630 provides reliable accessories from the German manufacturer ABICOR BINZEL.

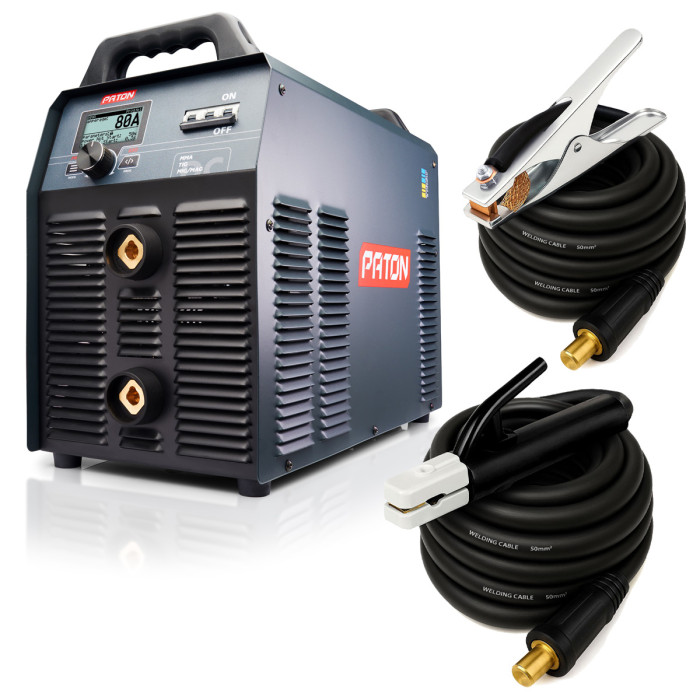

" />- The welding unit
- PATON™ branded carton box
- The welding cable 5 m in length with an ABICOR BINZEL DE2500 electrode holder
- The welding cable 5 m in length with an ABICOR BINZEL MK400 grounding clamp
- The operation manual
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 42-48 |
| Rated welding current (A) | 630 |
| Maximum operating current, A | 800 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 17 - 630 |
| Diameter of a stick electrode, mm | 1,6-8 |
| Diameter of solid welding wire, mm | 0,6 - 2 |
| Warranty period, month | 24 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/90 |
| Arc ignition voltage, V | 115 |
| Rated power consumption, kVA | 27,7-31,7 |
| Maximum consumption,power kVA | 39,6 |
| Overall dimensions, WxLxH, mm | 220х510х411 |
| Weight, kg | 24,2 |
| Protection rate | IP21 |
- 59999 грн
