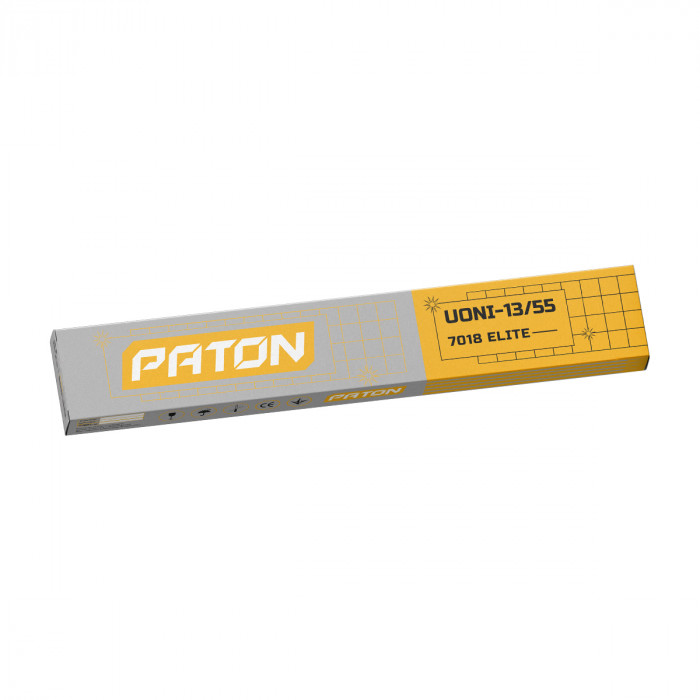

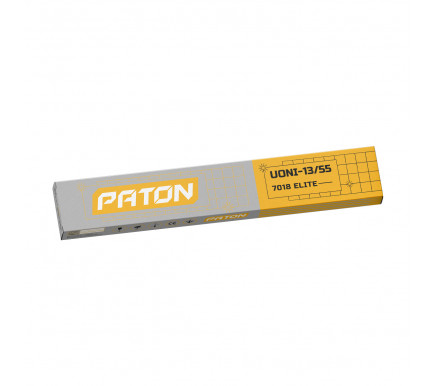

Welding electrodes UONI 7018 ELITE 3 мм 5 kg

Code: 4009454
Welding electrodes UONI 7018 ELITE 3 мм 5 kg
Code: 4009454
In Stock
  • 440 грн
Quick Checkout
Pay in installments
73 hrn
x 6 month
6
6
Department of Nova Poshta
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free from UAH 3,000.
Free
Specification
Diameter 3
Weight 5
Temporary resistance to rupture, MPa 500–640
Welded materials Steels up to a yield strength of 420 N/mm2 (55 ksi)
Yield strength, MPa ≥420
Relative elongation,% ≥26
Impact strength, J / cm2 KCU, + 200 C ≥180
Impact force, KCV, J, -400C ≥47
Show all specifications
Description

The electrodes are designed for welding particularly critical structures made of low-carbon and low-alloy steels with high yield strength, when the weld metal is subject to increased requirements for ductility and toughness, especially at low temperatures. Can be used in bridge construction, shipbuilding and ship repair, as well as in the production of pressure vessels.

Due to the presence of iron powder in the coating of the electrodes compensated for metal losses due to burning and spraying, reduced consumption of electrodes, increased surfacing productivity, as well as increased productivity of welding.


Chemical composition of the weld metal:

Content of elements,%

С

≤0,09

Si

0,40–0,70

Mn

1,10-1,50

P

≤0,030

S

≤0,020


Classification:

Certificates:

EN ISO 2560-A: E 42 4 B 42 H 10

AWS A5.1: E 7018

ГОСТ 9466: E50А-UONI 7018 ELITE-d-UD

                                Е515 BG 26

Paton CERT

UkrSEPRO

ABS

СЄ




 Welding current, welding position:

AC/DC +

C:\Users\USER10\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\0LOV6DM8\el.jpg

Complete set
  • Welding electrodes UONI 7018 ELITE  3 мм 5 kg
