PATON PRO-500-400V

Code: 4012383
-15%
Code: 4012383
In Stock
  • 49999 грн
  • 42499 грн
Pay in installments
4166 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 33-35
Rated welding current (A) 500
Maximum operating current, A 630
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 15 - 500
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,6
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/90
Arc ignition voltage, V 110
Rated power consumption, kVA 22,6-25
Maximum consumption,power kVA 28,9
Cooling Adaptive
Overall dimensions, WxLxH, mm 220х510х386
Gross weight, kg 31
Weight, kg 22,5
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

Digital welding inverter PATON PRO-500-400V - an industrial machine intended for manual arc welding (MMA), argon (TIG) and semi-automatic welding (MIG/MAG), a medium protective gases and mixtures thereof. Advantages of the apparatus PATON PRO-500 are in the fully digital control method. Thanks to the LCD display, the device is convenient to customize for any task. Series «Professional» welding machines aimed at the use in the industrial sector, with the possibility of additional adjustments. PRO-500 provides a substantially continuous load duration at the nominal current of up to 500A for any of the electrodes up to 6 mm (including refractory), as well as for semi-continuous welding wire diameter to 1.6 mm.

The model PRO-500 embedded block voltage reduction in idling RDS «MMA» mode for safe operation in difficult conditions, as well as the protection unit undervoltage and overvoltage from short to improve reliability of the apparatus. Included with the machine PATON PRO-500 provides reliable accessories from the German manufacturer ABICOR BINZEL.

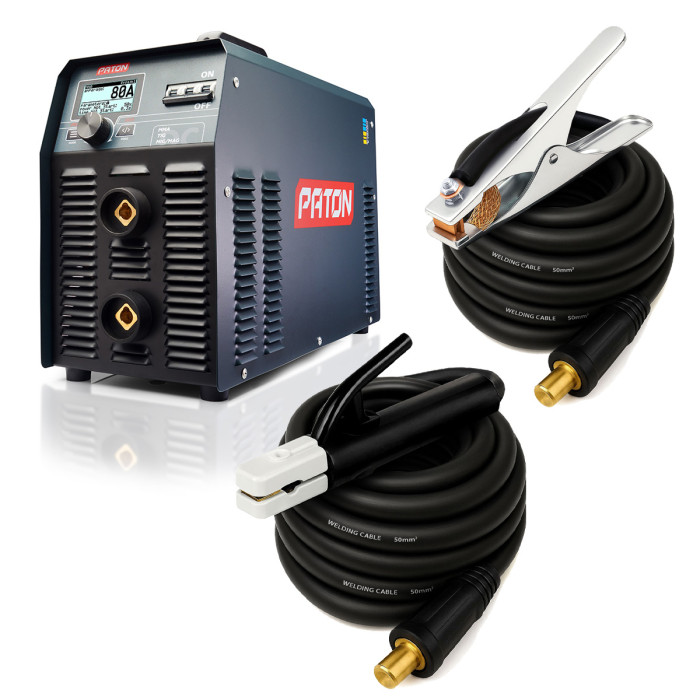

Complete set
  • The welding unit
  • PATON™ branded carton box
  • The welding cable 5 m in length with an ABICOR BINZEL DE2500 electrode holder
  • The welding cable 5 m in length with an ABICOR BINZEL MK400 grounding clamp
  • The operation manual
Additional materials
Testimonials
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 33-35
Rated welding current (A) 500
Maximum operating current, A 630
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 15 - 500
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,6
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/90
Arc ignition voltage, V 110
Rated power consumption, kVA 22,6-25
Maximum consumption,power kVA 28,9
Cooling Adaptive
Overall dimensions, WxLxH, mm 220х510х386
Gross weight, kg 31
Weight, kg 22,5
Protection rate IP21
