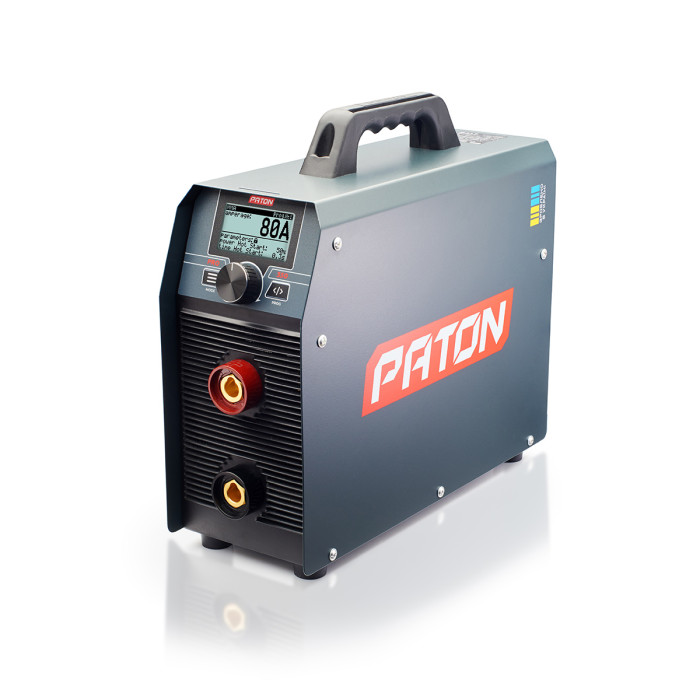

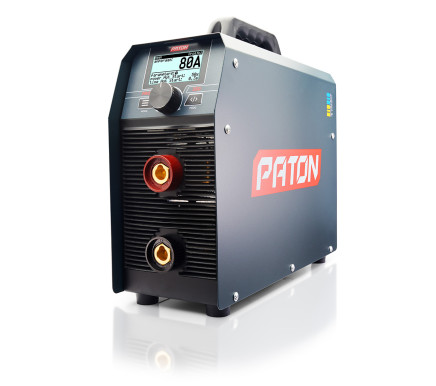

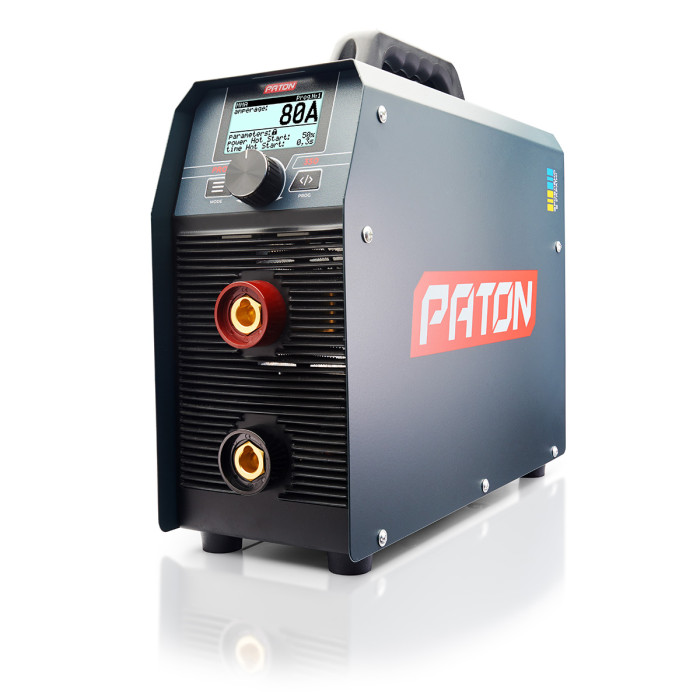

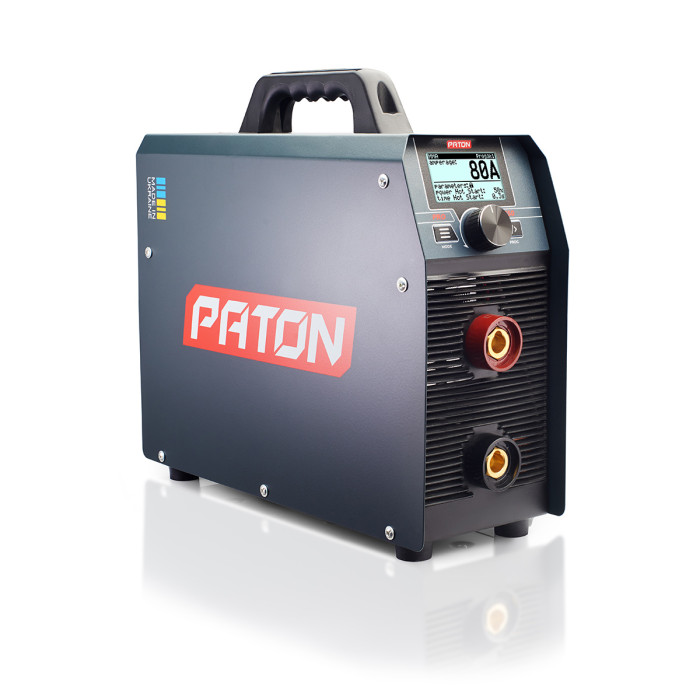

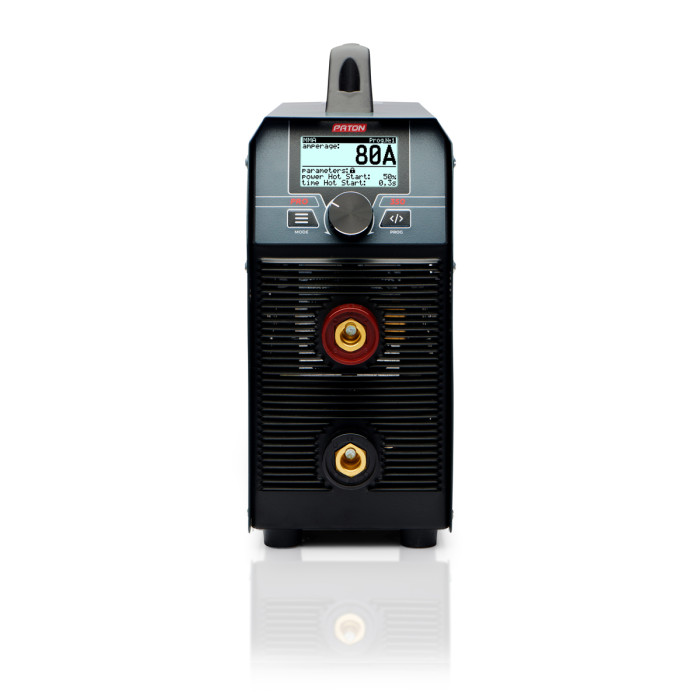

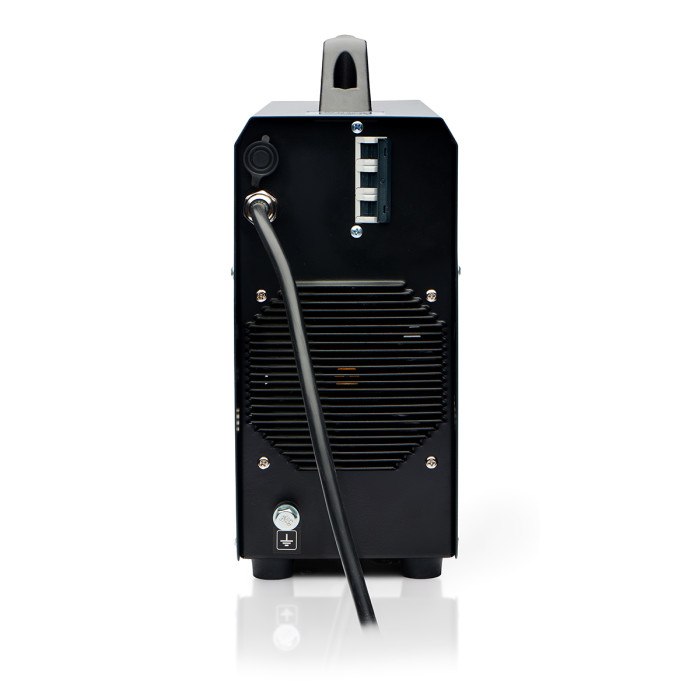

PATON™ PRO-350-400V

Code: 4011966
Code: 4011966
In Stock
  • 24999 грн
  • 21249 грн
Pay in installments
2083 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16-18
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 15 - 350
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 10,5-11,8
Maximum consumption,power kVA 15
Overall dimensions, WxLxH, mm 144х388х332
Gross weight, kg 15
Weight, kg 10,9
Protection rate IP33
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

Digital welding inverter PATON PRO-350-400V - an industrial machine intended for manual arc welding (MMA), argon (TIG) and semi-automatic welding (MIG/MAG), shielding gas and mixtures. Advantages of the apparatus PATON PRO-350-400V are fully digital control method. Thanks to the LCD display, the device is convenient to customize for any task. Series «Professional» welding machines aimed at the use in the industrial sector, with the possibility of additional adjustments. PRO-350-400V provides virtually continuous load duration at the nominal current of up to 350A for any of the electrodes up to 6 mm (including refractory), as well as for semi-continuous welding wire diameter to 1.4 mm.

The model PRO-350-400V embedded in MMA mode reduction unit idling voltage to ensure safe operation in difficult conditions, as well as the protection unit undervoltage and overvoltage from short to improve reliability of the apparatus. Included with the machine PATON PRO-350-400V reliable accessories are provided by the German manufacturer ABICOR BINZEL.

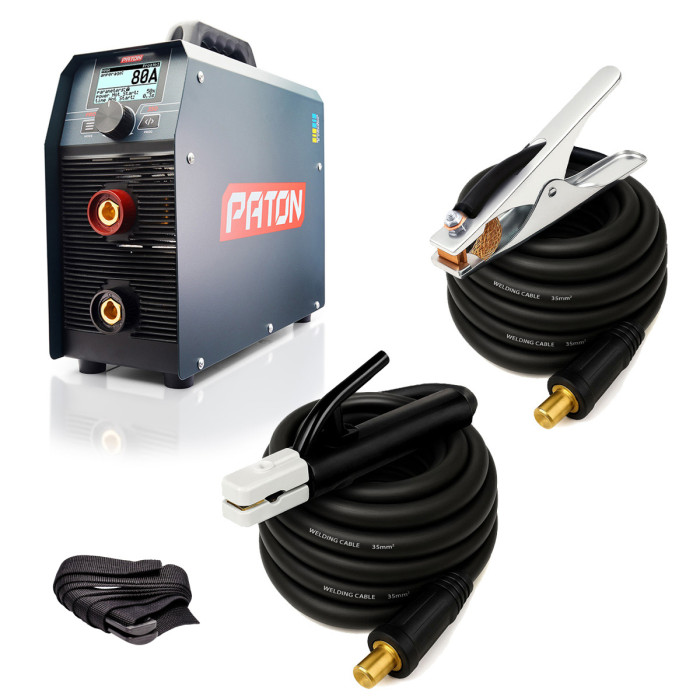

Complete set
  • The welding unit
  • The shoulder-carry belt
  • PATON™ branded carton box
  • The welding cable 3 m in length with an Abicor Binzel DE2300 electrode holder
  • The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
  • The operation manual
Additional materials
Testimonials
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16-18
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 15 - 350
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 10,5-11,8
Maximum consumption,power kVA 15
Overall dimensions, WxLxH, mm 144х388х332
Gross weight, kg 15
Weight, kg 10,9
Protection rate IP33
