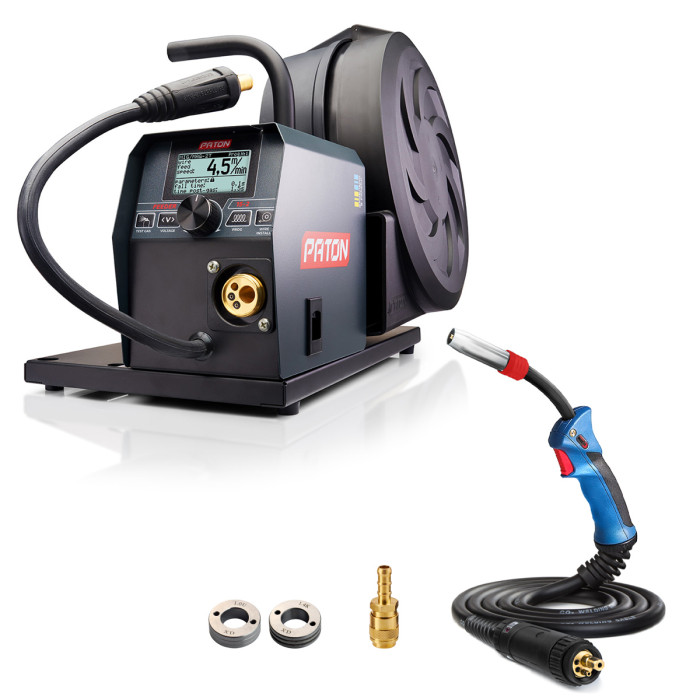

PATON™ Feeder-15-2-250

Code: 4006754
Code: 4006754
In Stock
  • 8499 грн
Pay in installments
1416 hrn
x 6 month
6
6
Specification
Rated power supply voltage, V 220/230
Operating load factor 70%
Power supply voltage range (V) 180-260
Diameter of solid welding wire, mm 0,6 - 1,2
Rated power consumption, kVA 0,05
Maximum consumption,power kVA 0,08
Overall dimensions, WxLxH, mm 260х430х270
Weight, kg 7
Warranty period, month 36
Description
PATON Feeder-15-2-250 - is designed for operation in semi-automatic welding in part with an external source of welding current. supply unit provides a stabilized solid or feeding the cored wire into the weld pool. PATON Feeder-15-2-250 inverter has its own power source for the motor, the protective gas supply valve and a control circuit, and also provided with a powerful and high-quality metal to mechanism hermetic motor. To connect the welding torch using the universal Euroconnector KZ-2, allowing further connect the burner from other manufacturers. During operation of the supply unit, its built-in digital control board receives signals independently with connector KZ-2 and starts the welding process with the characteristics according to the set parameters. The system provides control of the engine speed feeding. Feeder-15-2-250 fully optimized to work with PATON production sources, as the main connectors and installation are already provided for in the design of the device.
Complete set
  • The welding wire feeding unit (rollers for 0.6-0.8 mm and 1.0 -1.2 mm)
  • PATON™ branded corrugated box
  • The semi-automatic ABICOR BINZEL RF 26 GRIP welding torch with a cable
  • The quick-release nipple for a gas hose
  • The operation manual
