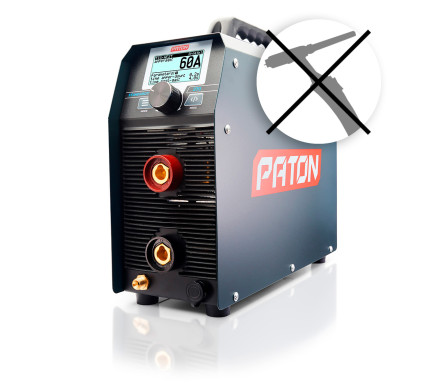

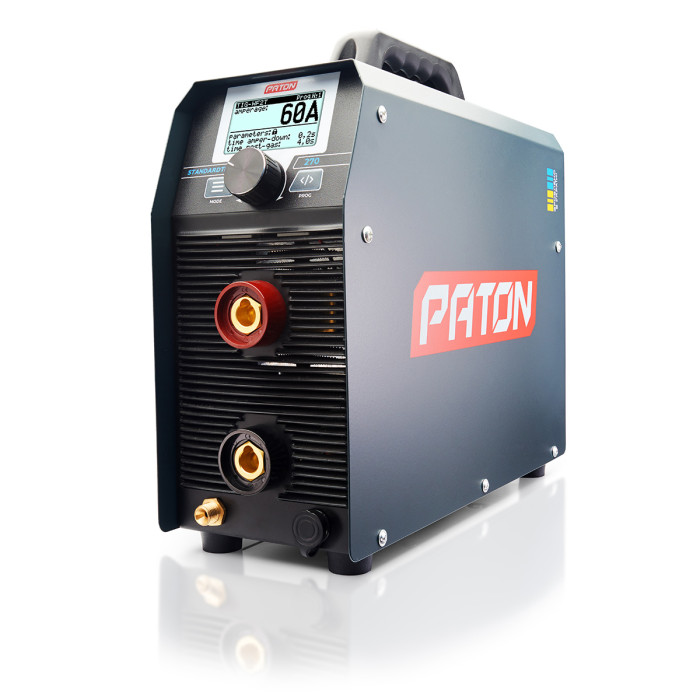

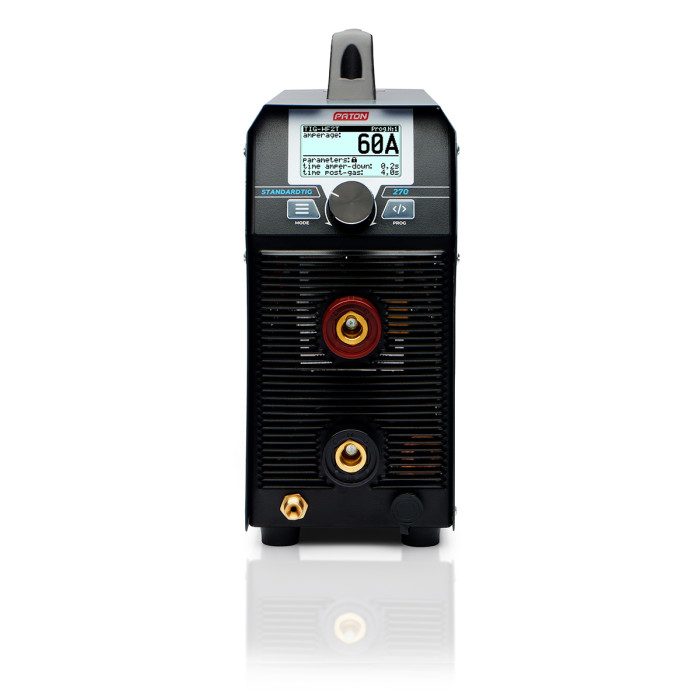

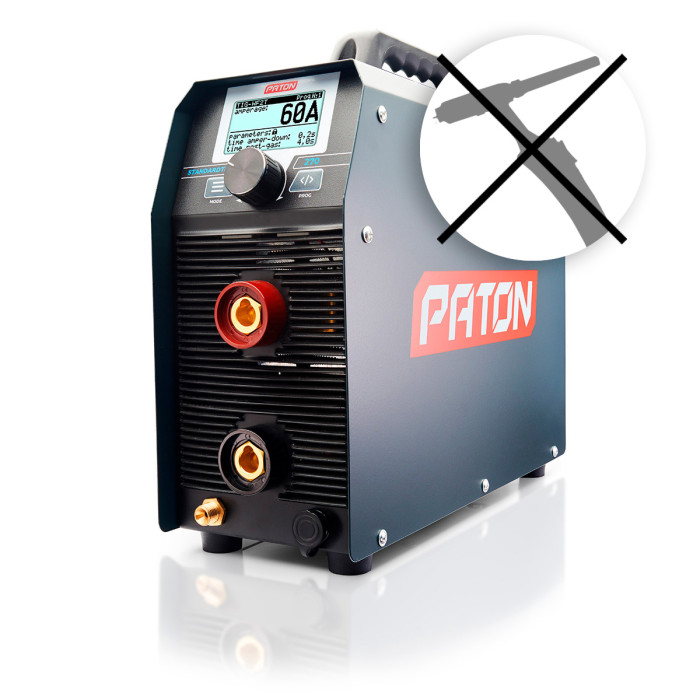

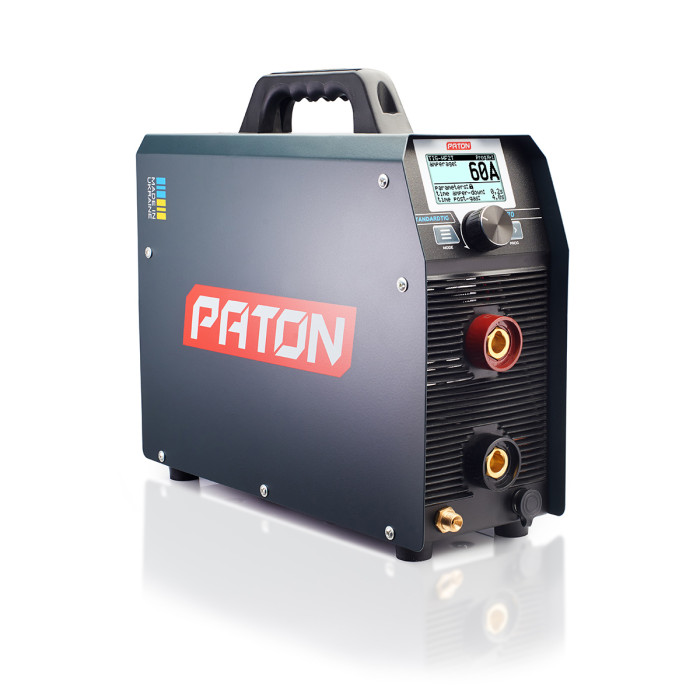

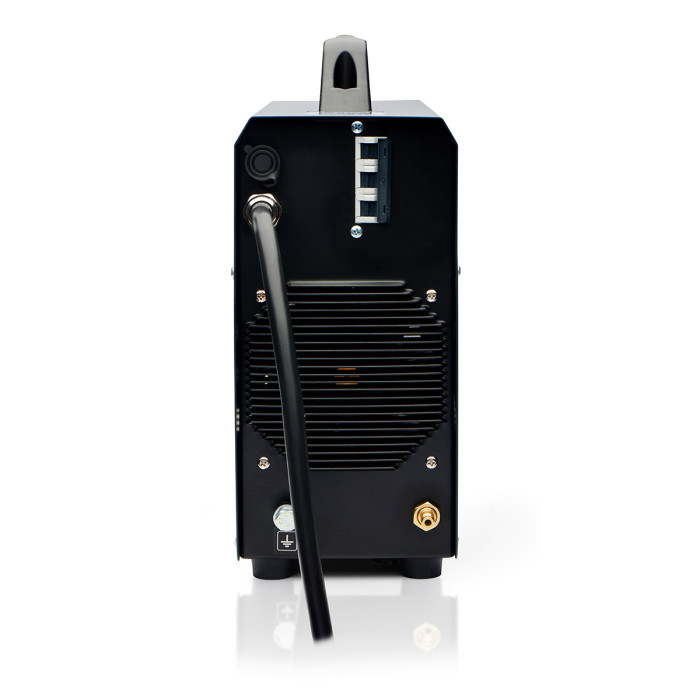

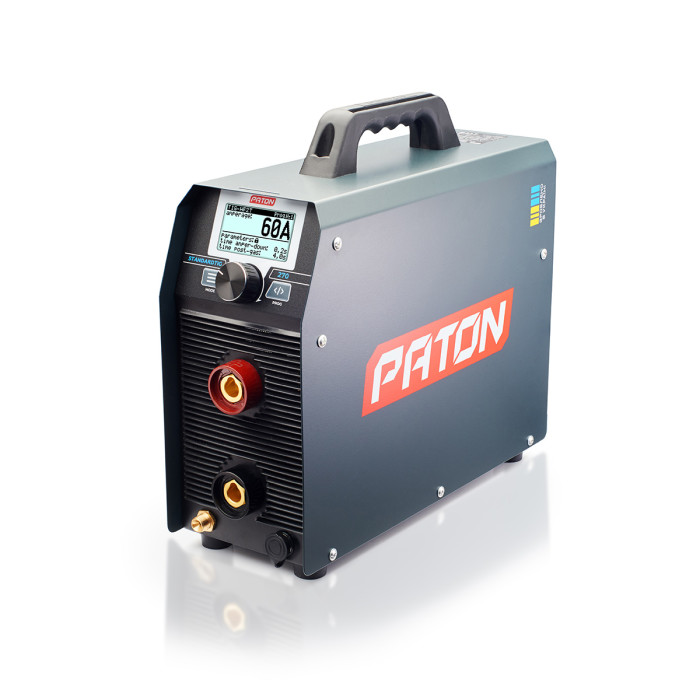

PATON™ StandardTIG-270-400V without torch

Code: 20324740
Code: 20324740
In Stock
  • 12499 грн
Pay in installments
1041 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 12…13
Rated welding current (A) 270
Maximum operating current, A 350
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 270
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,2
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/75
Rated power consumption, kVA 7,9-8,6
Maximum consumption,power kVA 11
Cooling Adaptive
Overall dimensions, WxLxH, mm 144х388х332
Protection rate IP33
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

Digital TIG welding inverter PATON StandardTIG-270-400V - for TIG welding of stainless steel products, the compounds of alloyed steels and non-ferrous metals, a constant current of 270 amperes. Also, the apparatus is operating in manual arc (MMA) and semi-automatic welding (MIG/MAG, as a current source in the composition with an external feeder). StandardTIG-270-400V model has a maximum mobility, and sufficiently large functional. 270A nominal current, sufficient for any welding with coated electrodes with diameters from 1.6 mm to 6 mm, and semi-continuous welding wire of 0.6 to 1,2 mm. The apparatus unit integrated contactless arc ignition (oscillator) and PULSE function for all modes of welding.

Setup is easy and intuitive thanks to the LCD screen with a multilingual interface. PATON StandardTIG-270-400V is equipped with high-quality accessories from the German manufacturer ABICOR BINZEL.

Complete set
  • The welding unit
  • The shoulder-carry belt
  • The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
  • The operation manual
Testimonials
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 12…13
Rated welding current (A) 270
Maximum operating current, A 350
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 270
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,2
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/75
Rated power consumption, kVA 7,9-8,6
Maximum consumption,power kVA 11
Cooling Adaptive
Overall dimensions, WxLxH, mm 144х388х332
Protection rate IP33
