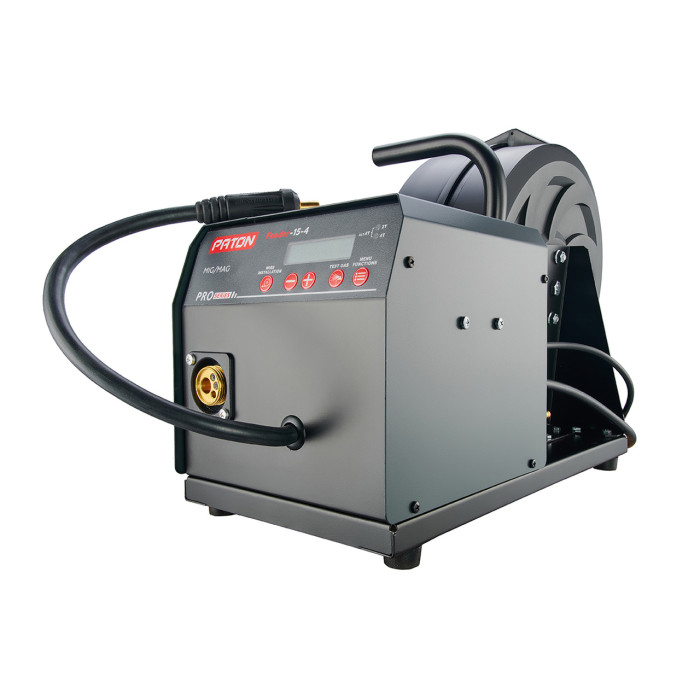

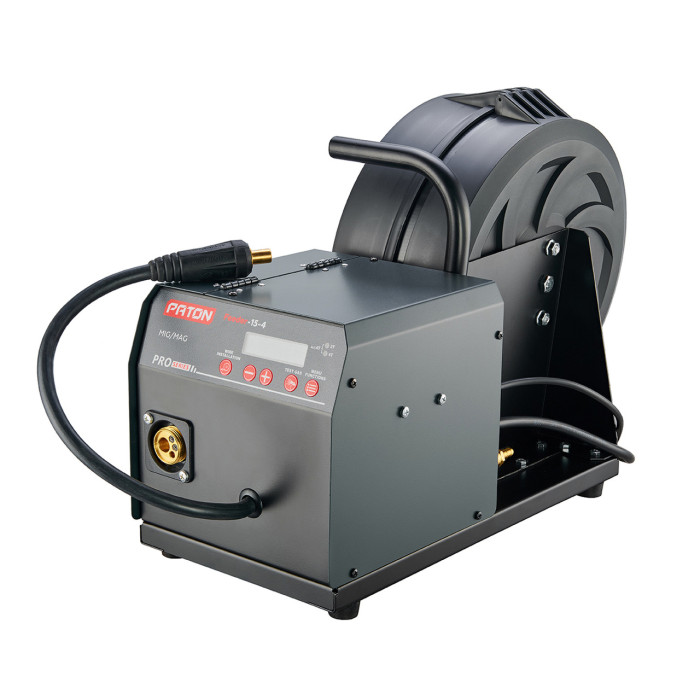

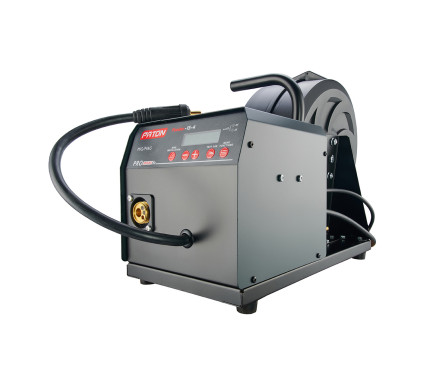

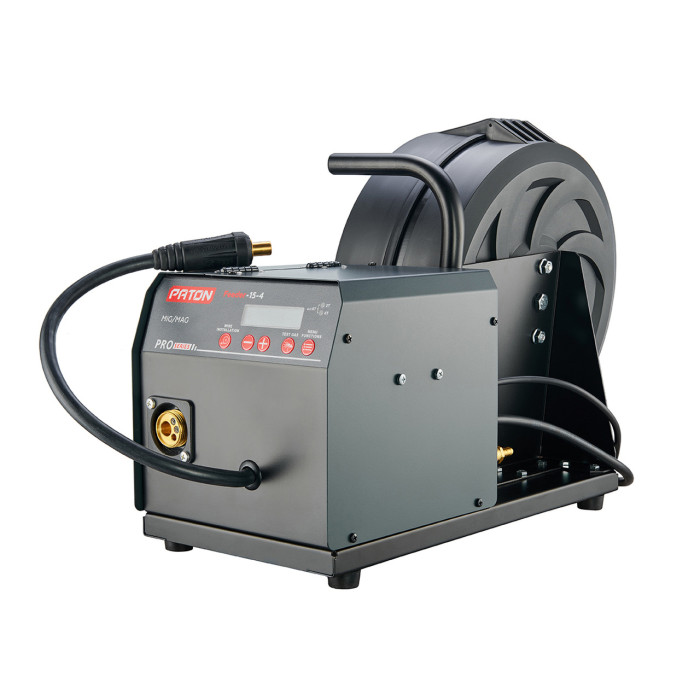

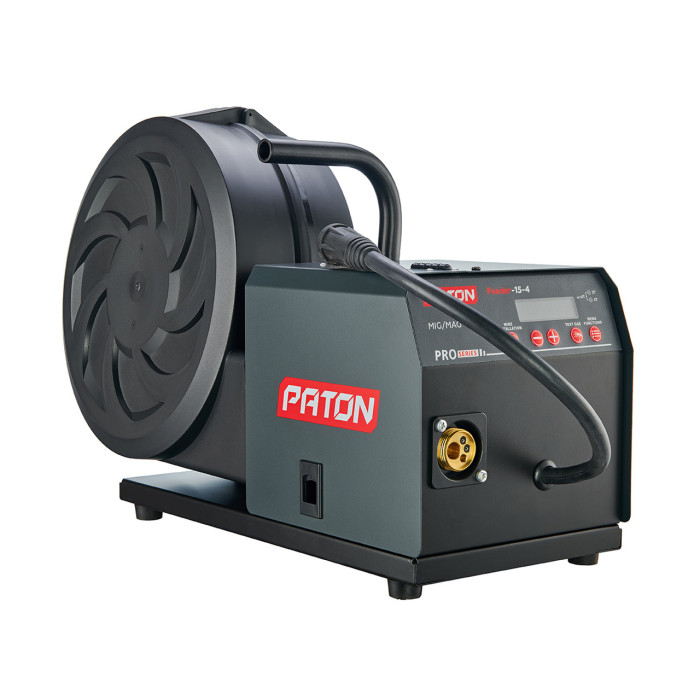

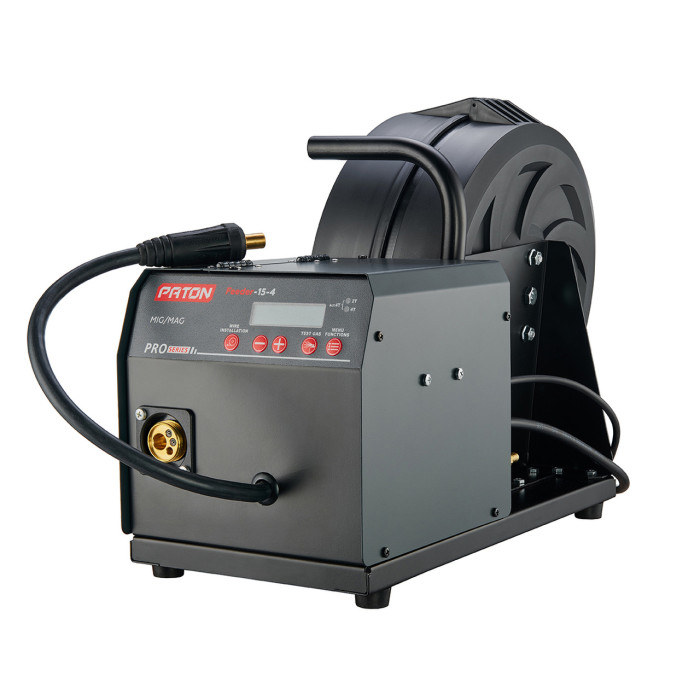

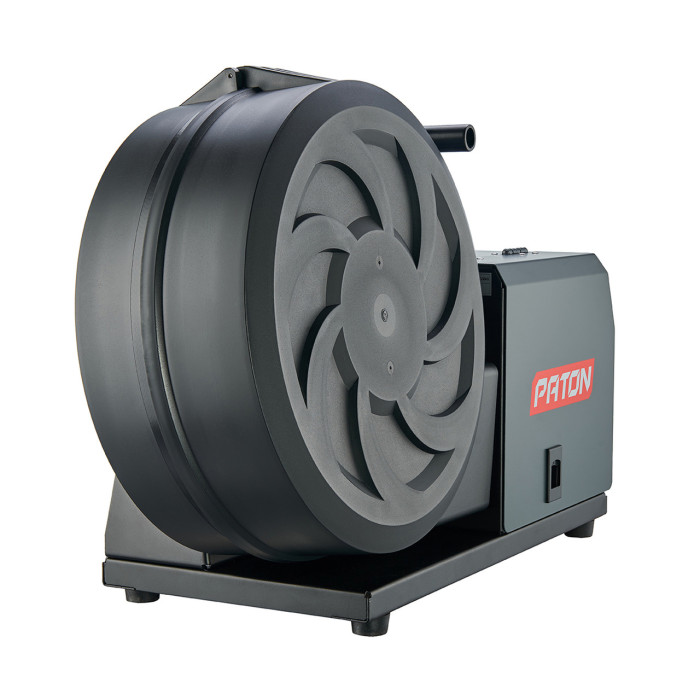

PATON™ Feeder-15-4 wire feeder (4th generation)

PATON Feeder-15-4- is designed for operation in semi-automatic welding in part with an external source of welding current. supply unit provides a stabilized solid or feeds the cored wire into the weld pool. PATON Feeder-15-4 inverter has its own power source for the motor, the protective gas supply valve and a control circuit, and also provided with a powerful and high-quality metal chetyrehrolikovym mechanism with hermetic motor. To connect the welding torch using the universal Euroconnector KZ-2, allowing further connect the burner from other manufacturers. During operation of the supply unit, its built-in digital control board receives signals independently with connector KZ-2 and starts the welding process with the characteristics according to the set parameters. The system provides control of the engine speed feeding. Feeder-15-4 fully optimized to work with PATON production sources up to 630A, as the main connectors and installation are already provided for in the design of the device.
