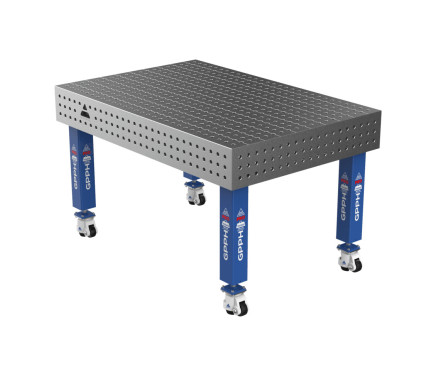

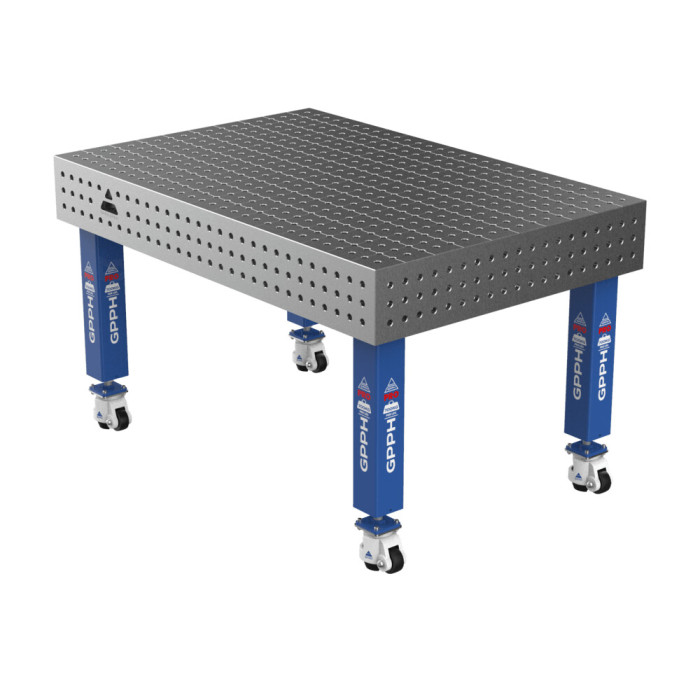

Welding Table PRO on Wheels 1500x1000 mm fi16 mm Grid 50x50 mm

Technical data:

• tabletop material: steel S355J2+N
• tabletop thickness: 15 mm
• stiffening ribs: placed on average every 400 mm
• leg profile: 100x100x4 mm
• load capacity: 700 kg per leg (max. 5600 kg for table with eight legs)
• side walls: height 200 mm, tolerance deviation ±0.3°
• hole system: Ø16 in a 50x50 mm grid
• flatness tolerance: ≤ 0.3 mm over the entire tabletop surface
• milled tabletop edges
• milled and chamfered holes
• chamfered holes underneath
