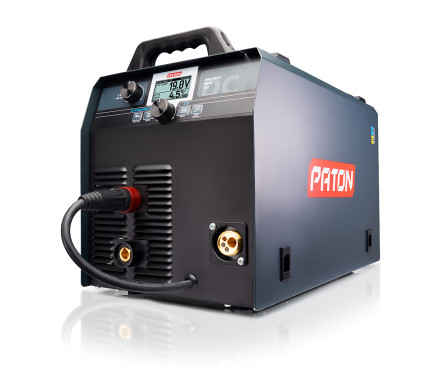

PATON™ StandardMIG-270-400V

Code: 4013554
Code: 4013554
In Stock
  • 29999 грн
Pay in installments
2499 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 12,0 … 13,0
Rated welding current (A) 270
Maximum operating current, A 350
Operating load factor 60%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 270
Limits of regulation of speed of giving of a wire, m / min. 2,0 … 16
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Number of rollers of the wire feed mechanism 2
Weight of the coil no more, kg 15
Pulse modes during welding MMA: 0,2...500Hz; TIG: 0,2...500Hz; MIG/MAG: 5...500Hz
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 7,9-8,6
Maximum consumption,power kVA 11
Cooling Adaptive
Overall dimensions, WxLxH, mm 310х620х460
Weight, kg 27,6
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

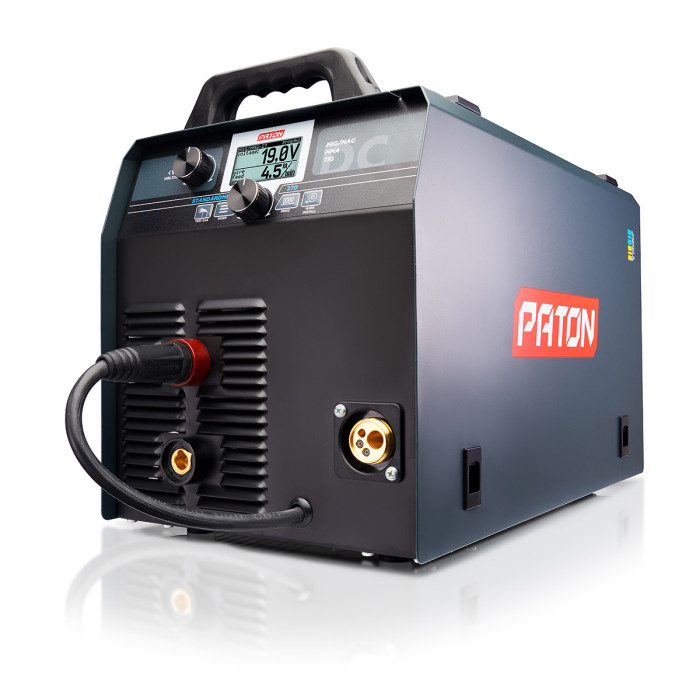

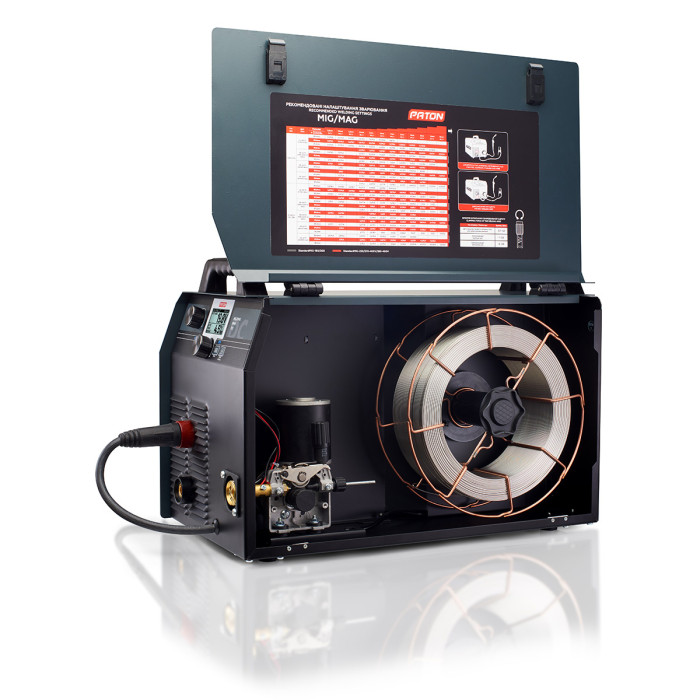

Digital semiautomatic inverter PATON StandardMIG-270 -  is intended for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG on a direct current in a medium and shielding gas mixtures. The device StandardMIG-270 is implemented fully digital way to manage, thereby ensuring its versatility and ample opportunity to fine tune the welding conditions. Issue unit 270A to the rated current, enables any working electrodes with diameters from 1.6 mm to 6 mm (including refractory) and a solid welding wire with diameters from 0.6 mm to 1.2 mm. Separate closed compartment for welding wire improves its protection against dust and other contaminants, as well as its construction involves the installation of the wire coils weighing up to 15 kg.

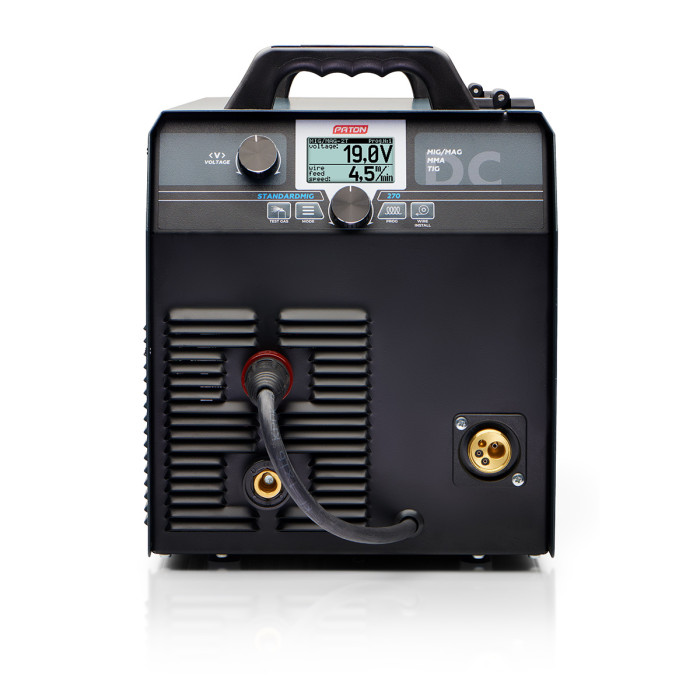

PATON StandardMIG-270 equipped with a high-quality metal wire feeder with a strong hermetic motor, a universal connector KZ-2 type ""EURO"" allows connecting welding torch from a wide range of manufacturers. StandardMIG-270, in conjunction with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen machine is easy and convenient to set up a solution to any problem. The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG/MAG and MMA modes.

Recommended parameters for beginner welders
Complete set
  • Welding inverter
  • Branded PATON ™ corrugated box
  • Welding torch ABICOR BINZEL ABIMIG 255
  • Electrode holder ABICOR BINZEL DE2300
  • Ground terminal ABICOR BINZEL MK300
  • Set of rollers for 4 wire diameters
  • Connection for quick connection of gas hose
  • Operating manual

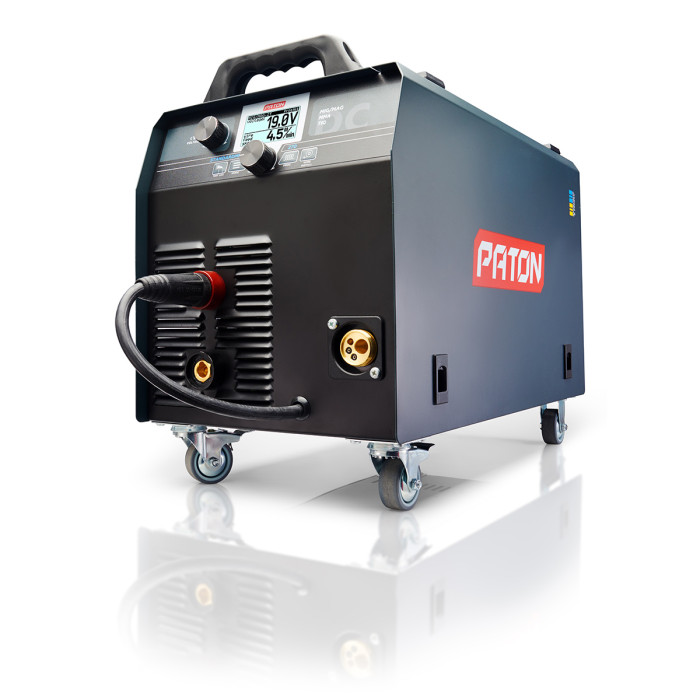

  • Set of wheels for installation on the inverter
