PATON™ StandardMIG-200

Code: 4005039
Code: 4005039
In Stock
  • 15499 грн
Pay in installments
1291 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 25 … 28
Rated welding current (A) 200
Maximum operating current, A 270
Operating load factor 45%
Power supply voltage range (V) 160-260
Welding current control range (A) 10 - 200
Limits of regulation of speed of giving of a wire, m / min. 2,0 … 16
Diameter of a stick electrode, mm 1,6-5
Diameter of solid welding wire, mm 0,6 - 1
Weight of the coil no more, kg 5
Warranty period, month 60
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12 / 75
Arc ignition voltage, V 110
Rated power consumption, kVA 5,5-6,1
Maximum consumption,power kVA 8
Cooling Forced
Overall dimensions, WxLxH, mm 245х420х298
Gross weight, kg 17
Weight, kg 11,2
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

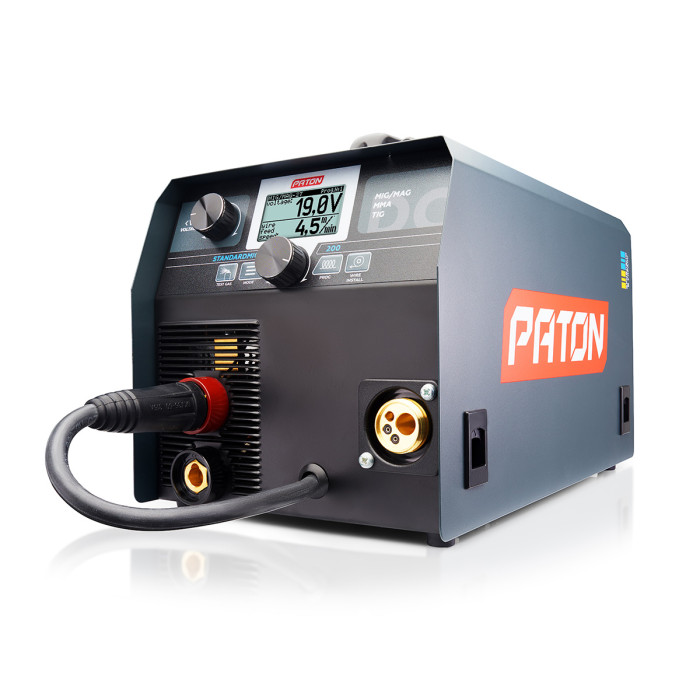

Digital semiautomatic inverter PATON StandardMIG-200 -  is intended for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG on a direct current in a medium and shielding gas mixtures. The device StandardMIG-200 is implemented fully digital way to manage, thereby ensuring its versatility and ample opportunity to fine tune the welding conditions. Issue unit rated current of up to 200A, enables any working electrodes with diameters from 1.6 mm to 4 mm and a solid welding wire with diameters from 0.6 mm to 1.0 mm. Separate closed compartment for welding wire improves its protection against dust and other contaminants.

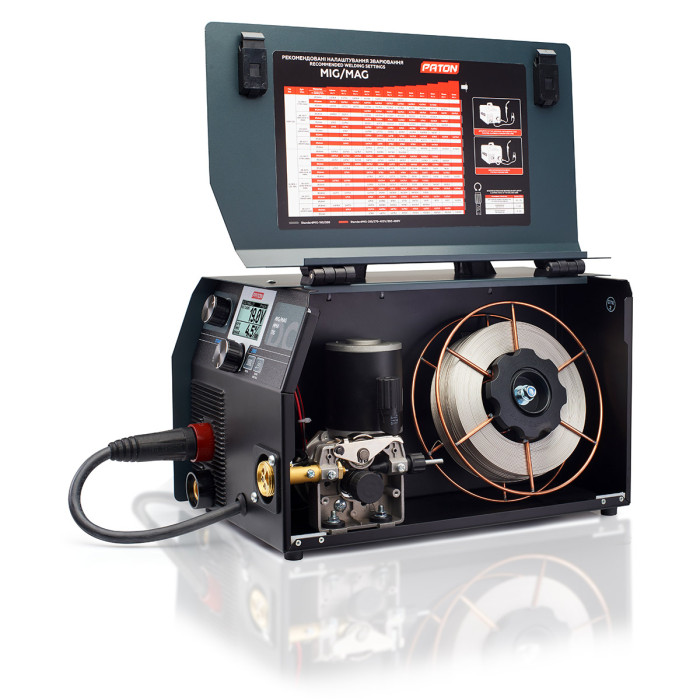

PATON StandardMIG-200 equipped with a high-quality metal wire feeder with a strong hermetic motor, a universal connector KZ-2 type ""EURO"" allows connecting welding torch from a wide range of manufacturers. StandardMIG-200, in conjunction with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen machine is easy and convenient to set up a solution to any problem. The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG/MAG and MMA modes.

Recommended parameters for beginner welders

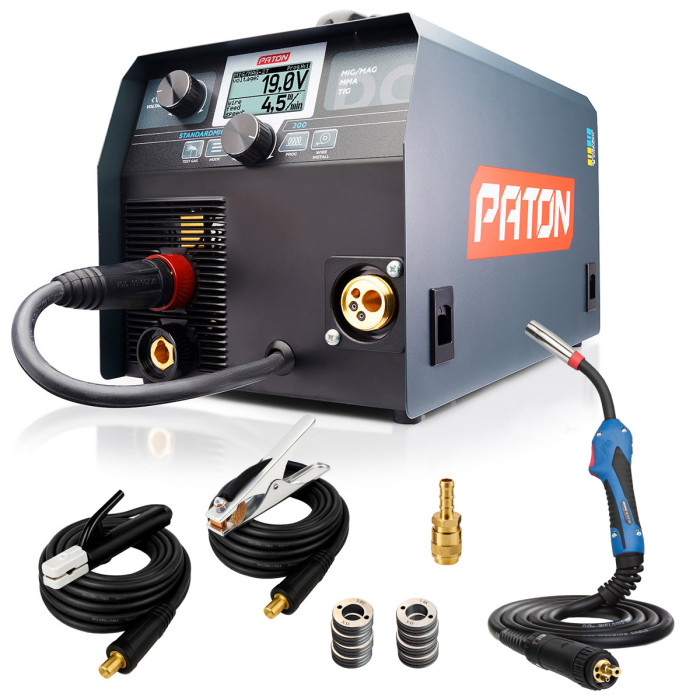

Complete set
  • Welding machine
  • Branded corrugated box PATON™
  • Welding torch Abicor Binzel ABIMIG 155
  • Electrode holder Abicor Binzel DE2200
  • Earth terminal Abicor Binzel MK300
  • Roll kits for 4 wire diameters
  • Gas hose quick coupling
  • User's manual
Additional materials
Testimonials
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 25 … 28
Rated welding current (A) 200
Maximum operating current, A 270
Operating load factor 45%
Power supply voltage range (V) 160-260
Welding current control range (A) 10 - 200
Limits of regulation of speed of giving of a wire, m / min. 2,0 … 16
Diameter of a stick electrode, mm 1,6-5
Diameter of solid welding wire, mm 0,6 - 1
Weight of the coil no more, kg 5
Warranty period, month 60
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12 / 75
Arc ignition voltage, V 110
Rated power consumption, kVA 5,5-6,1
Maximum consumption,power kVA 8
Cooling Forced
Overall dimensions, WxLxH, mm 245х420х298
Gross weight, kg 17
Weight, kg 11,2
Protection rate IP21
