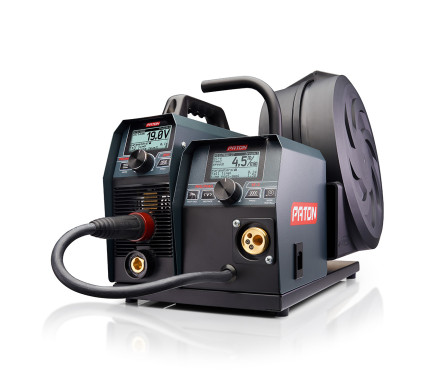

PATON™ ProMIG-200-15-2

Code: 4009846
Code: 4009846
In Stock
  • 19999 грн
  • 17999 грн
Pay in installments
1666 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 25 … 28
Rated welding current (A) 200
Maximum operating current, A 270
Operating load factor 70%
Power supply voltage range (V) 160-260
Welding current control range (A) 10 - 200
Diameter of a stick electrode, mm 1,6-4
Diameter of solid welding wire, mm 0,6 - 1
Number of rollers of the wire feed mechanism 2
Pulse modes during welding MMA/TIG/MIG/MAG
Warranty period, month 60
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12 / 75
Arc ignition voltage, V 110
Rated power consumption, kVA 5,5-6,1
Maximum consumption,power kVA 8
Cooling Adaptive
Overall dimensions, WxLxH, mm 260х360х270
Gross weight, kg 19
Weight, kg 10,6
Protection rate IP33
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

Digital semiautomatic inverter PATON ProMIG-200-15-2 - is a device for professional use, designed for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG DC, in shielding gases and mixtures thereof. In ProMIG-200-15-2 machine has an all-digital way to manage, thereby ensuring its versatility and opportunities to fine tune the welding conditions. Expectancy increased load on the rated current to 200A, allows any electrode diameter from 1.6 mm to 5 mm, and semi-solid welding wire with a diameter of 0.6 to 1.0 mm. Due doublecase execution, a current source can be easily separated from the wire supply unit, which greatly improves the portability and usability in MMA and TIG modes.

PATON ProMIG-200-15-2 equipped quality metal wire feeder with a strong hermetic motor, a universal connector KZ-2 type ""EURO"" allows connecting welding torch from a wide range of manufacturers. Powerful holder allows the welding wire coils weighing up to 15 kg. Model ProMIG-200-15-2 in conjunction with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen machine is easy and convenient to set up a solution to any problem. The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG / MAG and MMA modes.

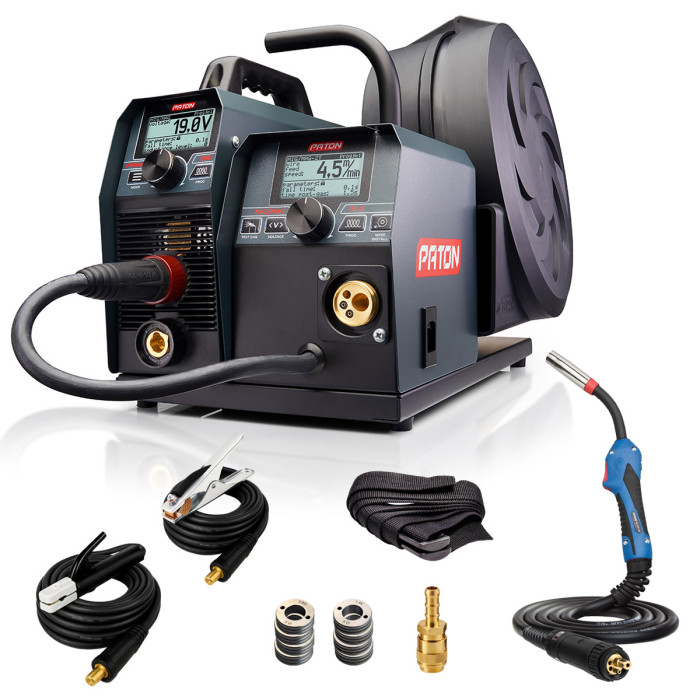

Complete set
  • The welding unit
  • The welding wire feeding unit (rollers for 0.6 -0.8 mm and 1.0 -1.2 mm)
  • The shoulder-carry belt
  • PATON™ branded corrugated box
  • The semi-automatic ABIMIG A155 LW welding torch with a cable 3 m in length
  • The welding cable 3 m in length with an Abicor Binzel DE2200 electrode holder
  • The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
  • The quick-release nipple for a gas hose
  • The operation manual
