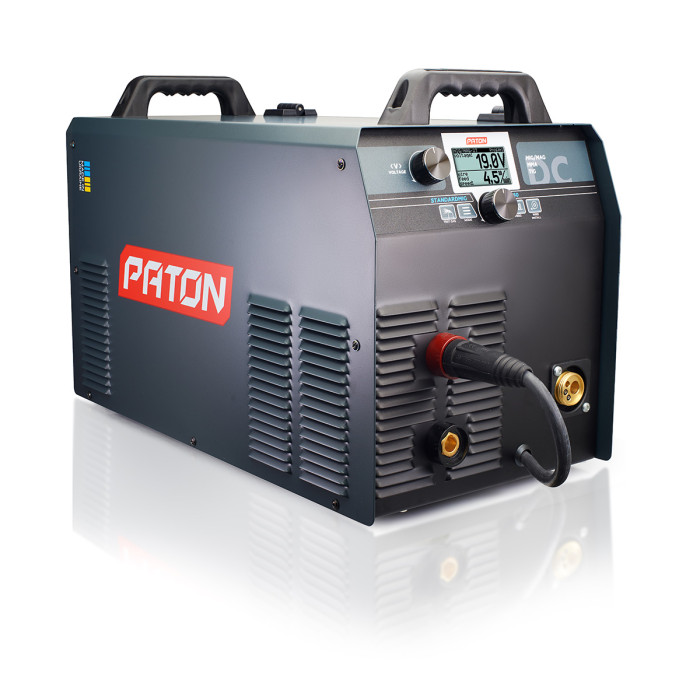

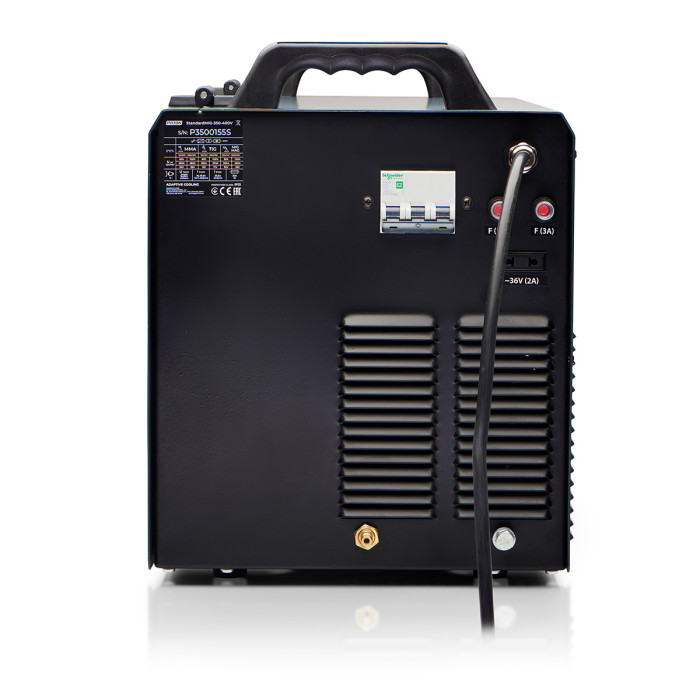

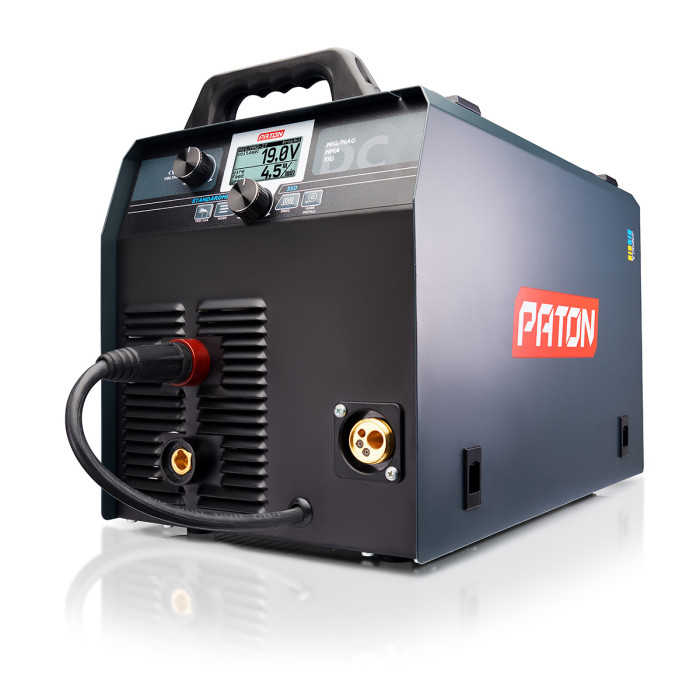

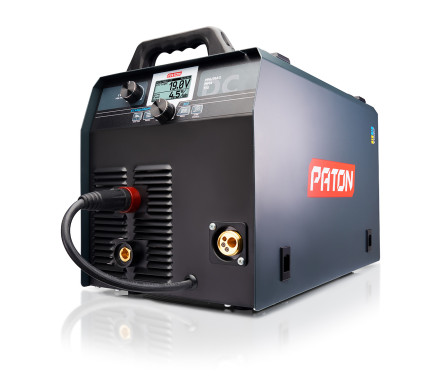

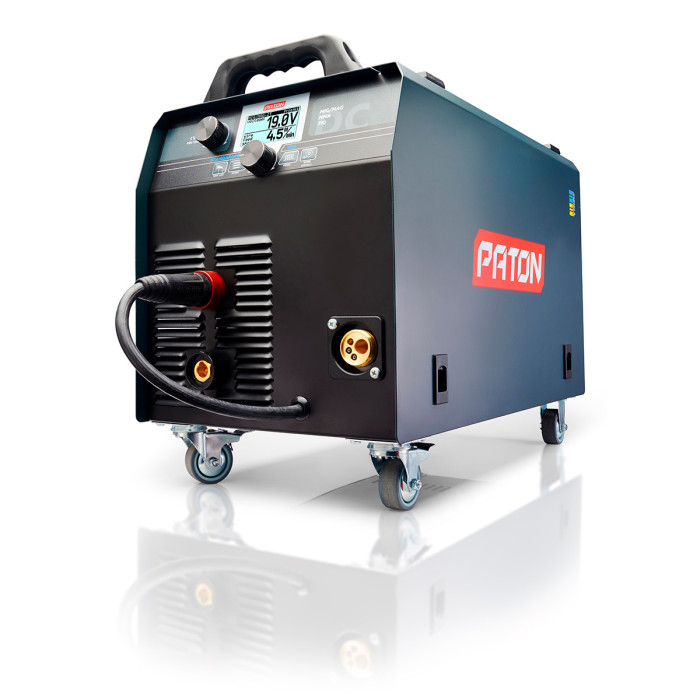

PATON™ StandardMIG-350-400V

Code: 4013439
Code: 4013439
In Stock
  • 35999 грн
Pay in installments
2999 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16,0 … 18,0
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 60%
Power supply voltage range (V) ±15%
Welding current control range (A) 16 - 350
Limits of regulation of speed of giving of a wire, m / min. 2,0 … 16
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,6
Number of rollers of the wire feed mechanism 4
Weight of the coil no more, kg 15
Pulse modes during welding MMA: 0,2...500Hz; TIG: 0,2...500Hz; MIG/MAG: 5...500Hz
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 7,9-8,6
Maximum consumption,power kVA 11
Cooling Adaptive
Overall dimensions, WxLxH, mm 310х620х460
Weight, kg 27,7
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

The PATON StandardMIG-350  is the device of single-case type of execution intended for semi-automatic welding ("MIG / MAG"), manual arc welding ("MMA"), argon arc welding ("TIG") by a direct current in the environment.

The StandardMIG-350 implements a fully digital control method, which ensures its versatility and extensive capabilities in fine-tuning welding modes. Rated current up to 350A allows to work with any electrodes with a diameter from 1,6 mm to 6 mm (including refractory) and a continuous welding wire with a diameter from 0,6 mm to 1,4 mm.

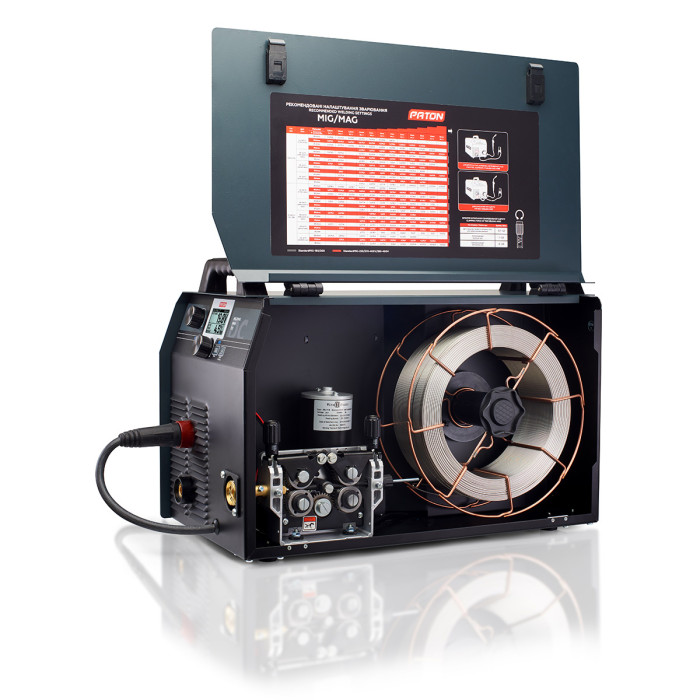

A separate closed compartment for welding wire increases its protection against dust and other contaminants, and is designed to install coils with wire weighing up to 15 kg. PATON StandardMIG-350 is equipped with a high-quality metal 4-roller wire feed mechanism with a powerful sealed motor, and a universal connector KZ-2 type "EURO" allows you to connect welding torches from a wide range of manufacturers.

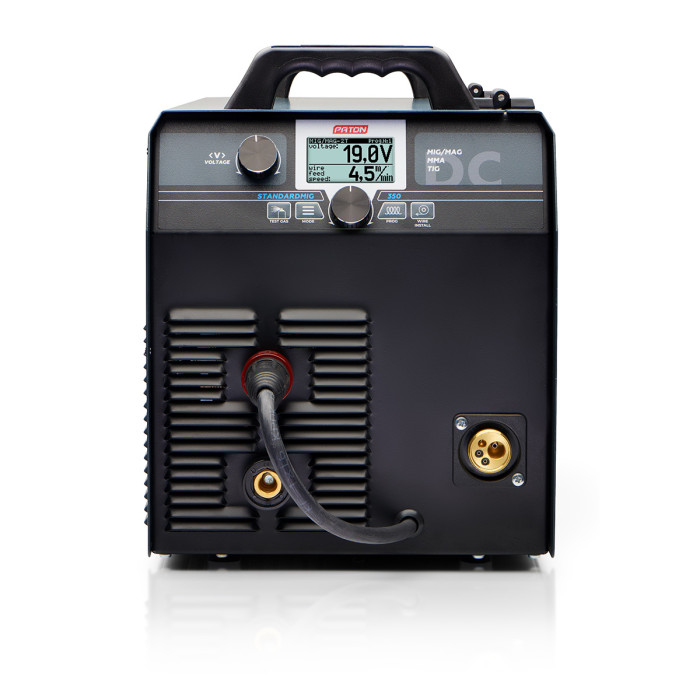

The StandardMIG-350, combined with high power and performance, has low weight and dimensions. And thanks to the LCD screens, the device is easy and convenient to configure to solve any problem. MAG and MMA.

Recommended parameters for beginner welders
Complete set
  • The welding unit
  • The shoulder-carry belt
  • Welding semi-automatic torch ABIMIG 305 LW, 5 м.
  • PATON™ branded plastic case
  • The welding cable 3 m in length with an Abicor Binzel DE2300 electrode holder
  • The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
  • The operation manual
Testimonials
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16,0 … 18,0
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 60%
Power supply voltage range (V) ±15%
Welding current control range (A) 16 - 350
Limits of regulation of speed of giving of a wire, m / min. 2,0 … 16
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,6
Number of rollers of the wire feed mechanism 4
Weight of the coil no more, kg 15
Pulse modes during welding MMA: 0,2...500Hz; TIG: 0,2...500Hz; MIG/MAG: 5...500Hz
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 7,9-8,6
Maximum consumption,power kVA 11
Cooling Adaptive
Overall dimensions, WxLxH, mm 310х620х460
Weight, kg 27,7
Protection rate IP21
