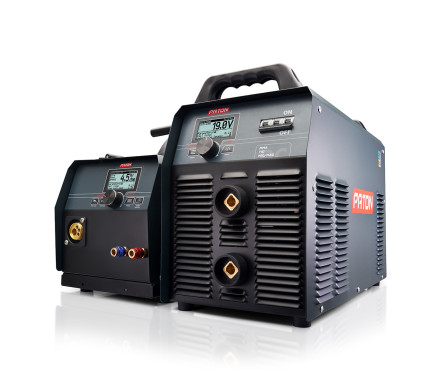

PATON™ ProMIG-500-15-4-400V W

Code: 4014450
Code: 4014450
In Stock
  • 56999 грн
Pay in installments
4749 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 33 ... 35
Rated welding current (A) 500
Maximum operating current, A 630
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 15 - 500
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,6
Pulse modes during welding MMA / TIG / MIG / MAG
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12/90
Arc ignition voltage, V 110
Rated power consumption, kVA 22,6-25
Maximum consumption,power kVA 28,9
Cooling Adaptive
Weight, kg 31,2
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

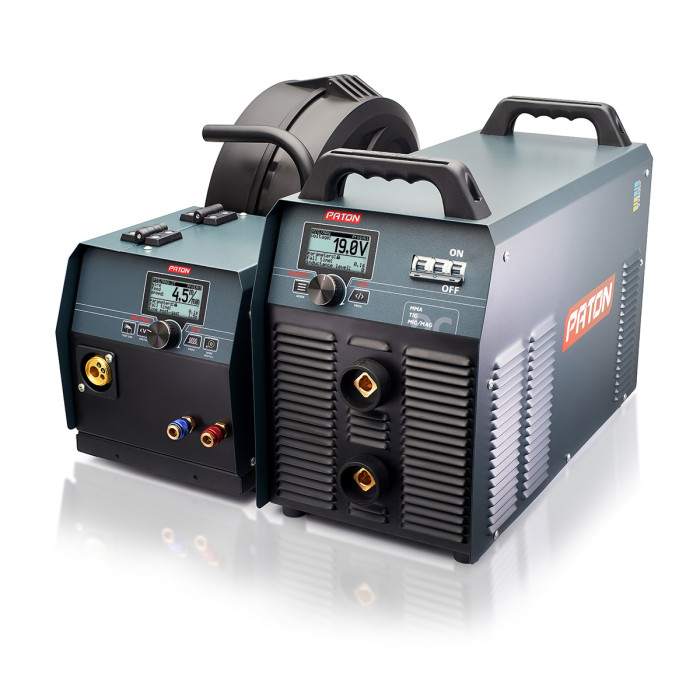

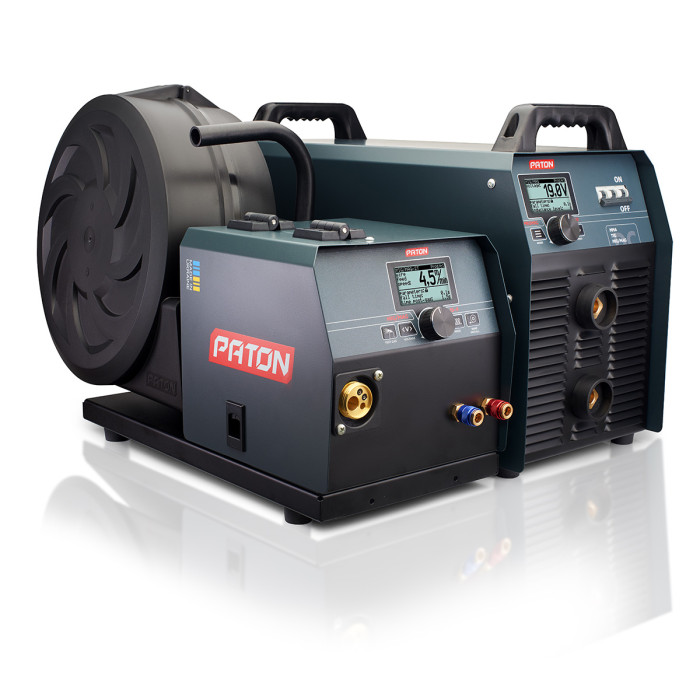

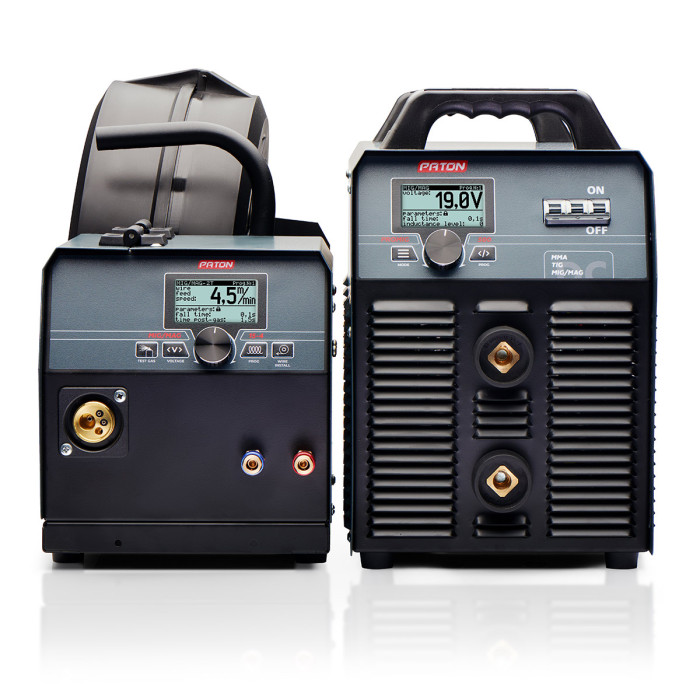

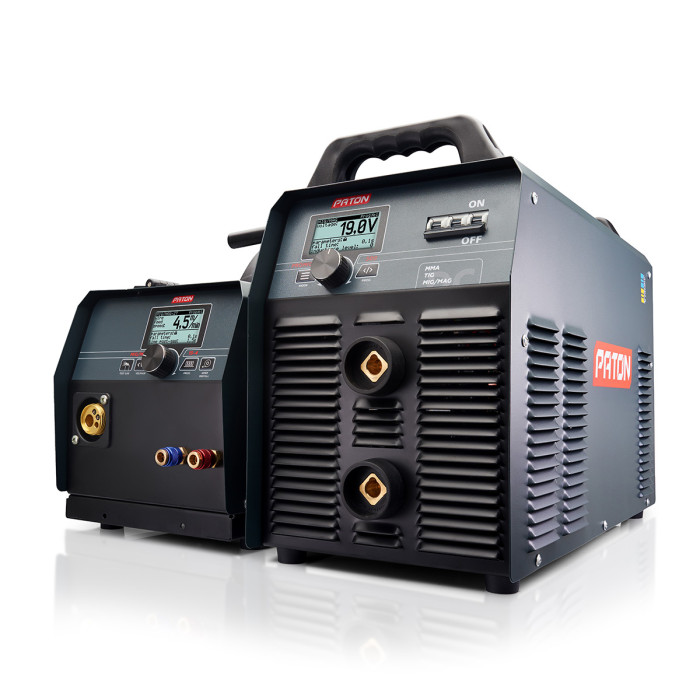

Inverter digital semi-automatic PATON ProMIG-500-15-4 W is a device for professional use, designed for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG DC, permanent shaking The device ProMIG-500-15-4 W implemented a fully digital method of control, due to which its multifunctionality and wide possibilities in precise adjustment of welding modes are ensured. Increased load duration on the nominal current up to 500А, allows working with any electrodes with a diameter from 1.6 mm to refractory 6 mm, as well as semi-automatic welding with a solid wire with a diameter from 0.6 to 1.6 mm. Thanks to two-hull execution, the current source can be easily separated from the wire supply unit, which significantly increases the mobility and convenience of operation in MMA and TIG modes.

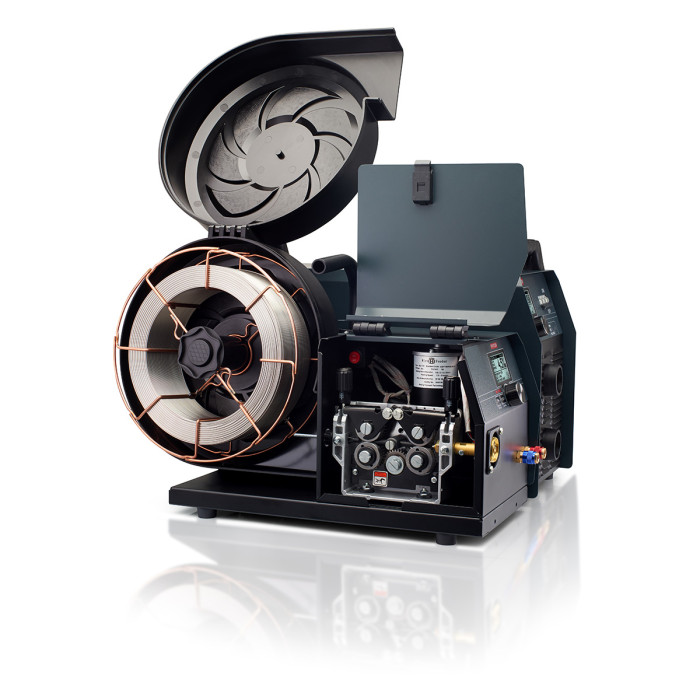

PATON ProMIG-500-15-4 W is equipped with a high-quality metal 4-roller wire feeding mechanism with a powerful sealed engine, and a universal connector of KZ-2 type "EURO" allows you to connect welding burners from a wide range of manufacturers. Powerful bracket for welding wire allows you to install coils weighing up to 15 kg. The ProMIG-500-15-4 W model, combined with high power and performance, has a small weight and overall dimensions. And thanks to LCD screens, the device is easy and convenient to configure to solve any problem.

Recommended parameters for beginner welders
Complete set
  • The welding unit
  • WIre feed mechanism15-4 500 PRO W
  • Copper cable (5 m) with ABICOR BINZEL (ground) terminal
  • Roll kits for 4 steel wire diameters and 2 aluminum wire diameters
  • Gas hose quick-disconnect fitting
  • Operation manual
  • PATON™ branded carton box
