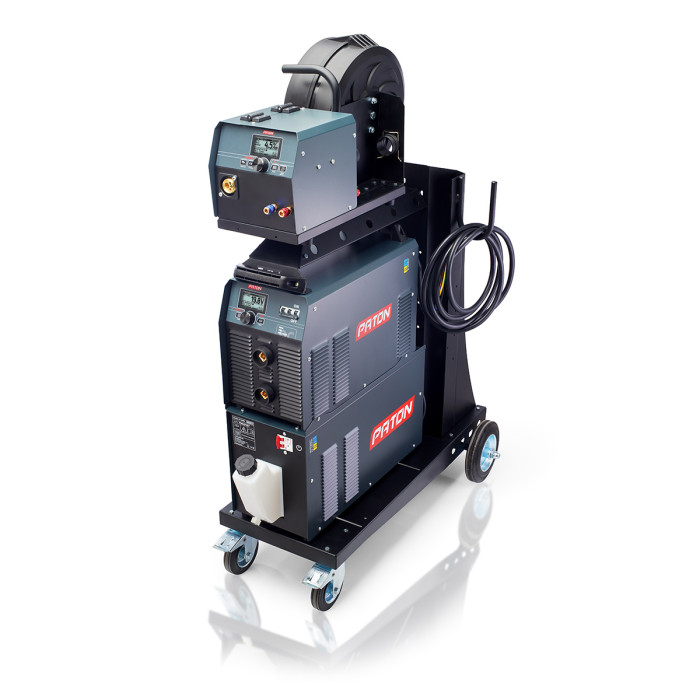

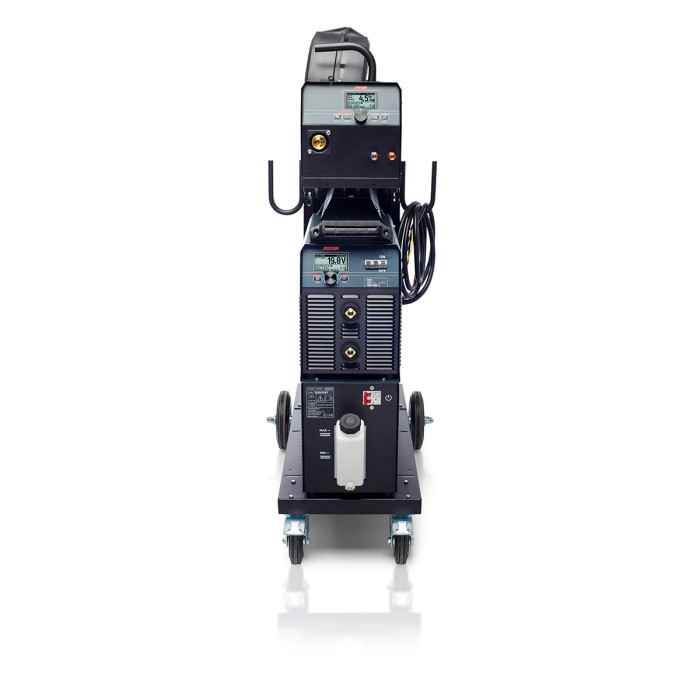

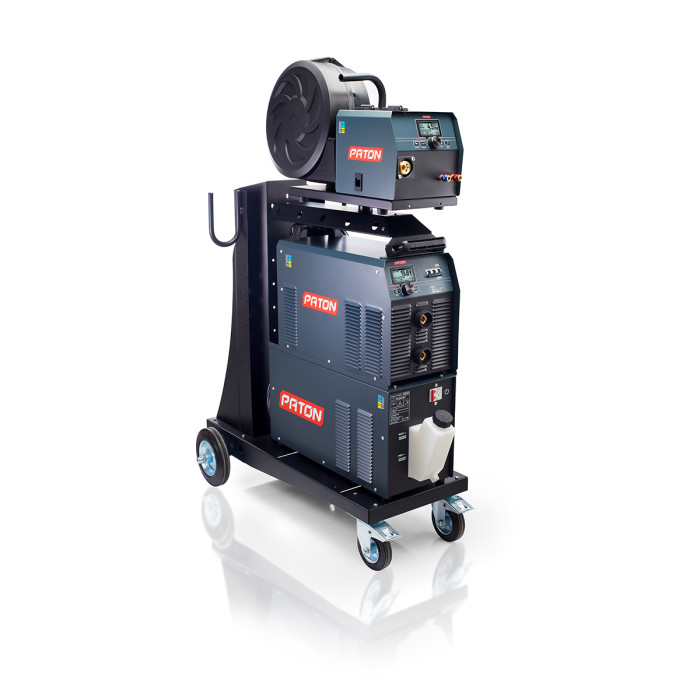

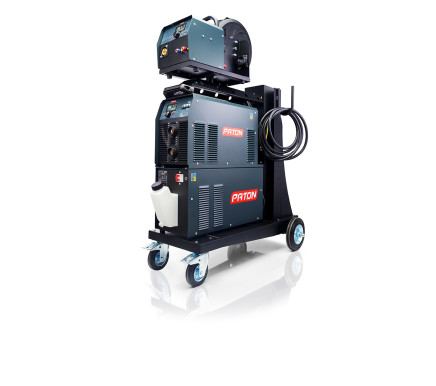

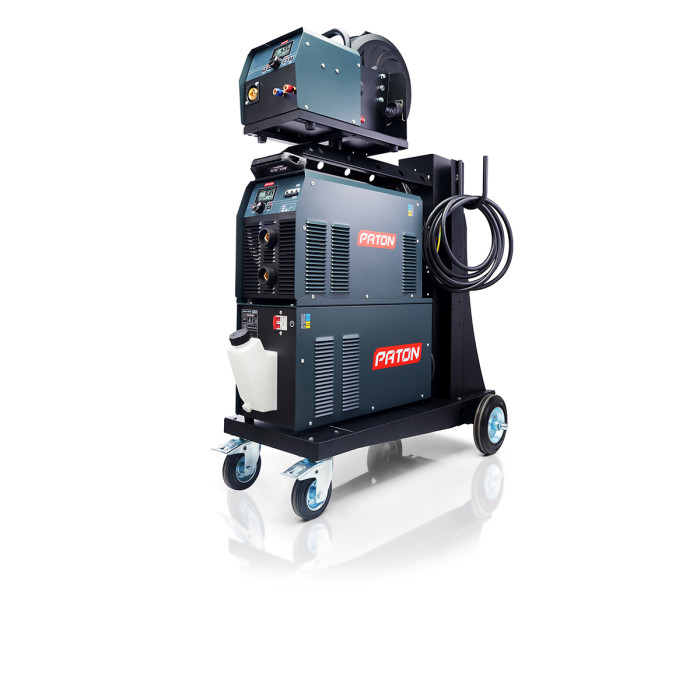

Welding set PATON™ ProMIG-500-15-4-400V WK

Code: 0030
In Stock
  • 84999 грн
Pay in installments
7083 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 33 ... 35
Rated welding current (A) 500
Maximum operating current, A 630
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 15 - 500
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,6
Pulse modes during welding MMA / TIG / MIG / MAG
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/90
Arc ignition voltage, V 110
Rated power consumption, kVA 22,6-25
Maximum consumption,power kVA 28,9
Cooling Adaptive
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

The PATON ProMIG-500-15-4 WK welding set is a complete solution for working with the PATON ProMIG-500-15-4 W semiautomatic device.

Inverter digital semi-automatic PATON ProMIG-500-15-4 WK  is a device for professional use, designed for semi-automatic welding (MIG/MAG), manual arc welding (MMA), and TIG DC, in shielding gases and mixtures thereof.  The device ProMIG-500-15-4 W implemented a fully digital method of control, due to which its multifunctionality and wide possibilities in precise adjustment of welding modes are ensured. Increased load duration on the nominal current up to 500А, allows working with any electrodes with a diameter from 1.6 mm to refractory 6 mm, as well as semi-automatic welding with a solid wire with a diameter from 0.6 to 1.6 mm. Thanks to the two-case design, the wire supply unit can be separated from the current source by means of communication cables of different lengths (1, 5, 10 m) at a considerable distance from the current source and more convenient to work on complex or bulky metal structures, as well as MMA and TIG.

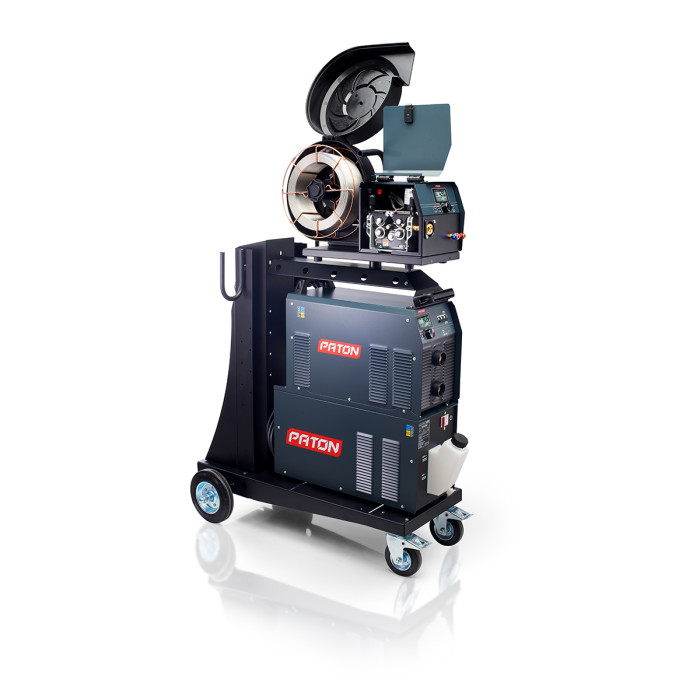

PATON ProMIG-500-15-4 WK is equipped with a high-quality metal 4-roller wire feeding mechanism with a powerful sealed engine, and a universal connector of KZ-2 type "EURO" allows you to connect welding burners from a wide range of manufacturers.  Also equipped with 4 connectors for a liquid cooling hose and a cable with power contacts. Powerful bracket for welding wire allows you to install coils weighing up to 15 kg. The ProMIG-500-15-4 W model, combined with high power and performance, has a small weight and overall dimensions. And thanks to LCD screens, the device is easy and convenient to configure to solve any problem.

PATON Cooler-7  is designed to provide excellent cooling accessories (welding torches, plasma torches), when operating with the welding apparatus and installations plasma cutting. The autonomous cooling unit has a liquid flow sensor, which protects the burner from combustion in the event of cessation of fluid circulation. Cooler-7 model provides a reliable cooling of the burner works at high currents (> 300A for semiautomatic and> 140A for TIG welding) and is an integral part of the welding equipment operating in these conditions. Cooler-7 accommodates up to 7 liters of coolant and provides its circulation in a closed system with a high capacity (liquid supply to a height of 10 meters) and productivity (up to 6.5 l / min).

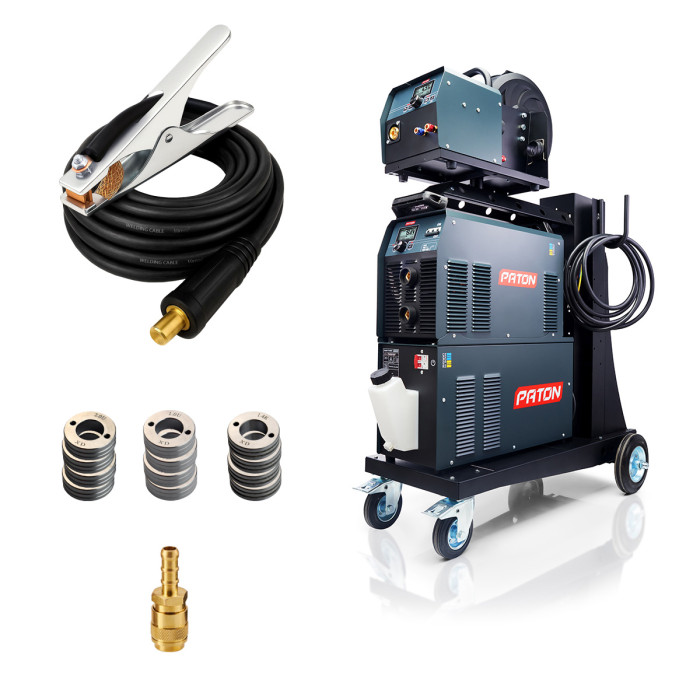

Complete set
  • Welding machine
  • Wire feeder
  • Autonomous cooling unit Cooler-7
  • Universal trolley PATON ™
  • Copper cable (5 m) with ABICOR BINZEL electrode holder
  • Copper cable (5 m) with ABICOR BINZEL {ground} terminal
  • Roll kits for 4 steel wire diameters and 2 aluminum wire diameters
  • Gas hose quick-disconnect fitting
  • ProMIG-500-15-4-400V Instruction Manual
  • Cooler-7 Instruction Manual
  • Shoulder Strap
  • Branded PATON ™ corrugated box
  • FOR FULL-TIME OPERATION OF THE DEVICES IN THE KIT IT IS NECESSARY TO BUY A KIT OF COMMUNICATION CABLES AND WELDING TORCH!
