PATON™ ProMIG-630-15-4-400V W

Code: 4014618
Code: 4014618
In Stock
  • 84999 грн
  • 72249 грн
Pay in installments
7083 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 42 ... 48
Rated welding current (A) 630
Maximum operating current, A 800
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 17 - 630
Diameter of a stick electrode, mm 1,6-8
Diameter of solid welding wire, mm 0,6 - 2
Pulse modes during welding MMA / TIG / MIG / MAG
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12/90
Arc ignition voltage, V 115
Rated power consumption, kVA 27,7-31,7
Maximum consumption,power kVA 39,6
Cooling Adaptive
Weight, kg 24,2
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

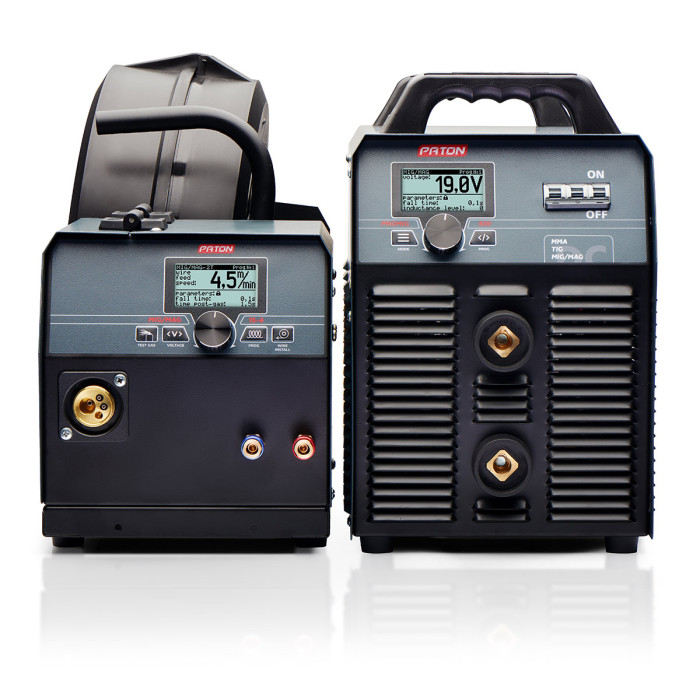

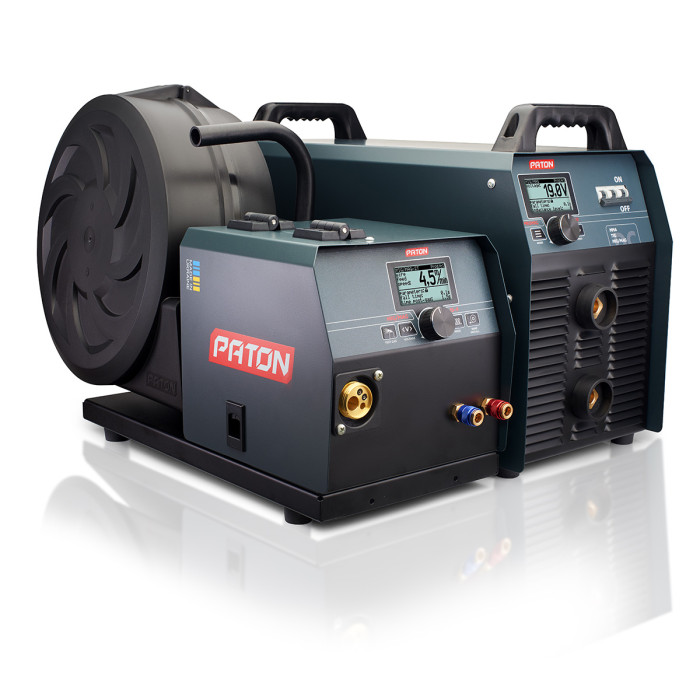

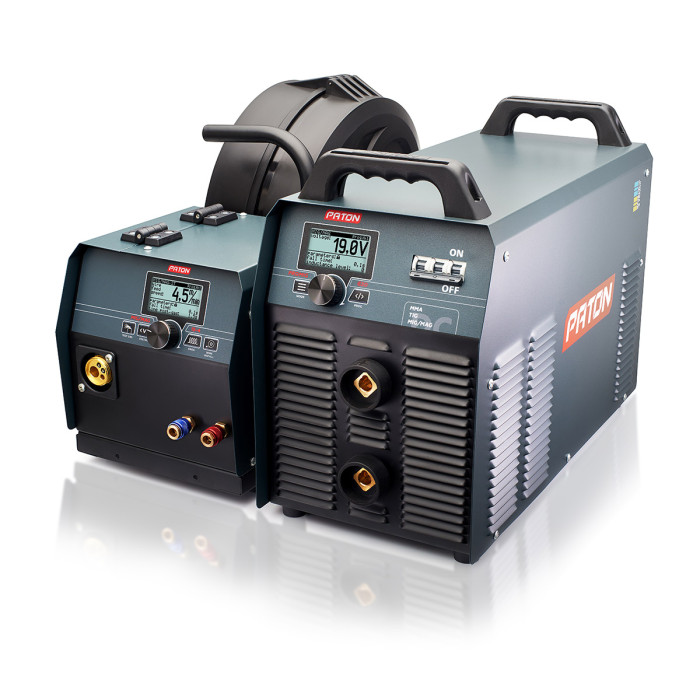

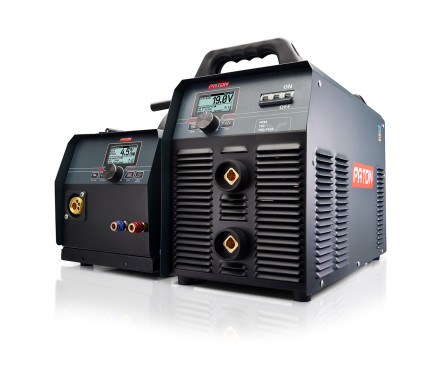

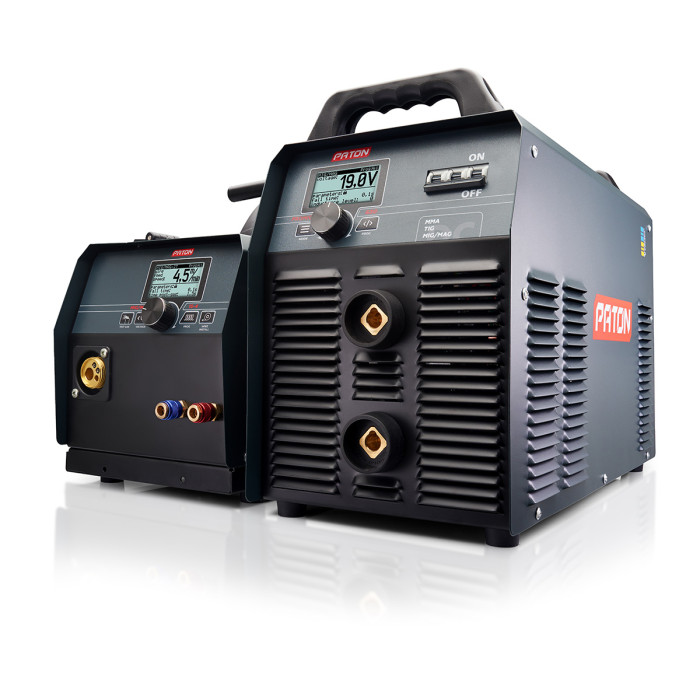

Digital semiautomatic inverter PATON ProMIG-630-15-4 W - is a device for professional use, designed for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG DC, in shielding gases and mixtures thereof. In ProMIG-630-15-4 W machine has an all-digital way to manage, thereby ensuring its versatility and opportunities to fine tune the welding conditions. Expectancy increased load on the rated current to 630A, allows any electrode diameter from 1.6 mm to 8 mm, and conduct semi-solid welding wire with a diameter of 0.6 to 2 mm. Due doublecase execution, a current source can be easily separated from the wire supply unit, which greatly improves the portability and usability in MMA and TIG modes.

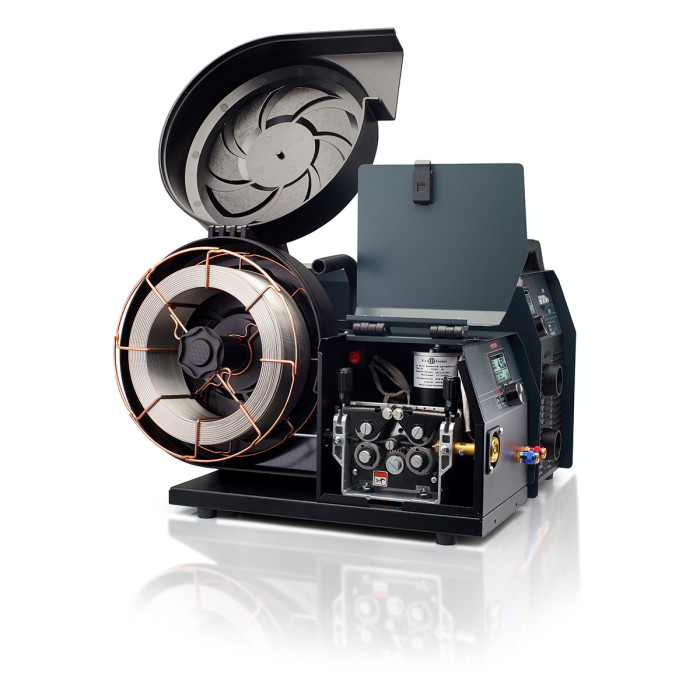

PATON ProMIG-630-15-4 W equipped quality metallic 4-wire feed roller mechanism with a strong hermetic motor and the universal connector KZ-2 type ""EURO"" allows connecting welding torch from a wide range of manufacturers. Powerful holder allows the welding wire coils weighing up to 15 kg.  It is also equipped with two connectors for connecting a liquid cooling hose and a cable with power contacts. Model ProMIG-630-15-4 W in conjunction with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen machine is easy and convenient to set up a solution to any problem. The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG / MAG and MMA modes.

Complete set
  • The welding unit
  • WIre feed mechanism Feeder15-4 W
  • Copper cable (5 m) with ABICOR BINZEL (ground) terminal
  • Roll kits for 4 steel wire diameters and 2 aluminum wire diameters
  • Gas hose quick-disconnect fitting
  • Operation manual
  • PATON™ branded carton box
