PATON EuroMIG

Code: 4015339
Code: 4015339
In Stock
  • 13999 грн
Pay in installments
1166 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Cooling Adaptive
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 17 … 20
Rated welding current (A) 150
Maximum operating current, A 200
Operating load factor 80%
Power supply voltage range (V) 160-260
Welding current control range (A) 8 - 150
Limits of regulation of speed of giving of a wire, m / min. 1,5 … 10
Diameter of a stick electrode, mm 1,6-4
Diameter of solid welding wire, mm 0,6 - 1
Weight of the coil no more, kg 5
Pulse modes during welding MMA; TIG; MIG/MAG
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12 / 75
Arc ignition voltage, V 110
Rated power consumption, kVA 3,8-4,4
Maximum consumption,power kVA 5,5
Overall dimensions, WxLxH, mm 390х194х295
Gross weight, kg 12,7
Weight, kg 9,2
Protection rate IP21
Show all specifications
Increased duty cycle - 80%
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

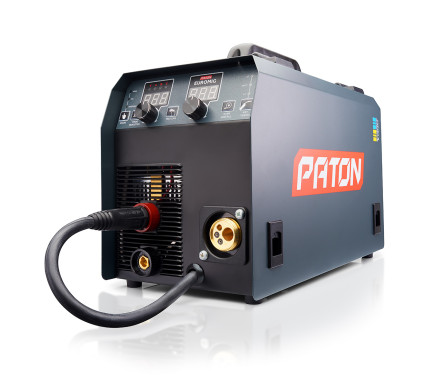

Digital semiautomatic inverter PATON EuroMIG - is intended for semi-automatic welding (MIG/MAG), manual arc welding (MMA), TIG on a direct current in a medium, and shielding gas mixtures. The device EuroMIG is implemented a fully digital way to manage, thereby ensuring its versatility and ample opportunity to fine tune the welding conditions. Issue unit 150A to the rated current enables any working electrodes with diameters from 1.6 mm to 4 mm and a solid welding wire with diameters from 0.6 mm to 1.0 mm. A separate closed compartment for welding wire improves its protection against dust and other contaminants.

PATON EurodMIG is equipped with a 2 roller metal wire feeder, and a universal connector KZ-2 type ""EURO"" allows connecting welding torch from a wide range of manufacturers. EuroMIG, in conjunction with high power and capacity, has a low weight and dimensions. The device comes with high-quality accessories, which allow you to start work in MIG/MAG and MMA modes immediately.

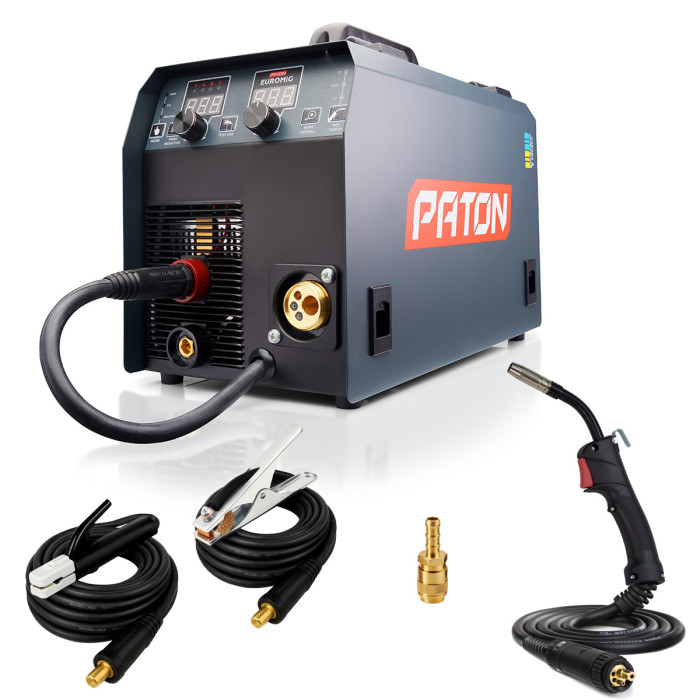

Complete set
  • Welding machine
  • Branded corrugated box PATON
  • MIG/MAG welding torch
  • Electrode holder
  • Earth terminal Abicor Binzel MK300
  • Gas hose quick coupling
  • User's manual
Testimonials
Specification
Cooling Adaptive
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 17 … 20
Rated welding current (A) 150
Maximum operating current, A 200
Operating load factor 80%
Power supply voltage range (V) 160-260
Welding current control range (A) 8 - 150
Limits of regulation of speed of giving of a wire, m / min. 1,5 … 10
Diameter of a stick electrode, mm 1,6-4
Diameter of solid welding wire, mm 0,6 - 1
Weight of the coil no more, kg 5
Pulse modes during welding MMA; TIG; MIG/MAG
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12 / 75
Arc ignition voltage, V 110
Rated power consumption, kVA 3,8-4,4
Maximum consumption,power kVA 5,5
Overall dimensions, WxLxH, mm 390х194х295
Gross weight, kg 12,7
Weight, kg 9,2
Protection rate IP21
