PATON™ MINI

Code: 20324743
Code: 20324743
In Stock
  • 4799 грн
Pay in installments
399 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 20
Rated welding current (A) 150
Maximum operating current, A 190
Operating load factor 45%
Power supply voltage range (V) 160-260
Welding current control range (A) 20 - 150
Diameter of a stick electrode, mm 1,6-4
Rated power consumption, kVA 4,4
Warranty period, month 36
«Hot-Start» Auto
«Arc-Force» Auto
«Anti-Stick» Auto
Idling voltage, V to 80
Arc ignition voltage, V 110
Maximum consumption,power kVA 5,5
Overall dimensions, WxLxH, mm 100х200х240
Gross weight, kg 6
Weight, kg 3,3
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

PATON MINI - this ergonomic device intended for manual welding (DC MMA). PATON MINI cope with a large number of tasks and satisfies the needs of both novice welders and experienced users, allowing you to work at a rated current of up to 150A. This is enough for comfortable work with any of the electrodes with a diameter of 1.6 mm to 4 mm. PATON MINI operates with a load of not less than 40%, which can solve most tasks in the household segment (small workshops, country farm, vehicle, etc.)

Digital control greatly simplifies the process of regulating the welding current and increases the convenience of setting up the machine.

In PATON MINI inverter is built to protect the unit from a low voltage, which improves the reliability of the device. Due to the increase in the frequency of the applied voltage to the transformer, it is several times lower than in the classic equipment. That is why PATON MINI R-4, having a small weight and dimensions, allows for easy and comfortable use.

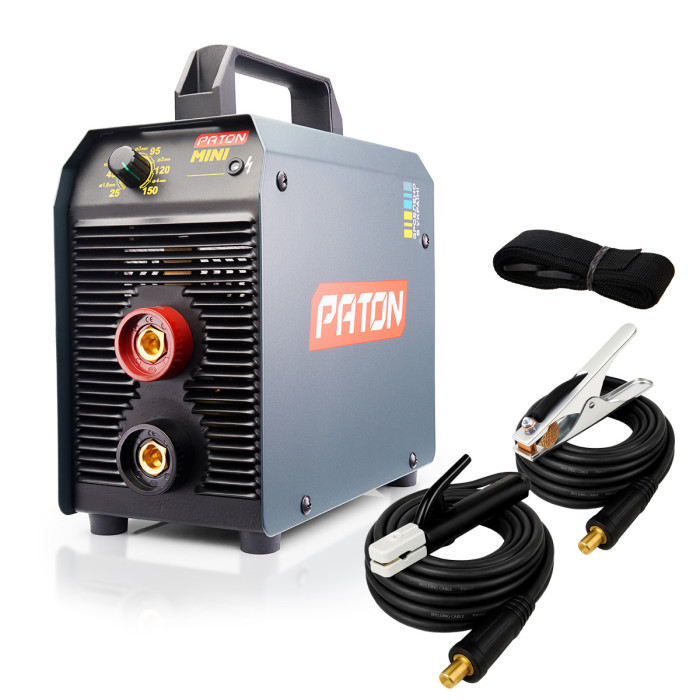

Complete set
  • The welding unit
  • The shoulder-carry belt
  • PATON™ branded corrugated box
  • The welding cable 3 m in length with an electrode holder
  • The welding cable 2 m in length with a grounding clamp
  • The operation manual
Testimonials
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 20
Rated welding current (A) 150
Maximum operating current, A 190
Operating load factor 45%
Power supply voltage range (V) 160-260
Welding current control range (A) 20 - 150
Diameter of a stick electrode, mm 1,6-4
Rated power consumption, kVA 4,4
Warranty period, month 36
«Hot-Start» Auto
«Arc-Force» Auto
«Anti-Stick» Auto
Idling voltage, V to 80
Arc ignition voltage, V 110
Maximum consumption,power kVA 5,5
Overall dimensions, WxLxH, mm 100х200х240
Gross weight, kg 6
Weight, kg 3,3
Protection rate IP21
