Specification
Non-contact ignition unit (oscillator) | + |
Rated input current from the mains, A | 20 |
Rated cutting current, A | 100 |
Maximum cutting thickness of metal, mm | 35 |
Rated power supply voltage, V | 380/400 |
Operating load factor | 50% |
Power supply voltage range (V) | 360-420 |
Operating air pressure range, MРa | 0,48-0,7 |
Welding current control range (A) | 35 - 100 |
Gas flow, l / min | not less than 180 |
Pilot arc | + |
Plasma ignition voltage, V | 270-310 |
Warranty period, month | 12 |
Idling voltage, V | - |
Rated power consumption, kVA | 13,2 |
Maximum consumption,power kVA | 16,5 |
Efficiency, % | 90 |
Cooling | forced |
Overall dimensions, WxLxH, mm | 225х560х440 |
Weight, kg | 25,8 |
Protection rate | IP23 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description
PATON StandardCUT-100 is designed for cutting metals and alloys with a plasma arc in the airflow. This "Standard" series unit, is a reasonable compromise between power, functionality, and small overall dimensions. Due to the high-frequency inverter, the unit has a smaller mass and dimensions as compared with the classical equipment.
A pneumatic system with two valves allows soft ignition reduced spattering and increases the resource torch consumables.
Complete set
- Plasma cutting unit with network cable, 3 m
- Branded carton box PATON™
- Quick lifting for compressed air
- Operating Manual
Specification
Non-contact ignition unit (oscillator) | + |
Rated input current from the mains, A | 20 |
Rated cutting current, A | 100 |
Maximum cutting thickness of metal, mm | 35 |
Rated power supply voltage, V | 380/400 |
Operating load factor | 50% |
Power supply voltage range (V) | 360-420 |
Operating air pressure range, MРa | 0,48-0,7 |
Welding current control range (A) | 35 - 100 |
Gas flow, l / min | not less than 180 |
Pilot arc | + |
Plasma ignition voltage, V | 270-310 |
Warranty period, month | 12 |
Idling voltage, V | - |
Rated power consumption, kVA | 13,2 |
Maximum consumption,power kVA | 16,5 |
Efficiency, % | 90 |
Cooling | forced |
Overall dimensions, WxLxH, mm | 225х560х440 |
Weight, kg | 25,8 |
Protection rate | IP23 |

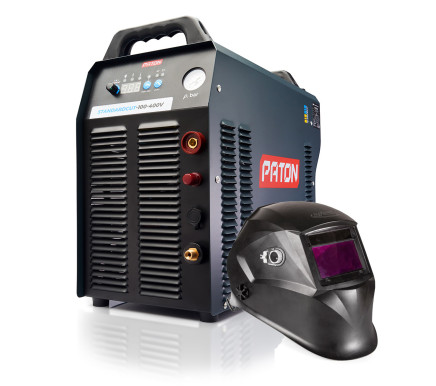

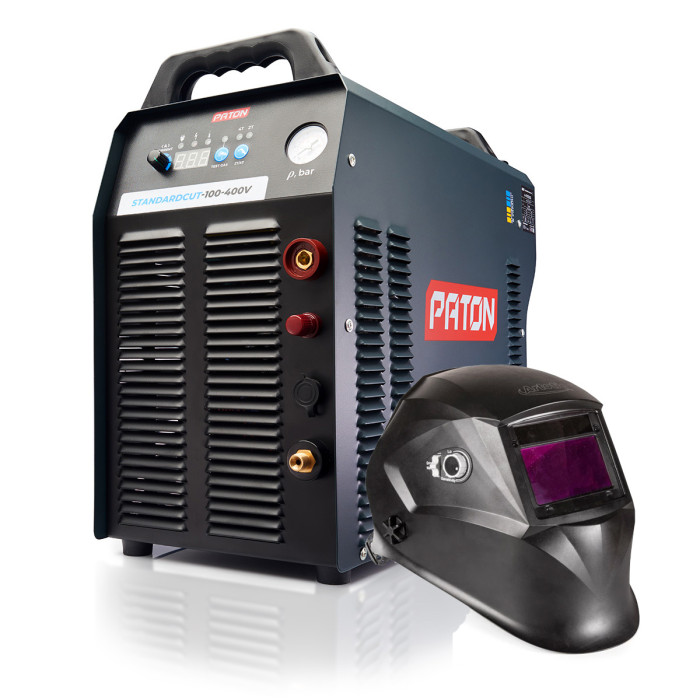

PATON™ StandardCUT-100-400V without plasmatron (WA)
Code: 1063010011
In Stock
- 37999 грн
