| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 12…13 |
| Rated welding current (A) | 270 |
| Maximum operating current, A | 350 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 14 - 270 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Diameter of solid welding wire, mm | 0,6 - 1,2 |
| Pulse modes during welding | MMA / TIG / MIG / MAG |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 7,9-8,6 |
| Maximum consumption,power kVA | 11 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 360х540х400 |
| Gross weight, kg | 32 |
| Weight, kg | 27,2 |
| Protection rate | IP33 |

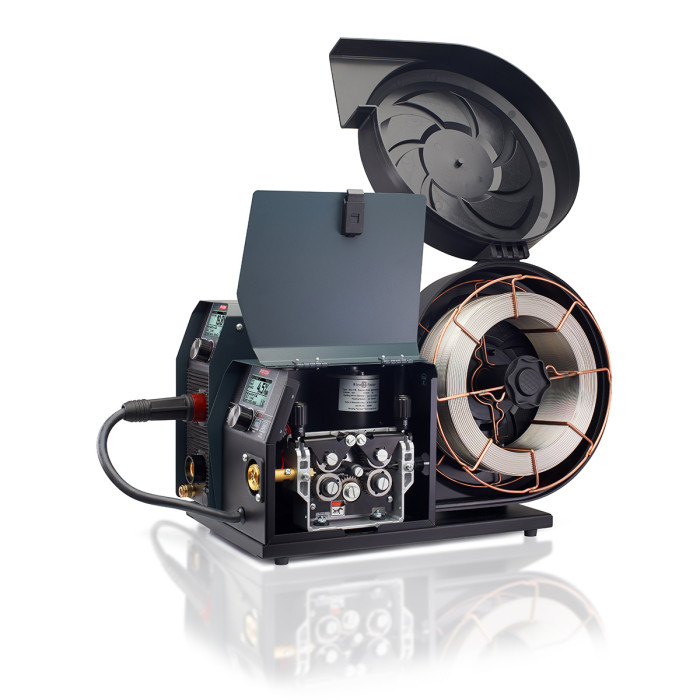

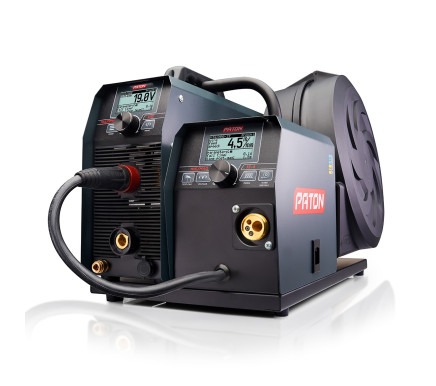

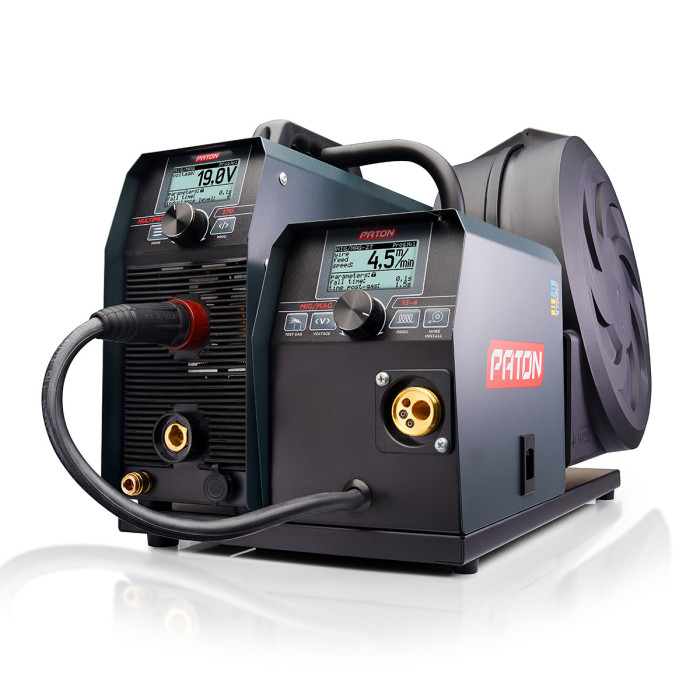

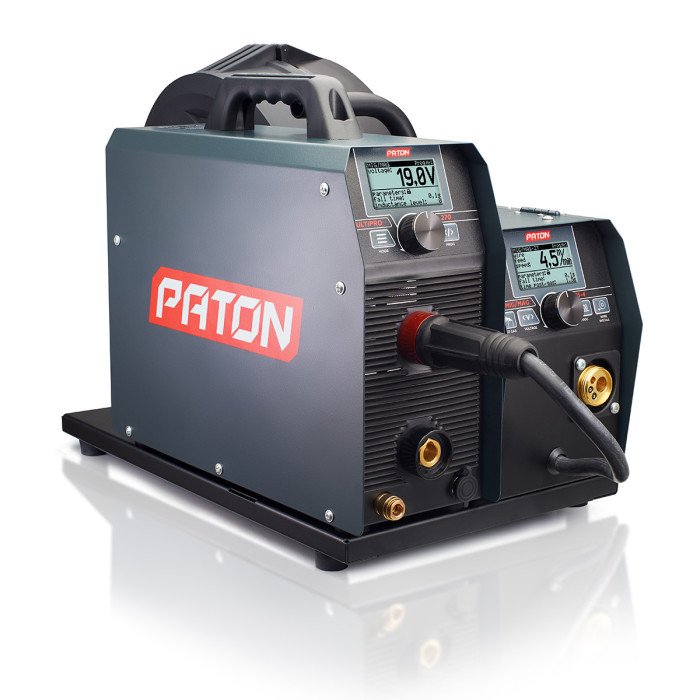

The inverter unit PATON MultiPRO-270-15-4 - is a versatile inverter with digital control method, designed for manual arc welding (MMA), TIG and semi-automatic welding (MIG/MAG) in shielding gases and mixtures thereof. MultiPRO-270-15-4 doublecase design allows to disconnect the source from the wire feeder, which greatly improves the mobility and convenience in MMA and TIG modes. 270A rated current is sufficient for any welding electrodes, diameters from 1.6 mm to 6 mm, and a continuous semi-automatic welding wire diameter of 0.6 to 1.2 mm. The device is equipped with a contactless ignition unit (oscillator) in TIG mode and powerful chetyrehrolikovym metal wire feeder canned motor. Universal connector KZ-2 type ""EURO"" provides an opportunity to connect the burner from a wide range of manufacturers.

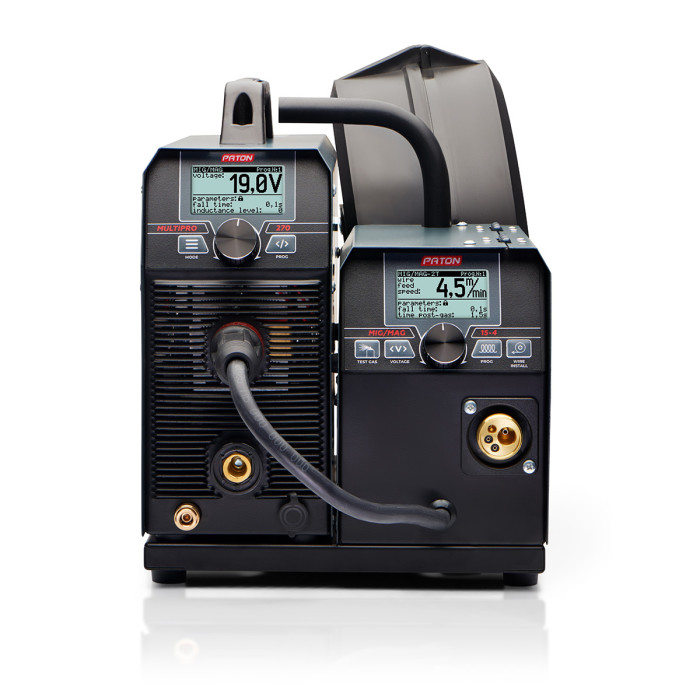

PATON MultiPRO-270-15-4 is the most complete set of reliable accessories from the German manufacturer ABICOR BINZEL, that allows you to start work in 4 modes (MMA / TIG / MIG / MAG) immediately after the acquisition. Model MultiPRO-270-15-4, in combination with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen, the device is easy and convenient to set up a solution to any problem.
PATON MultiPRO-270-15-4 is the most complete set of reliable accessories from the German manufacturer ABICOR BINZEL, that allows you to start work in 4 modes (MMA / TIG / MIG / MAG) immediately after the acquisition. Model MultiPRO-270-15-4, in combination with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen, the device is easy and convenient to set up a solution to any problem.

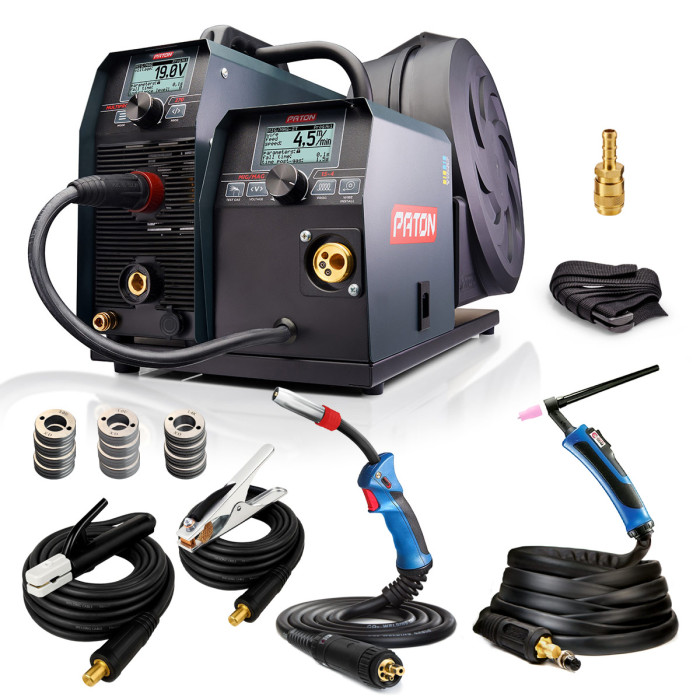

" />- The welding unit
- The welding wire feeding unit (rollers for 0.6 -0.8 mm and 1.0 -1.2 mm)
- The shoulder-carry belt
- PATON™ branded corrugated box
- The semi-automatic ABICOR BINZEL welding torch with a sleeve 3 m in length
- The ABITIG 26 argon-arc torch with a cable 4 m in length
- The welding cable 3 m in length with an Abicor Binzel DE2300 electrode holder
- The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
- The quick-release nipple for a gas hose
- The operation manual
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 12…13 |
| Rated welding current (A) | 270 |
| Maximum operating current, A | 350 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 14 - 270 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Diameter of solid welding wire, mm | 0,6 - 1,2 |
| Pulse modes during welding | MMA / TIG / MIG / MAG |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 7,9-8,6 |
| Maximum consumption,power kVA | 11 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 360х540х400 |
| Gross weight, kg | 32 |
| Weight, kg | 27,2 |
| Protection rate | IP33 |
