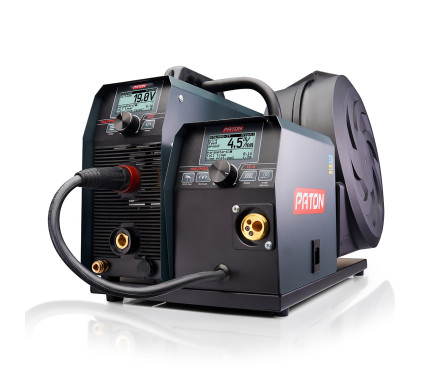

PATON™ MultiPRO-350-15-4-400V

Code: 16161616
Code: 16161616
In Stock
  • 49999 грн
Pay in installments
4166 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16,2 - 18,7
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 350
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Pulse modes during welding MMA / TIG / MIG / MAG
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 10,7 - 12,3
Maximum consumption,power kVA 15,3
Cooling Adaptive
Overall dimensions, WxLxH, mm 360х540х400
Gross weight, kg 32
Weight, kg 27,2
Protection rate IP33
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

The inverter unit PATON MultiPRO-350-15-4-400V - is a versatile inverter with digital control method, designed for manual arc welding (MMA), TIG and semi-automatic welding (MIG/MAG) in shielding gases and mixtures thereof. MultiPRO-350-15-4-400V doublecase design allows to disconnect the source from the wire feeder, which greatly improves the mobility and convenience in MMA and TIG modes. 350A rated current is sufficient for any welding electrodes, diameters from 1.6 mm to 6 mm, and a continuous semi-automatic welding wire diameter of 0.6 to 1.4 mm. The device is equipped with a contactless ignition unit (oscillator) in TIG mode and powerful chetyrehrolikovym metal wire feeder canned motor. Universal connector KZ-2 type ""EURO"" provides an opportunity to connect the burner from a wide range of manufacturers.

PATON MultiPRO-350-15-4-400V is the most complete set of reliable accessories from the German manufacturer ABICOR BINZEL, that allows you to start work in 4 modes (MMA / TIG / MIG / MAG) immediately after the acquisition. Model MultiPRO-350-15-4-400V, in combination with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen, the device is easy and convenient to set up a solution to any problem.

Complete set
  • The welding unit
  • The welding wire feeding unit (rollers for 0.6-0.8 mm and 1.0-1.2 mm)
  • The shoulder-carry belt
  • PATON™ branded corrugated box
  • The semi-automatic ABIMIG welding torch with a cable 3 m in length
  • The ABITIG 26 argon-arc torch with a cable 4 m in length
  • The welding cable 3 m in length with an Abicor Binzel DE2300 electrode holder
  • The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
  • The quick-release nipple for a gas hose
  • The operation manual
Additional materials
Testimonials
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16,2 - 18,7
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 350
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Pulse modes during welding MMA / TIG / MIG / MAG
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 10,7 - 12,3
Maximum consumption,power kVA 15,3
Cooling Adaptive
Overall dimensions, WxLxH, mm 360х540х400
Gross weight, kg 32
Weight, kg 27,2
Protection rate IP33
