PATON Cooler-7-400V

Code: 1070000112
Code: 1070000112
In Stock
  • 14999 грн
Pay in installments
2499 hrn
x 6 month
6
6
6
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Free
Specification
Coolant tank volume, L 7
Cooling capacity, kW at 1 liter/min. 1
Maximum feed rate, l/min. 6,5
Rated current consumption from the mains phase, A 0,35
Cooling liquid BTC-50
Availability of a liquid flow sensor -
Duty cycle, % 100
Rated power supply voltage, V 380/400
Power, W 160
Power supply voltage range (V) 400±15%
Warranty period, month 12
Overall dimensions, WxLxH, mm 700x234x367
Weight, kg 17
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

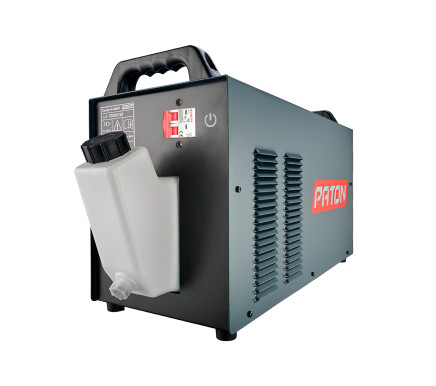

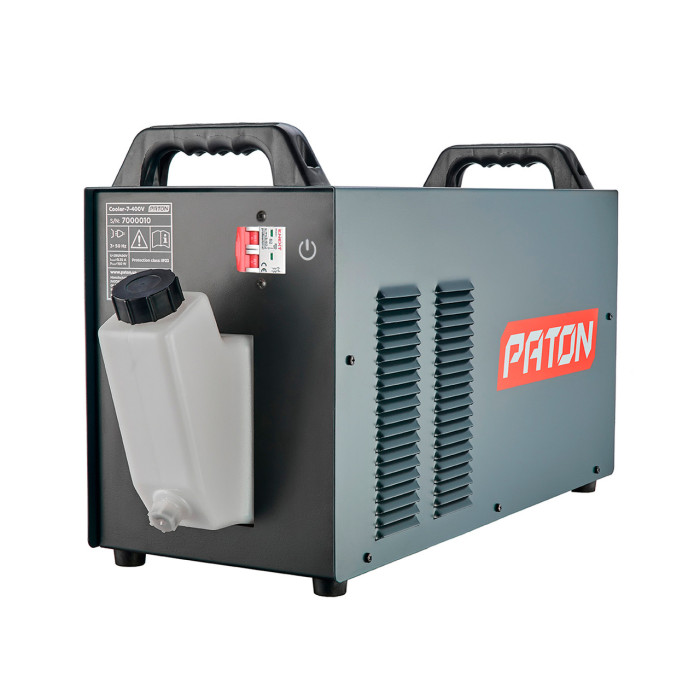

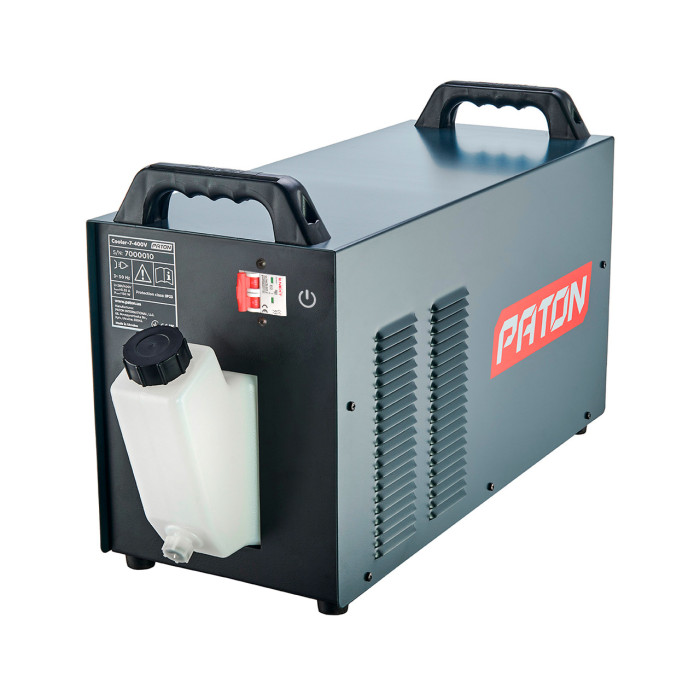

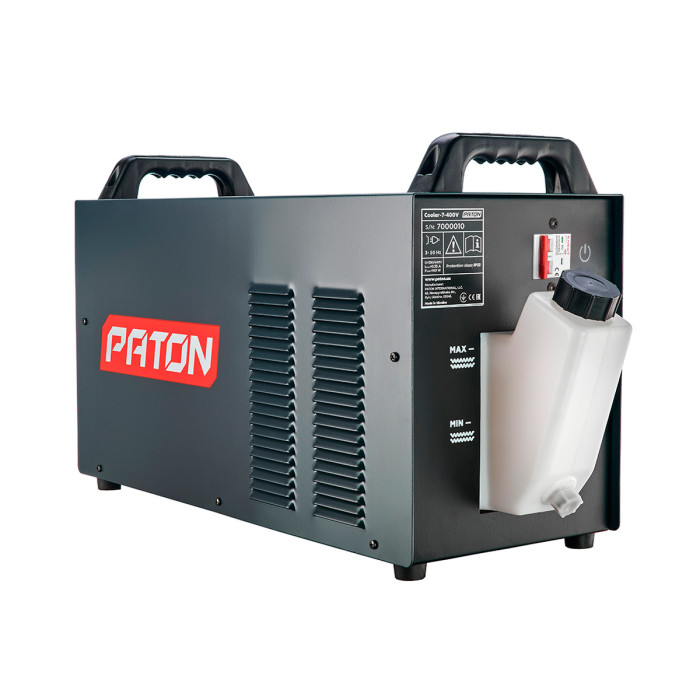

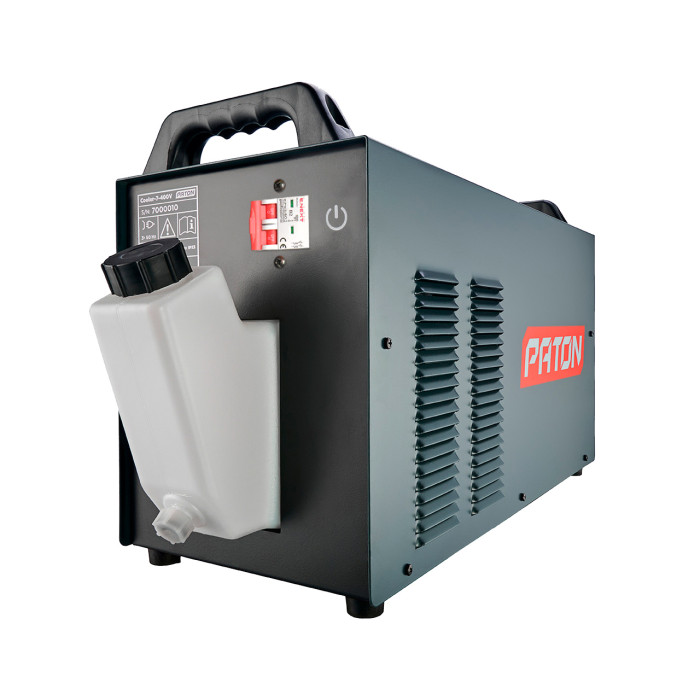

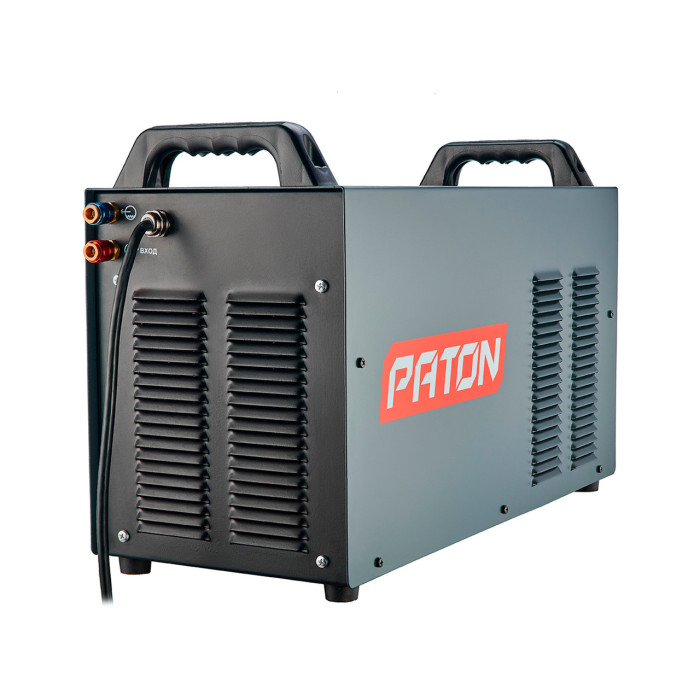

PATON Cooler-7-400V is designed to provide excellent cooling to accessories (welding torches, plasma torches) when operating with welding devices and plasma cutters. The Cooler-7-400V model provides a reliable cooling of the torch during works at high currents (more than 300A for semiautomatic and more than 140A for TIG welding) and is an integral part of the welding equipment operating in these conditions. Cooler-7-400V accommodates up to 7 liters of coolant and provides its circulation in a closed system with a high capacity (liquid supply to a height of 10 meters) and productivity (up to 6.5 l / min).

The filler neck is located on the front panel of the unit, which increases the ease of use when using it as part of a mobile welding station located on a trolley.

PATON Cooler-7-400V is powered by a 400V power supply network.

Complete set
  • Autonomous cooling unit
  • Branded corrugated box PATON
  • The operation manual
Additional materials
Testimonials
Specification
Coolant tank volume, L 7
Cooling capacity, kW at 1 liter/min. 1
Maximum feed rate, l/min. 6,5
Rated current consumption from the mains phase, A 0,35
Cooling liquid BTC-50
Availability of a liquid flow sensor -
Duty cycle, % 100
Rated power supply voltage, V 380/400
Power, W 160
Power supply voltage range (V) 400±15%
Warranty period, month 12
Overall dimensions, WxLxH, mm 700x234x367
Weight, kg 17
Protection rate IP21
