Autonomous cooling units

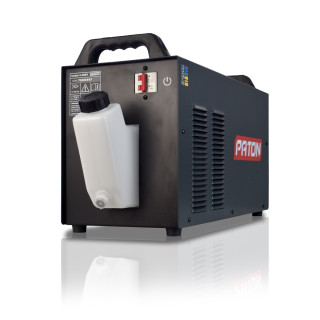

  • Code: 1070000212
    • Coolant tank volume, L 7
    • Cooling capacity, kW at 1 liter/min. 1
    • Maximum feed rate, l/min. 6,5
    • Rated current consumption from the mains phase, A 0,35
    • Cooling liquid BTC-50
    • Availability of a liquid flow sensor +
    • Duty cycle, % 100
    • Rated power supply voltage, V 380/400
    • Power, W 160
    • Power supply voltage range (V) ±15%
    • Warranty period, month 12
    • Overall dimensions, WxLxH, mm 700x234x367
    • Weight, kg 17
    • Protection rate IP21
    • 16999 грн
    Buy in credit
    6
    6
    6
    • Coolant tank volume, L 7
    • Cooling capacity, kW at 1 liter/min. 1
    • Maximum feed rate, l/min. 6,5
    • Rated current consumption from the mains phase, A 0,35
    • Cooling liquid BTC-50
    • Availability of a liquid flow sensor +
    • Duty cycle, % 100
    • Rated power supply voltage, V 380/400
    • Power, W 160
    • Power supply voltage range (V) ±15%
    • Warranty period, month 12
    • Overall dimensions, WxLxH, mm 700x234x367
    • Weight, kg 17
    • Protection rate IP21

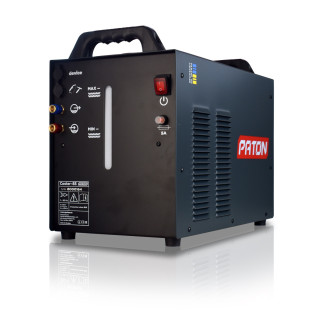

    • Coolant tank volume, L 8
    • Cooling capacity, kW at 1 liter/min. 1
    • Maximum feed rate, l/min. 6,5
    • Rated current consumption from the mains phase, A 1,23
    • Cooling liquid BTC-50
    • Availability of a liquid flow sensor +
    • Duty cycle, % 100
    • Rated power supply voltage, V 220
    • Power, W 270
    • Power supply voltage range (V) 220±15%
    • Warranty period, month 12
    • Overall dimensions, WxLxH, mm 522х267х382
    • Weight, kg 16
    • Protection rate IP21
    • 15999 грн
    Buy in credit
    6
    6
    6
    • Coolant tank volume, L 8
    • Cooling capacity, kW at 1 liter/min. 1
    • Maximum feed rate, l/min. 6,5
    • Rated current consumption from the mains phase, A 1,23
    • Cooling liquid BTC-50
    • Availability of a liquid flow sensor +
    • Duty cycle, % 100
    • Rated power supply voltage, V 220
    • Power, W 270
    • Power supply voltage range (V) 220±15%
    • Warranty period, month 12
    • Overall dimensions, WxLxH, mm 522х267х382
    • Weight, kg 16
    • Protection rate IP21
    • Heat exchanger 2-row
    • Supply voltage 230 V AC / 50 Hz
    • Pump 50/60 Hz Flow rate Qmax 7 l/min Delivery height Hmax 35 m
    • Pump pressure 3.5 bar
    • Cooling capacity 1000 W with H2O 750 W with BTC-15*
    • Noise level at 1 m distance 67 dB (A)
    • Weight 14.9 kg
    • Dimensions L / W / H 490 / 250 / 410 mm
    • Tank capacity 6.0 litres
    • Water connection NW 5 (quick connector)
    • 27319 грн
    Buy in credit
    6
    6
    6
    • Heat exchanger 2-row
    • Supply voltage 230 V AC / 50 Hz
    • Pump 50/60 Hz Flow rate Qmax 7 l/min Delivery height Hmax 35 m
    • Pump pressure 3.5 bar
    • Cooling capacity 1000 W with H2O 750 W with BTC-15*
    • Noise level at 1 m distance 67 dB (A)
    • Weight 14.9 kg
    • Dimensions L / W / H 490 / 250 / 410 mm
    • Tank capacity 6.0 litres
    • Water connection NW 5 (quick connector)
    • Heat exchanger 3-row
    • Supply voltage 230 V AC / 50 Hz
    • Pump 50/60 Hz Flow rate Qmax 7 l/min Delivery height Hmax 35 m
    • Pump pressure 3.5 bar
    • Cooling capacity 1250 W with H2O 1050 W with BTC-15*
    • Noise level at 1 m distance 67 dB (A)
    • Weight 16.7 kg
    • Dimensions L / W / H 690 / 250 / 340 mm
    • Tank capacity 6.0 litres
    • Water connection NW 5 (quick connector)
    • 29380 грн
    Buy in credit
    6
    6
    6
    • Heat exchanger 3-row
    • Supply voltage 230 V AC / 50 Hz
    • Pump 50/60 Hz Flow rate Qmax 7 l/min Delivery height Hmax 35 m
    • Pump pressure 3.5 bar
    • Cooling capacity 1250 W with H2O 1050 W with BTC-15*
    • Noise level at 1 m distance 67 dB (A)
    • Weight 16.7 kg
    • Dimensions L / W / H 690 / 250 / 340 mm
    • Tank capacity 6.0 litres
    • Water connection NW 5 (quick connector)
  • Code: 1070000112
    • Coolant tank volume, L 7
    • Cooling capacity, kW at 1 liter/min. 1
    • Maximum feed rate, l/min. 6,5
    • Rated current consumption from the mains phase, A 0,35
    • Cooling liquid BTC-50
    • Availability of a liquid flow sensor -
    • Duty cycle, % 100
    • Rated power supply voltage, V 380/400
    • Power, W 160
    • Power supply voltage range (V) 400±15%
    • Warranty period, month 12
    • Overall dimensions, WxLxH, mm 700x234x367
    • Weight, kg 17
    • Protection rate IP21
    • 14999 грн
    Buy in credit
    6
    6
    6
    • Coolant tank volume, L 7
    • Cooling capacity, kW at 1 liter/min. 1
    • Maximum feed rate, l/min. 6,5
    • Rated current consumption from the mains phase, A 0,35
    • Cooling liquid BTC-50
    • Availability of a liquid flow sensor -
    • Duty cycle, % 100
    • Rated power supply voltage, V 380/400
    • Power, W 160
    • Power supply voltage range (V) 400±15%
    • Warranty period, month 12
    • Overall dimensions, WxLxH, mm 700x234x367
    • Weight, kg 17
    • Protection rate IP21

Autonomous cooling units are devices that provide forced cooling of welding systems when operating at high currents. With the help of a fluid that constantly circulates inside, they quickly remove heat from the torches, allowing for longer welding times without adverse effects on the welding machines. By taking the cooling system outside, it can operate more efficiently. Autonomous cooling units are successfully used when working with argon arc, semi-automatic systems and plasma cutters.


Advantages of Paton autonomous cooling units

Our brand's self-contained cooling units are perfect for use with the following devices:

·         semi-automatic welders (when working with currents above 300 A);

·         argon arc welding (when working with a current above 140 A);

·         plasma cutters.

They cool the torches and plasma tubes of the equipment, making it possible to work with metal for a long time without interruption. This increases the productivity of welding machines.

Paton autonomous cooling units hold 7 liters of coolant and can supply it to a height of up to 10 meters. Their capacity is 6.5 liters per minute.


Where to buy Paton self-contained cooling units?

You will find all of our stand-alone cooling units on this page - you can buy them in just a few clicks. They are perfectly suited for use with argon arc welders and semi-automatic machines of our production, increasing the comfort of working with them. By purchasing Paton equipment, you get high-quality machinery that will come in handy both at home and on large construction sites.
