Specification
| Rated power supply voltage, V | 380/400 |
| Rated welding current (A) | 315 |
| Operating load factor | 50% |
| Power supply voltage range (V) | ±10% |
| Welding current control range (A) | 25 - 315 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Contactless arc ignition | + |
| Warranty period, month | 12 |
| Welding current indication | + |
| Memorizing modes | + |
| Starting current regulation, A | 25-300 |
| Torch trigger mode | 2Т, 4Т |
| Regulation of current rise time, sec | 0-15 |
| Idling voltage, V | to 65 |
| Regulation of the downslope time, sec | 0-25 |
| Frequency of alternating welding current, Hz | 15-120 |
| Polarity balance when welding on alternating current,% | 20-80 |
| Rated power consumption, kVA | 13,5 |
| Overall dimensions, WxLxH, mm | 480х380х330 |
| Weight, kg | 23 |
| Protection rate | IP21 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

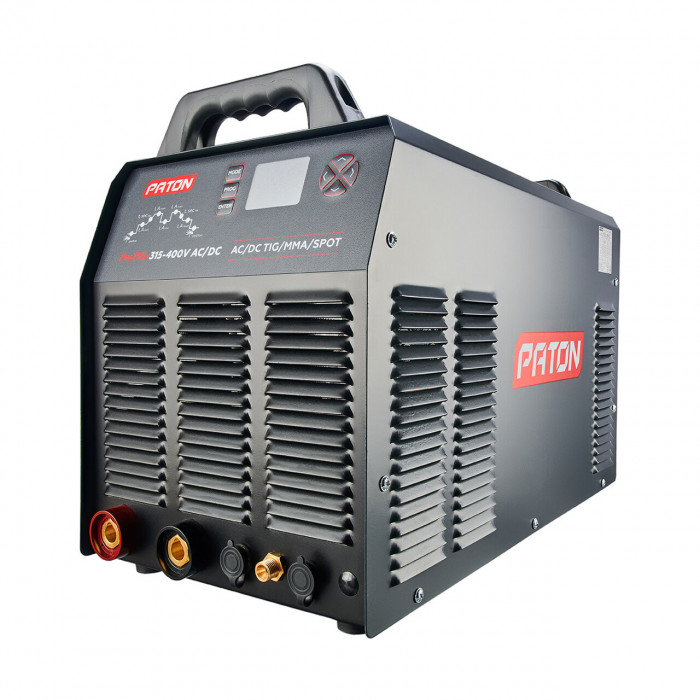

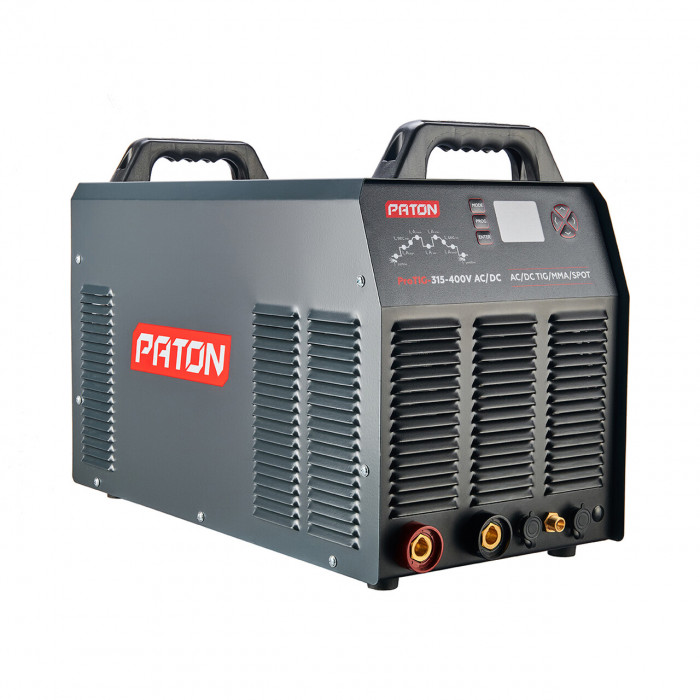

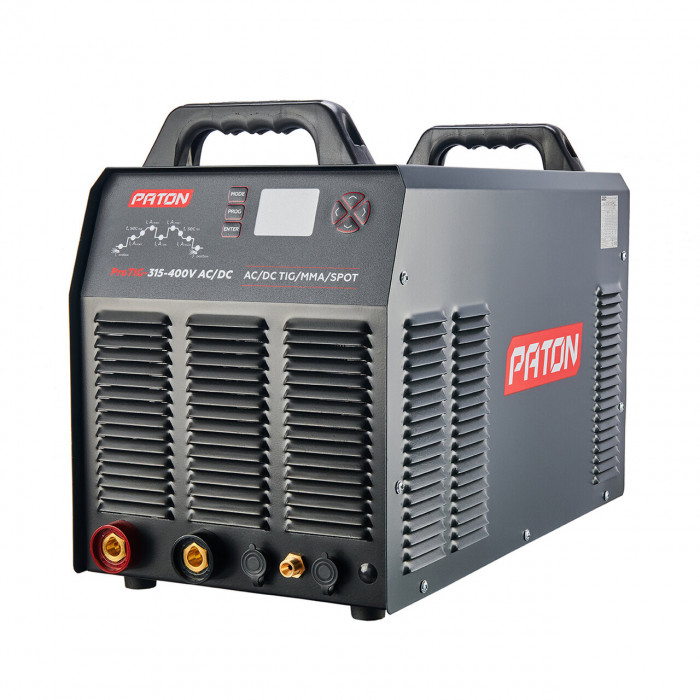

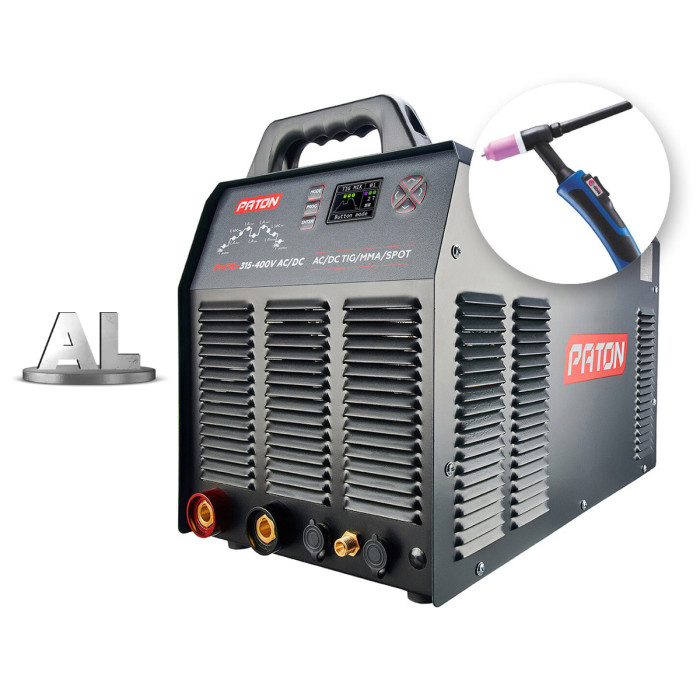

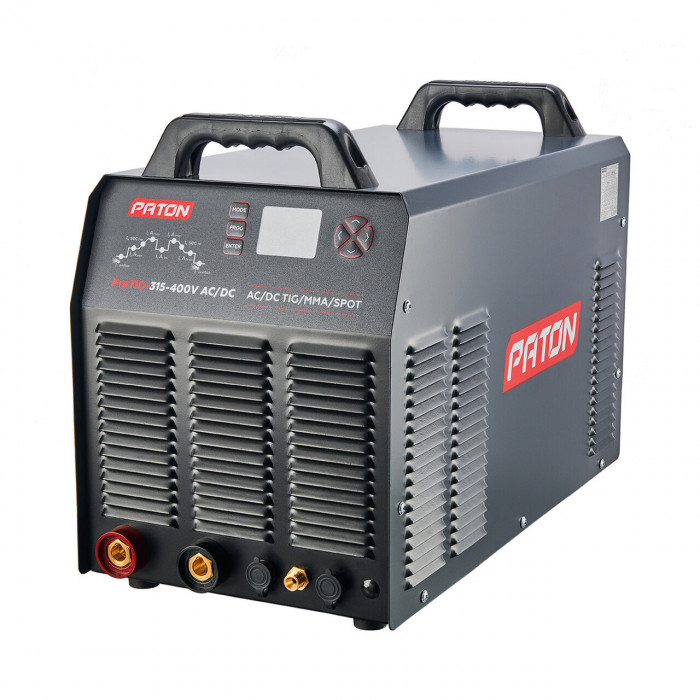

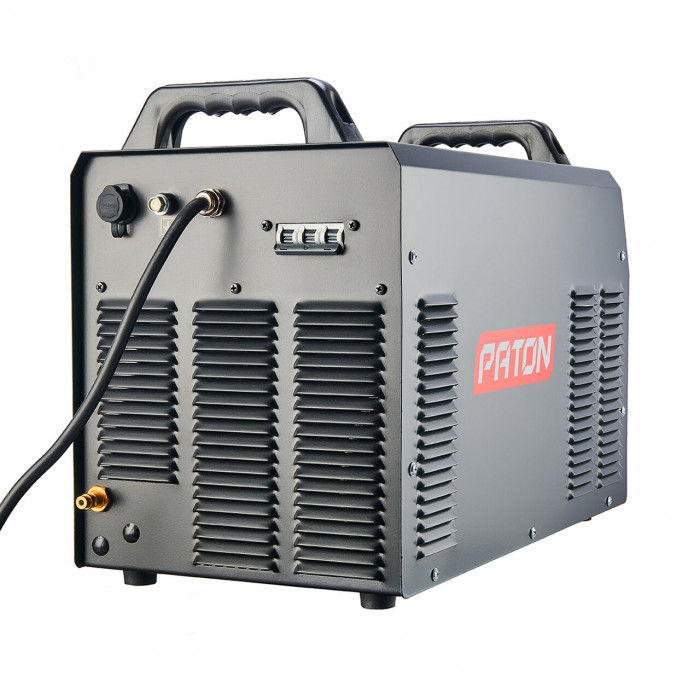

Argon inverter PATON PROTIG-315-400V AC/DC - enough multifunctional apparatus designed for TIG AC/DC welding, MMA manual arc welding and welding operation in the electro-rivets RIV.
Model PROTIG-315-400V AC/DC welding provides direct and alternating current to 315 amps wide range of materials: aluminum, aluminum alloys (TIG AC mode), the details and materials of steel, nonferrous metals and copper alloys (TIG DC mode). The inverter provides excellent ignition and sustained a stable arc, and as a result - a quality weld, and ease of set up and ease of operation.
Complete set
- The welding unit

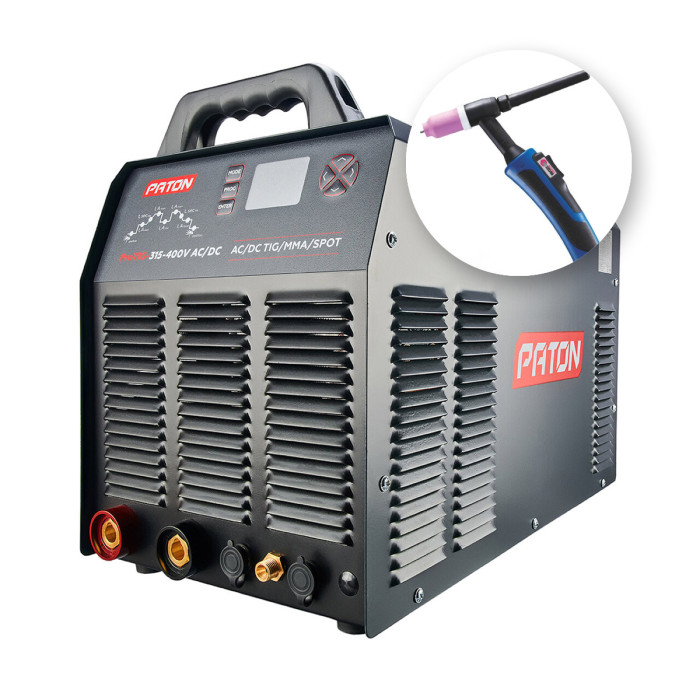

- The ABITIG 18SC (liquid cooled) argon-arc torch with a cable 4 m in length
- The welding cable 4 m in length with a grounding clamp
- The quick-release nipple for a gas hose
- PATON™ branded corrugated box
- The operation manual
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 380/400 |
| Rated welding current (A) | 315 |
| Operating load factor | 50% |
| Power supply voltage range (V) | ±10% |
| Welding current control range (A) | 25 - 315 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Contactless arc ignition | + |
| Warranty period, month | 12 |
| Welding current indication | + |
| Memorizing modes | + |
| Starting current regulation, A | 25-300 |
| Torch trigger mode | 2Т, 4Т |
| Regulation of current rise time, sec | 0-15 |
| Idling voltage, V | to 65 |
| Regulation of the downslope time, sec | 0-25 |
| Frequency of alternating welding current, Hz | 15-120 |
| Polarity balance when welding on alternating current,% | 20-80 |
| Rated power consumption, kVA | 13,5 |
| Overall dimensions, WxLxH, mm | 480х380х330 |
| Weight, kg | 23 |
| Protection rate | IP21 |

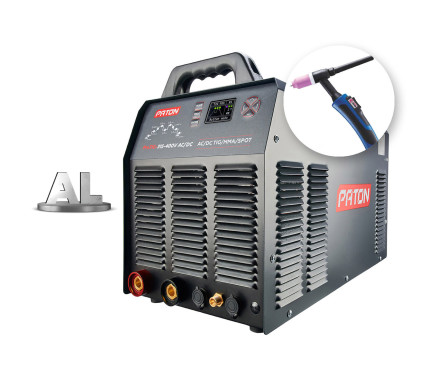

PATON™ ProTIG-315-400V AC/DC
Code: 4011847
In Stock
- 54999 грн
