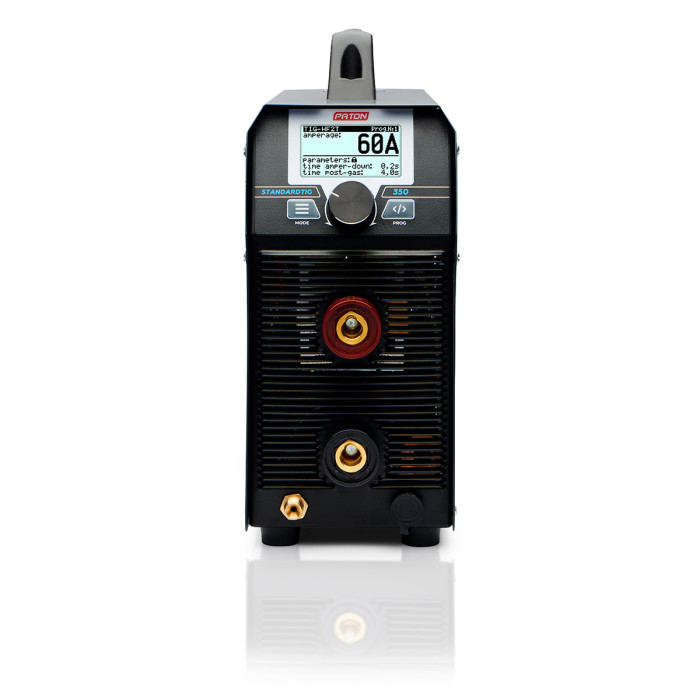

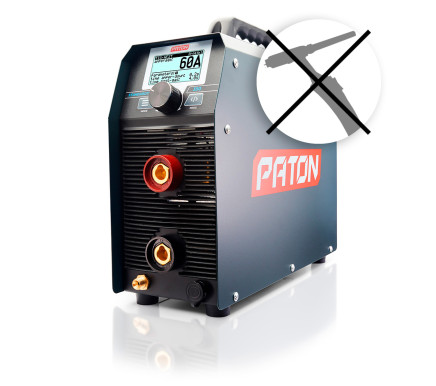

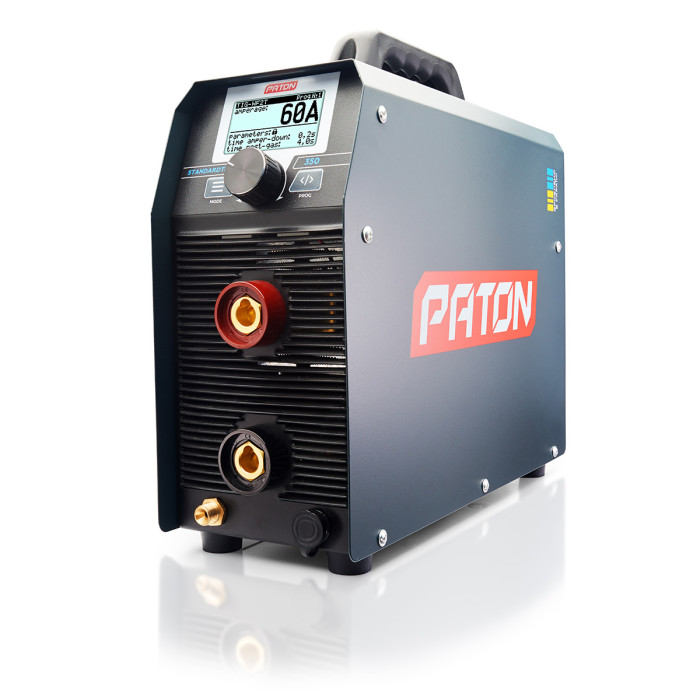

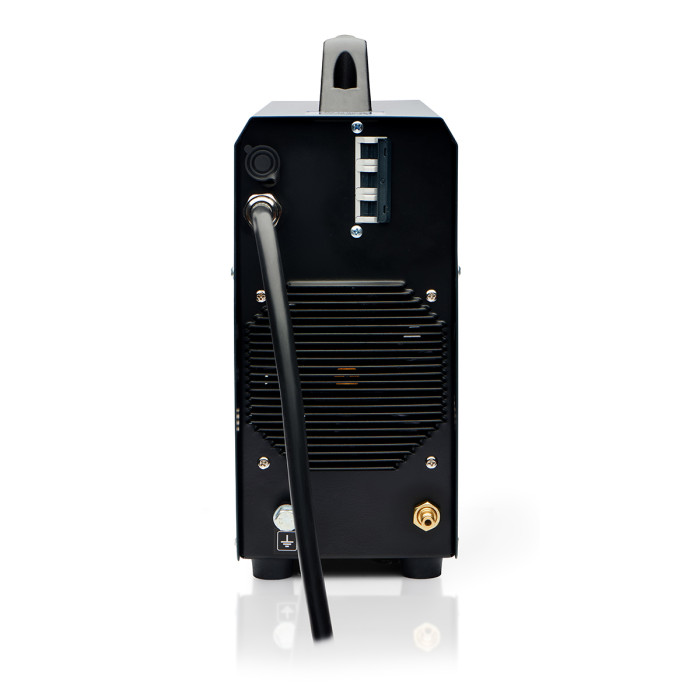

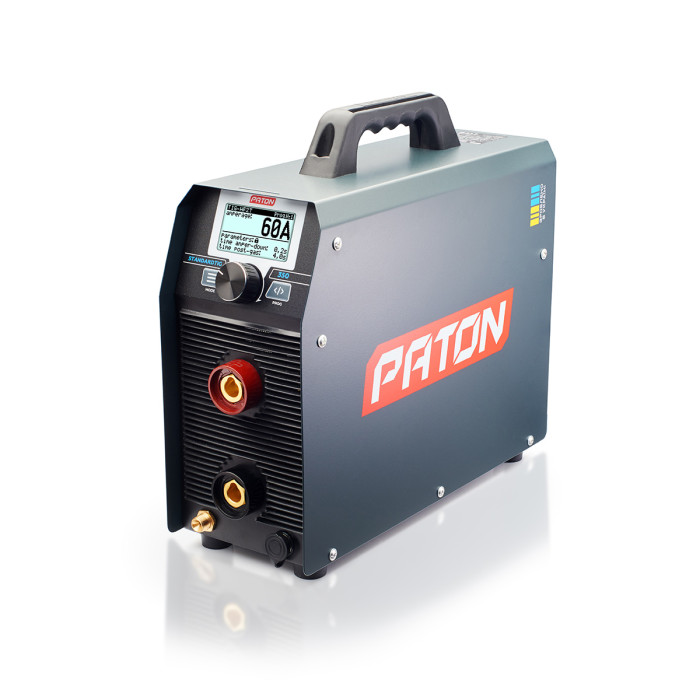

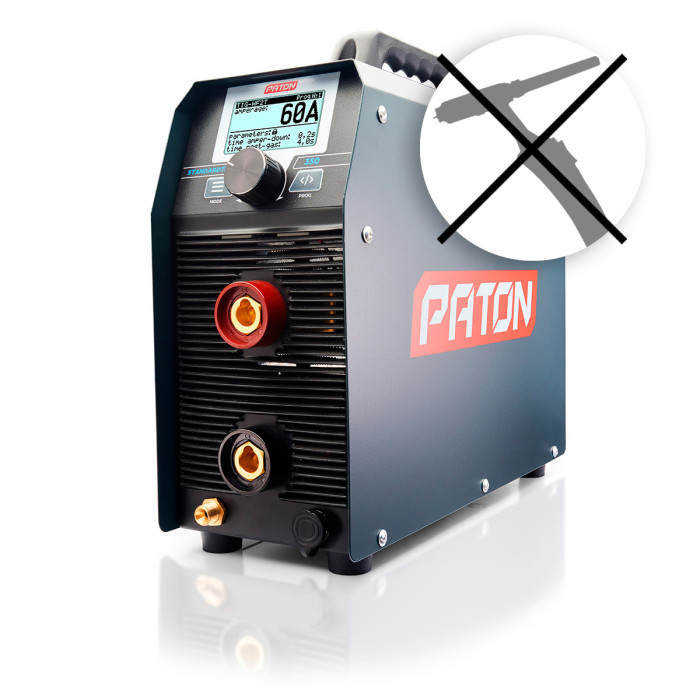

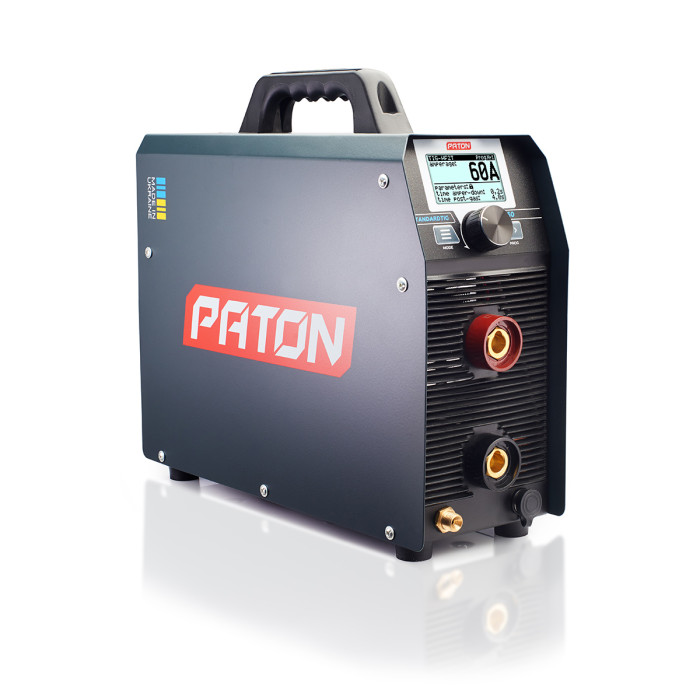

PATON™ StandardTIG-350-400V without torch

Code: 4015531
Code: 4015531
In Stock
  • 23999 грн
Pay in installments
1999 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16-18,5
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 350
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/70
Rated power consumption, kVA 10,6-12,2
Maximum consumption,power kVA 15,2
Cooling Adaptive
Overall dimensions, WxLxH, mm 145х390х335
Protection rate IP33
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

Digital TIG welding inverter PATON StandardTIG-350-400V - for TIG welding of stainless steel products, the compounds of alloyed steels and non-ferrous metals, with a direct current up to 350 amperes. Also, the apparatus is operating in MMA and MIG/MAG modes (as a current source in the composition with an external feeder). StandardTIG-350-400V model has a maximum mobility, and sufficiently large functional. 350A nominal current, sufficient for any welding with coated electrodes with diameters from 1.6 mm to 6 mm, and semi-continuous welding wire of 0.6 to 1,4 mm. The apparatus unit integrated contactless arc ignition (oscillator) and PULSE function for all modes of welding.

Setup is easy and intuitive thanks to the LCD screen with a multilingual interface. PATON StandardTIG-350-400V is equipped with high-quality accessories from the German manufacturer ABICOR BINZEL.

Complete set
  • The welding unit
  • The shoulder-carry belt
  • The operation manual
Testimonials
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16-18,5
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 350
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/70
Rated power consumption, kVA 10,6-12,2
Maximum consumption,power kVA 15,2
Cooling Adaptive
Overall dimensions, WxLxH, mm 145х390х335
Protection rate IP33
