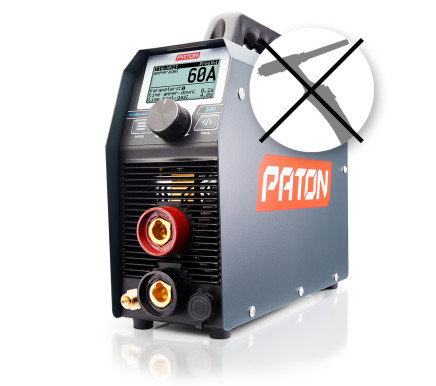

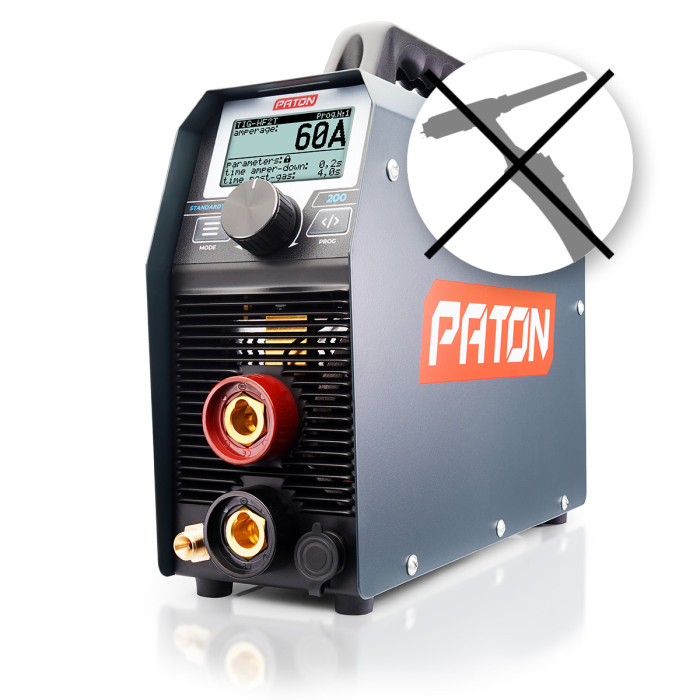

PATON™ StandardTIG-200 without argon-arc torch

Code: 4014880
Code: 4014880
In Stock
  • 8999 грн
Pay in installments
749 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 25-28
Rated welding current (A) 200
Maximum operating current, A 270
Operating load factor 45%
Power supply voltage range (V) 160-260
Welding current control range (A) 10 - 200
Diameter of a stick electrode, mm 1,6-5
Diameter of solid welding wire, mm 0,6 - 1
Warranty period, month 60
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/70
Rated power consumption, kVA 5,5-6,1
Maximum consumption,power kVA 8
Cooling Adaptive
Overall dimensions, WxLxH, mm 110х315х255
Weight, kg 5,8
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

Digital TIG welding inverter PATON StandardTIG-200 - for TIG welding of stainless steel products, the compounds of alloyed steels and non-ferrous metals, a constant current of 200 amperes. Also, the apparatus is operating in manual arc (MMA) and semi-automatic welding (MIG/MAG, as a current source in the composition with an external feeder). StandardTIG-200 model has a maximum mobility, and sufficiently large functional. 200A nominal current, sufficient for any welding with coated electrodes with diameters from 1.6 mm to 5 mm, and semi-continuous welding wire of 0.6 to 1 mm. The apparatus unit integrated contactless arc ignition (oscillator) and PULSE function for all modes of welding.

Setup is easy and intuitive thanks to the LCD screen with a multilingual interface. PATON StandardTIG-200 is equipped with high-quality accessories from the German manufacturer ABICOR BINZEL, as well as impact-resistant plastic case for easy transport and storage.

Complete set
  • The welding unit
  • The shoulder-carry belt
  • PATON™ branded plastic case
  • The operation manual
Testimonials
Specification
Rated power supply voltage, V 220/230
Rated current consumption from the mains phase, А 25-28
Rated welding current (A) 200
Maximum operating current, A 270
Operating load factor 45%
Power supply voltage range (V) 160-260
Welding current control range (A) 10 - 200
Diameter of a stick electrode, mm 1,6-5
Diameter of solid welding wire, mm 0,6 - 1
Warranty period, month 60
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/70
Rated power consumption, kVA 5,5-6,1
Maximum consumption,power kVA 8
Cooling Adaptive
Overall dimensions, WxLxH, mm 110х315х255
Weight, kg 5,8
Protection rate IP21
