PATON ™ ProTIG-315-400V AC / DC WK welding set

Code: 0032
Code: 0032
In Stock
  • 65999 грн
Pay in installments
5499 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Rated power supply voltage, V 380/400
Rated welding current (A) 315
Operating load factor 50%
Power supply voltage range (V) ±10%
Welding current control range (A) 25 - 315
Diameter of a stick electrode, mm 1,6-6
Contactless arc ignition +
Warranty period, month 12
Welding current indication +
Memorizing modes +
Starting current regulation, A 25...300
Torch trigger mode 2Т, 4Т
Regulation of current rise time, sec 0...15
Idling voltage, V to 65
Regulation of the downslope time, sec 0...25
Frequency of alternating welding current, Hz 15...120
Polarity balance when welding on alternating current,% 20...80
Rated power consumption, kVA 13,5
Overall dimensions, WxLxH, mm 480х380х330
Weight, kg 23
Protection rate IP21
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

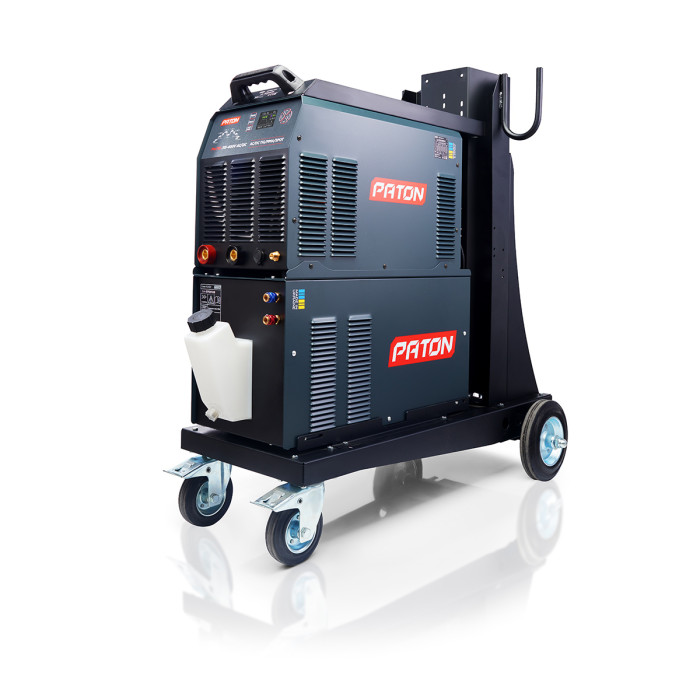

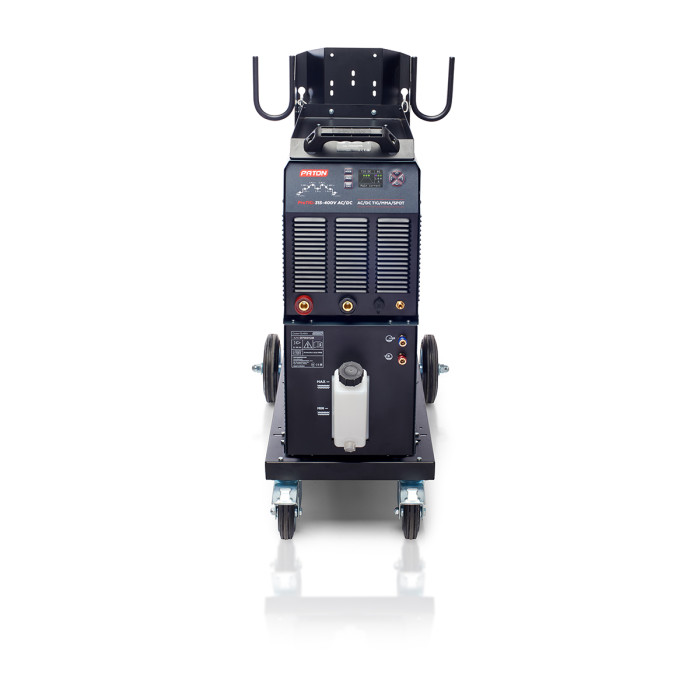

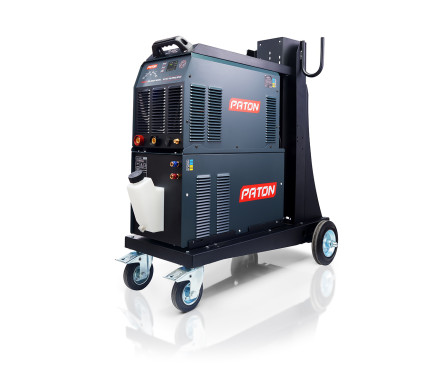

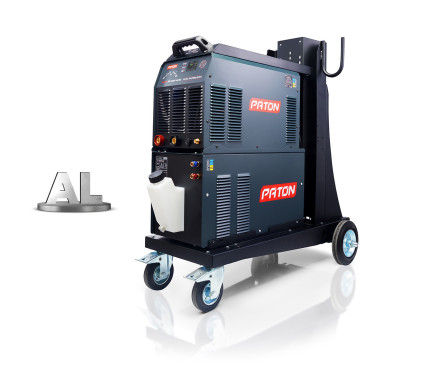

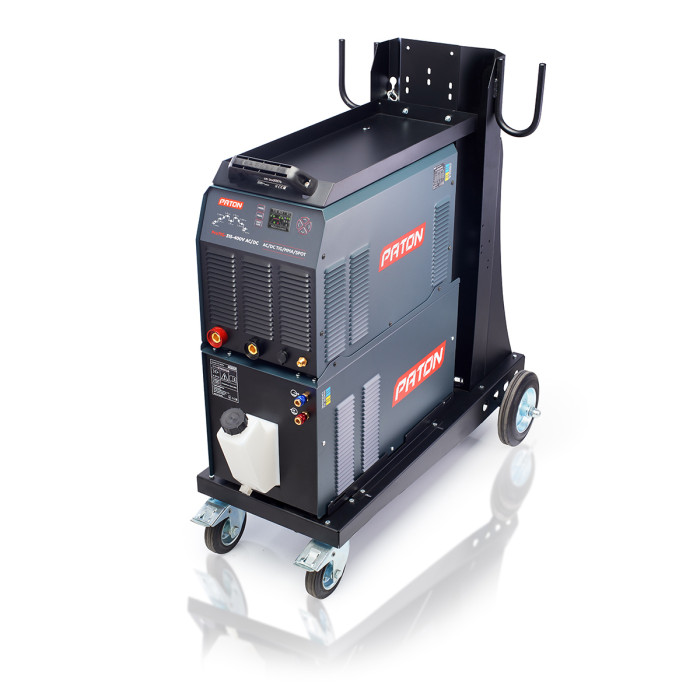

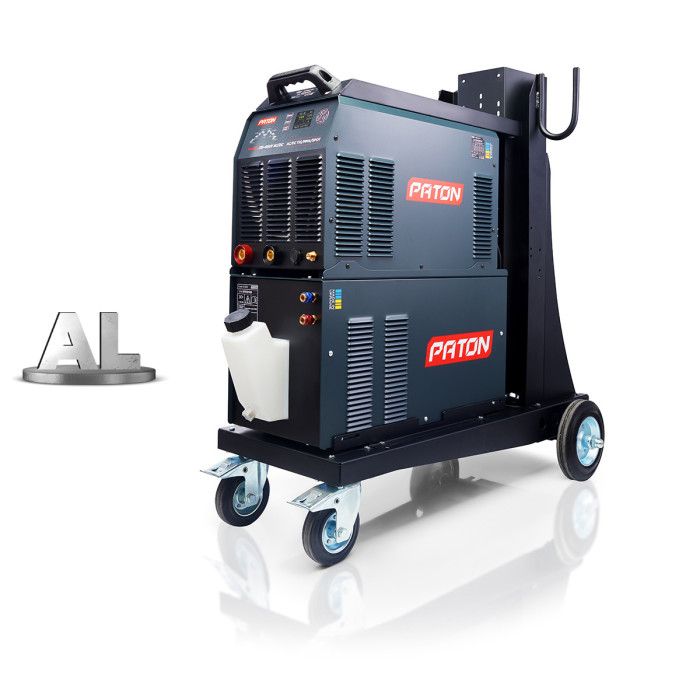

PATON ™ ProTIG-315-400V AC / DC WK welding set is a complete solution for TIG welding
PATON ™ presents another complete solution, this time for TIG welding. This solution includes an industrial apparatus PATON ™ ProTIG-315-400V AC / DC with an Abicor Binzel ABITIG-18 argon-arc torch with liquid cooling and optional additional equipment:
• autonomous cooling unit PATON ™ Cooler-7;
• PATON ™ trolley is universal.
In the maximum configuration, such equipment allows you to organize a full-fledged mobile welding station for solving industrial tasks for welding aluminum and other non-ferrous metals and alloys, both with direct and alternating current up to 315 amperes, while providing a high level of productivity and welder comfort.
Complete set
  • Welding machine
  • Argon-arc torch ABITIG-18 with liquid cooling (4 m)
  • Welding control pedal
  • PATON™ Cooler-8S
  • Universal trolley PATON ™
  • Welding cable with ground terminal (4 m)
  • Quick-detachable connection for argon
  • Branded PATON ™ corrugated box
  • Operation manual
Testimonials
Specification
Rated power supply voltage, V 380/400
Rated welding current (A) 315
Operating load factor 50%
Power supply voltage range (V) ±10%
Welding current control range (A) 25 - 315
Diameter of a stick electrode, mm 1,6-6
Contactless arc ignition +
Warranty period, month 12
Welding current indication +
Memorizing modes +
Starting current regulation, A 25...300
Torch trigger mode 2Т, 4Т
Regulation of current rise time, sec 0...15
Idling voltage, V to 65
Regulation of the downslope time, sec 0...25
Frequency of alternating welding current, Hz 15...120
Polarity balance when welding on alternating current,% 20...80
Rated power consumption, kVA 13,5
Overall dimensions, WxLxH, mm 480х380х330
Weight, kg 23
Protection rate IP21
PATON ™ ProTIG-315-400V AC / DC WK welding set
PATON ™ ProTIG-315-400V AC / DC WK welding set
Code: 0032
In Stock
  • 65999 грн
Checkout order
