| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 12,1…14,1 |
| Rated welding current (A) | 270 |
| Maximum operating current, A | 350 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 12 - 270 |
| Diameter of a stick electrode, mm | 1,6-6,0 |
| Diameter of solid welding wire, mm | 0,6 - 1,2 |
| PULSE function | MIG/MAG/MMA/TIG |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 8,0-9,4 |
| Maximum consumption,power kVA | 11,4 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 360х540х400 |
| Weight, kg | 16,5 |
| Protection rate | IP33 |

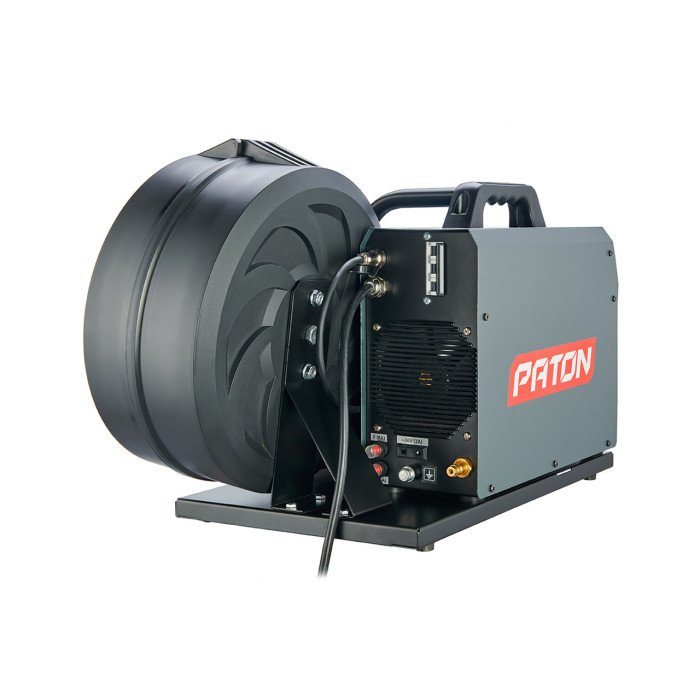

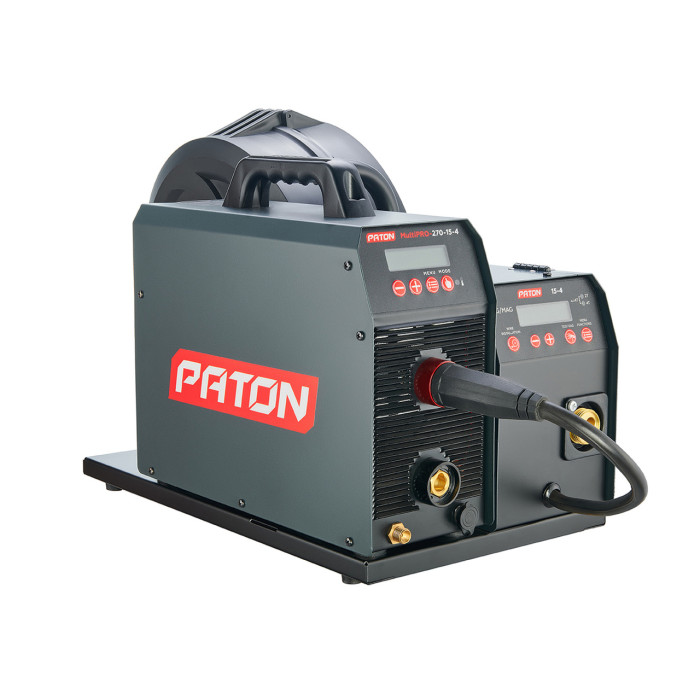

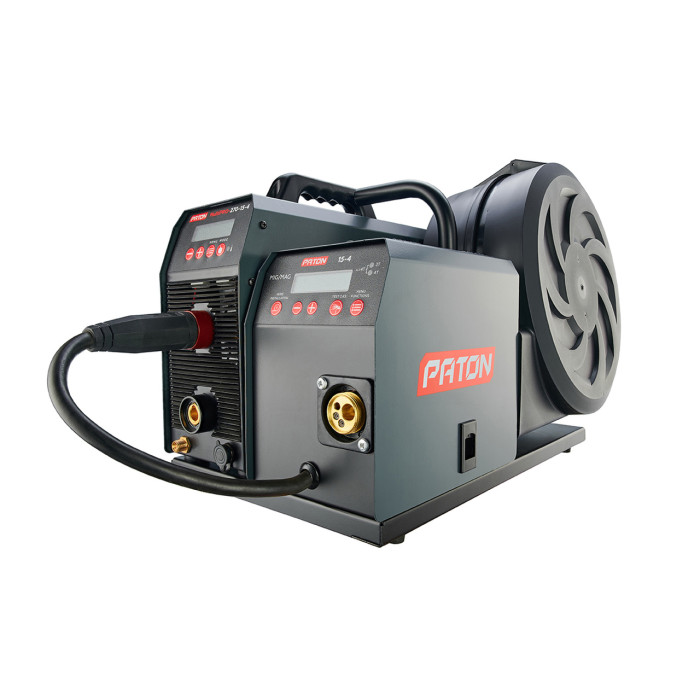

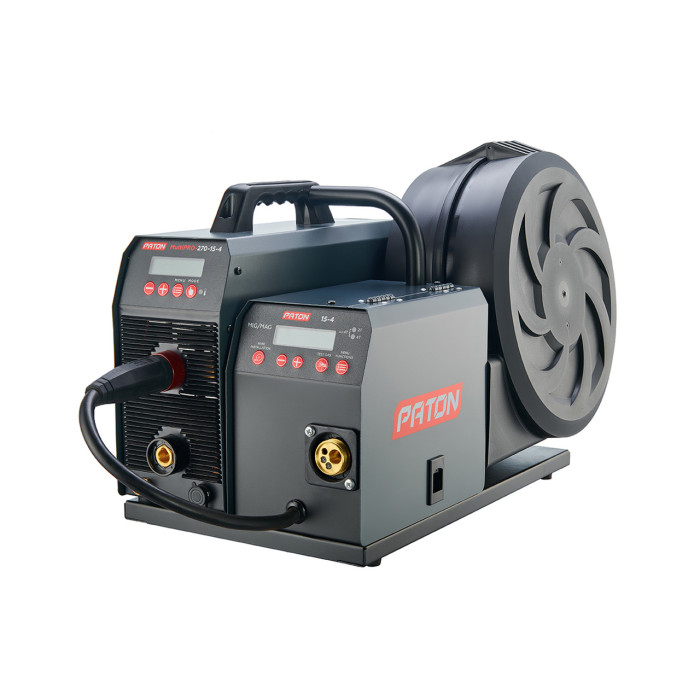

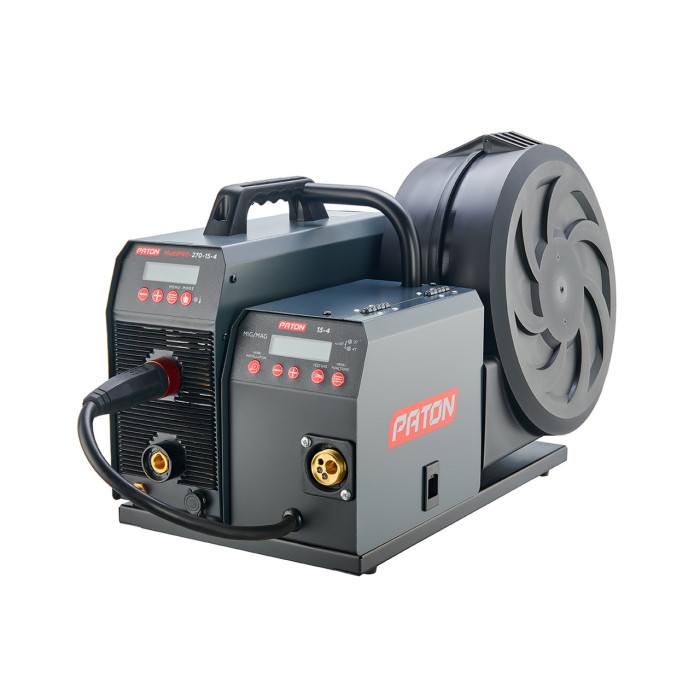

The inverter unit PATON MultiPRO-270-15-4 - is a versatile inverter with a digital control method, designed for manual arc welding (MMA), TIG, and semi-automatic welding (MIG/MAG) in shielding gases and mixtures thereof. MultiPRO-270-15-4 double case design allows for disconnection of the source from the wire feeder, which greatly improves mobility and convenience in MMA and TIG modes. 270A rated current is sufficient for any welding electrodes, with diameters from 1.6 mm to 6 mm, and a continuous semi-automatic welding wire diameter of 0.6 to 1.2 mm. The device is equipped with a contactless ignition unit (oscillator) in TIG mode and a powerful four-roller metal wire feeder canned motor. Universal connector KZ-2 type "EURO" provides an opportunity to connect the burner from a wide range of manufacturers.
PATON MultiPRO-270-15-4 is the most complete set of reliable accessories from the German manufacturer ABICOR BINZEL, that allows you to start work in 4 modes (MMA / TIG / MIG / MAG) immediately after the acquisition. Model MultiPRO-270-15-4, in combination with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen, the device is easy and convenient to set up a solution to any problem.
A 4th generation machine with no defects.

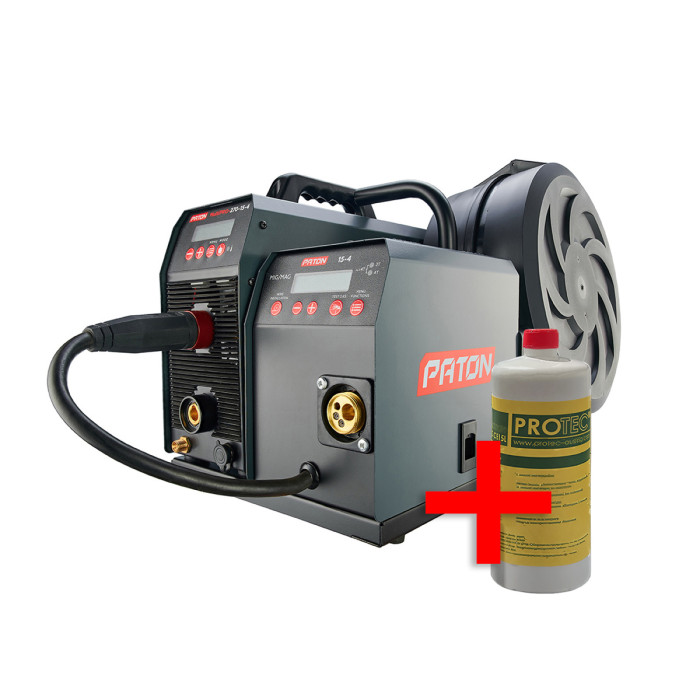

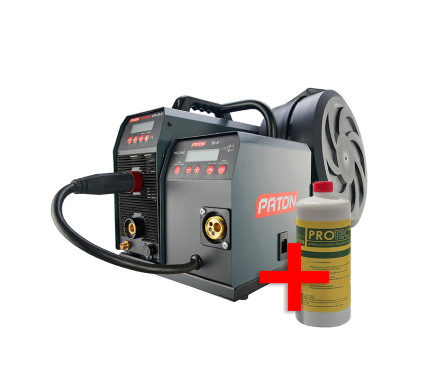

FREE GIFT: Protec CE1 5L anti-stick agent, 1L
- The welding unit
- The welding wire feeding unit (rollers for 0.6 -0.8 mm and 1.0 -1.2 mm)
- The shoulder-carry belt
- PATON™ branded corrugated box
- The semi-automatic ABICOR BINZEL welding torch with a sleeve 3 m in length
- The ABITIG 26 argon-arc torch with a cable 4 m in length
- The welding cable 3 m in length with an Abicor Binzel DE2300 electrode holder
- The welding cable 3 m in length with a Abicor Binzel МК300 grounding clamp
- The quick-release nipple for a gas hose
- The operation manual
Protec CE1 5L anti-stick agent, 1L - FREE GIFT
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 12,1…14,1 |
| Rated welding current (A) | 270 |
| Maximum operating current, A | 350 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 12 - 270 |
| Diameter of a stick electrode, mm | 1,6-6,0 |
| Diameter of solid welding wire, mm | 0,6 - 1,2 |
| PULSE function | MIG/MAG/MMA/TIG |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 8,0-9,4 |
| Maximum consumption,power kVA | 11,4 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 360х540х400 |
| Weight, kg | 16,5 |
| Protection rate | IP33 |
