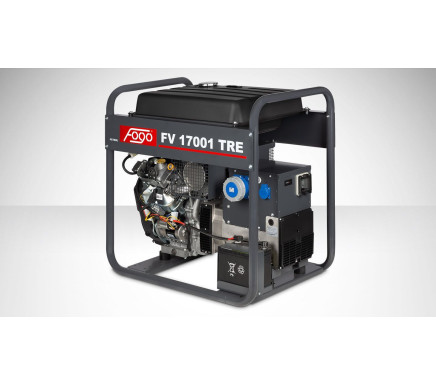

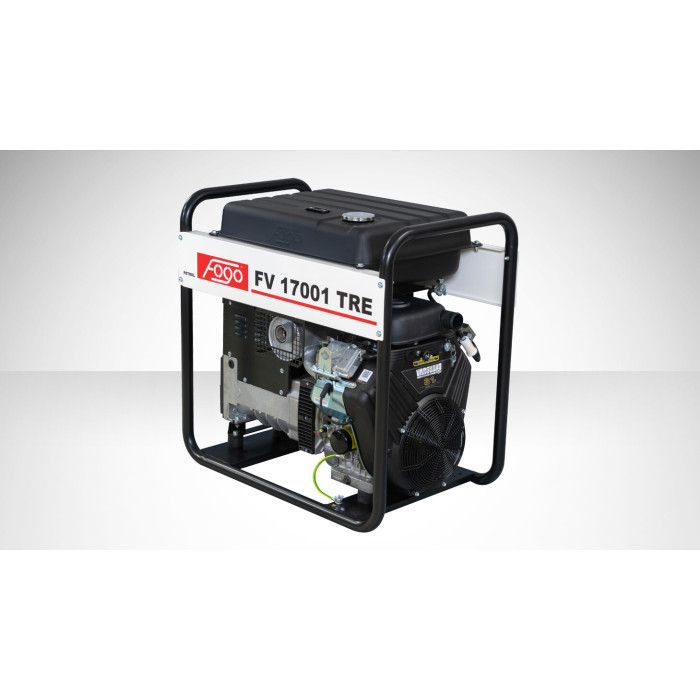

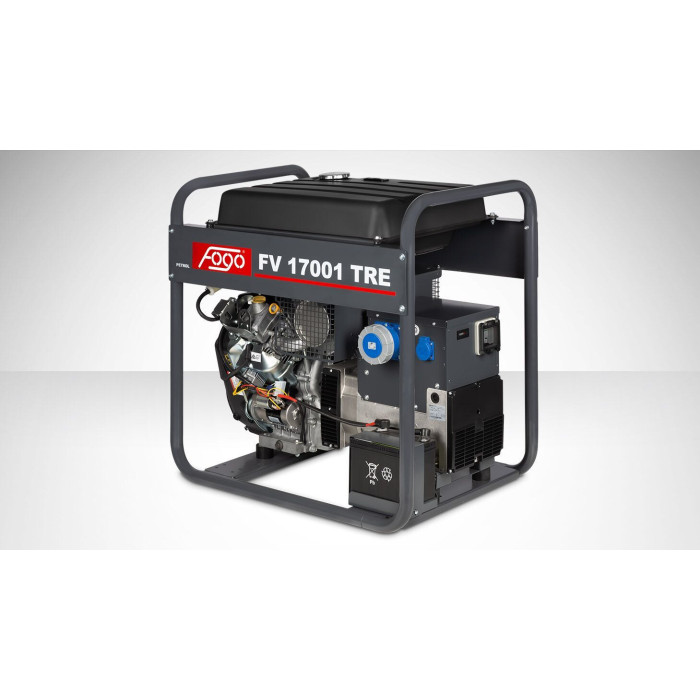

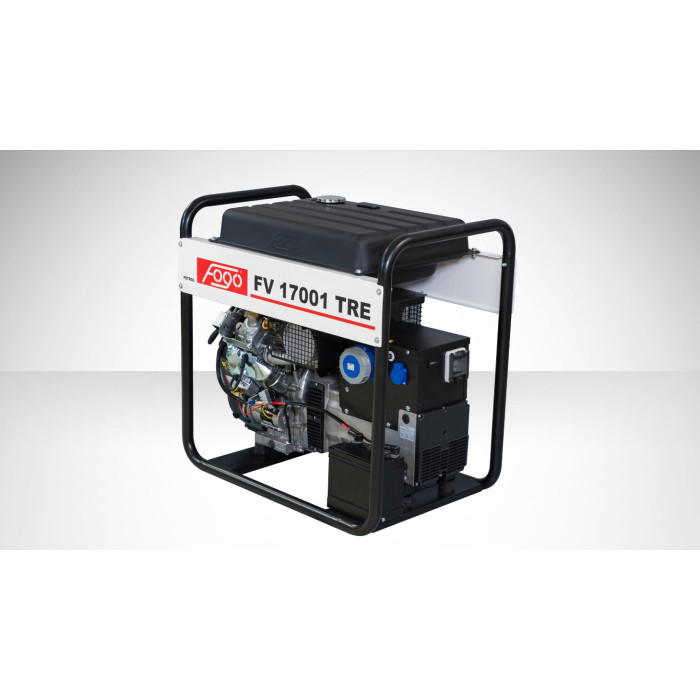

Generator Set FV17001TRE 1ph-14.9kW Engine B&S, Electric Start

FOGO FV 17001 TRE is a single-phase 4-stroke gasoline generator with a Vanguard 5434 engine. It starts with an electric starter. The nominal power of the generator is 14.9 kW. The nominal current is 64.8 A. The generator has a built-in voltage stabilization system (AVR) and a thermal relay that shuts off the engine when a critical operating temperature is reached. Additionally, it features engine protection technology to prevent operation without oil, with emergency shutdown.

The generator is highly economical and has increased efficiency. Fuel consumption at 75% load is 6.5 liters/hour. Equipped with a high-quality alternator from the manufacturer Sincro (Italy) with an IP 23 protection class.

Designed to restore electricity supply in case of power grid failures or absence of other power sources when the stationary network is unavailable or damaged.

Features:

• automatic engine shutdown at low oil level
• digital voltage regulation AVR +/- 2%
• digital AVR system that guarantees overload-free operation and prevents voltage spikes with THD <= 6%
• overload protection
• thermal relay
• oil pressure sensor
• two protected 230V sockets: 63A and 16A
• generator protection class IP 23
• generator insulation class H
• generator starting current 400%
• reinforced frame profile 38 mm
• muffler with exhaust hose connection
• battery
• operating hours meter
