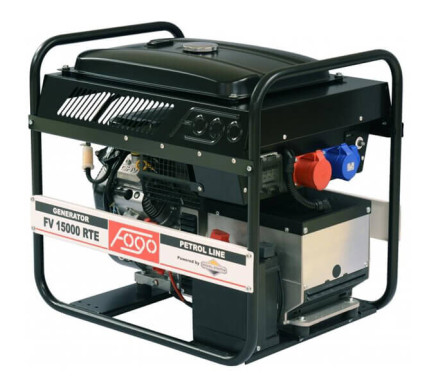

Generator Set FV15000TRE max. power 3ph-14.5kVA/1ph-7.0kW, engine B&S, tank 45L, electric start

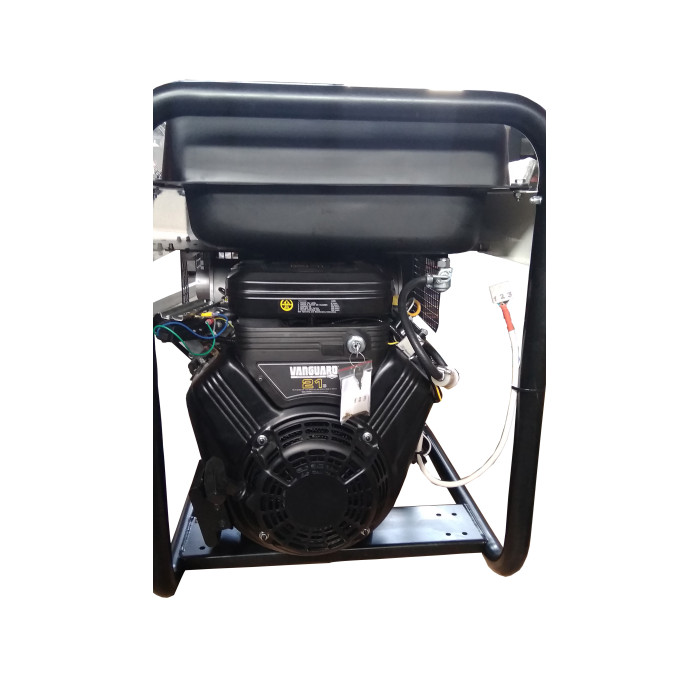

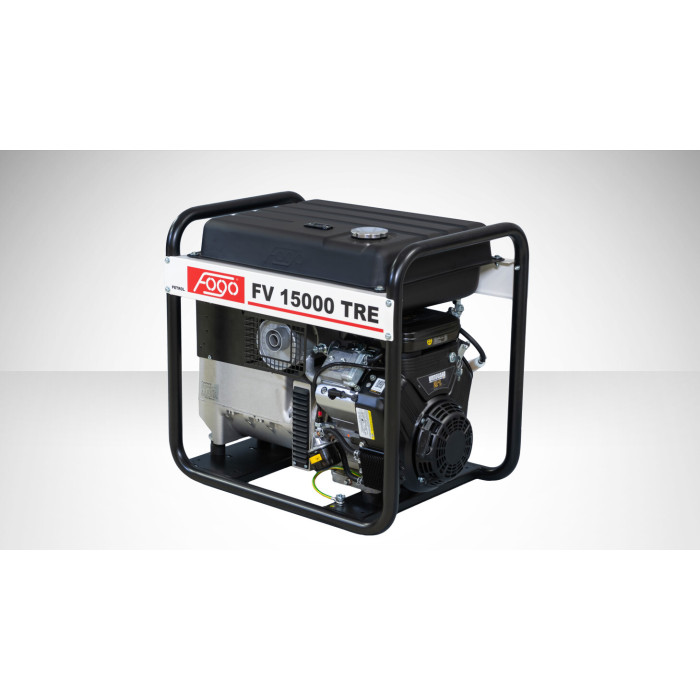

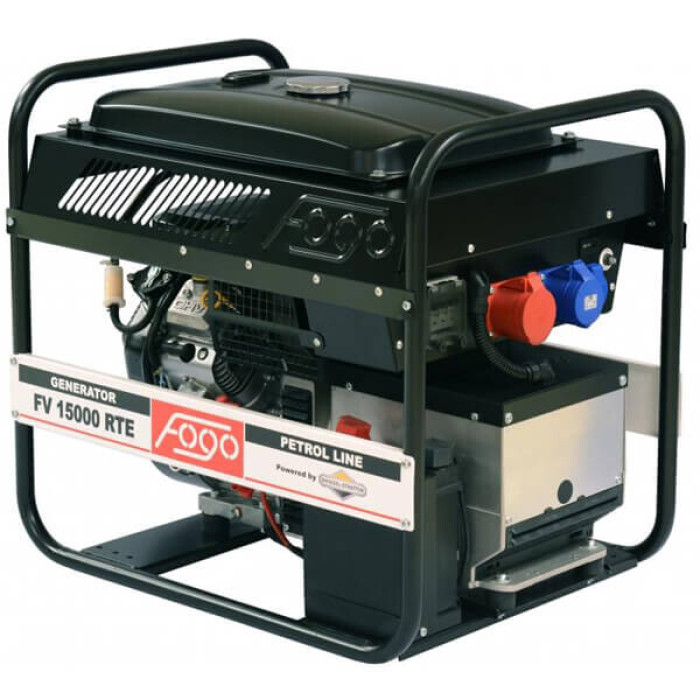

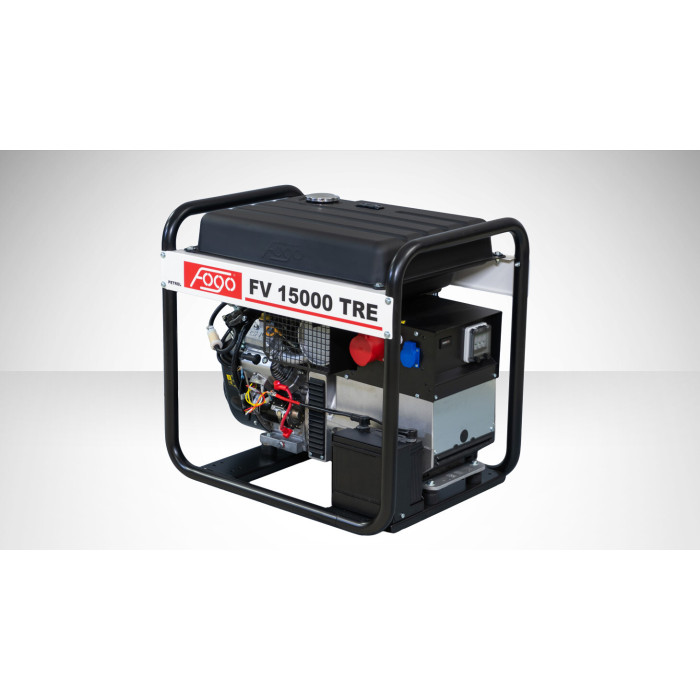

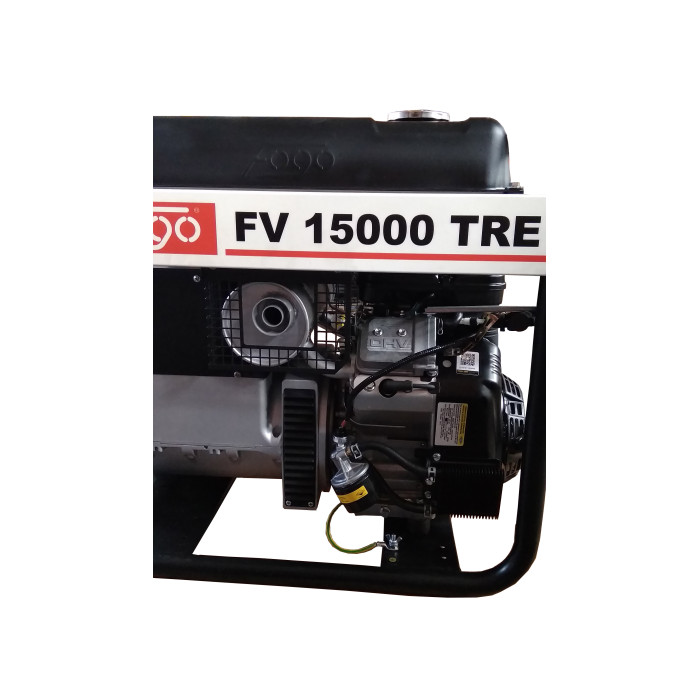

FOGO FV 15000 TRE is a three-phase gasoline generator with a Briggs+Stratton Vanguard 3854 engine. It starts via an electric starter or manually. The generator's rated power is 10 kW (3 phases) and 6.5 kW (1 phase). Rated current is 18.1 A (3 phases) and 28.3 A (1 phase). The generator features a built-in voltage stabilization system (AVR) and a thermal relay that shuts off the engine upon reaching a critical operating temperature. Additionally, it includes engine protection technology against running without oil with emergency shutdown.

The generator is highly fuel-efficient and has increased overall efficiency. Fuel consumption at 75% load is 4.9 L/hour. Equipped with a high-quality alternator from the manufacturer Sincro (Italy) with protection class IP 23.

Designed to restore power supply in the event of power grid failures or lack of other power sources, when a stationary network is unavailable or damaged.

Features:

• automatic engine shutdown at low oil level
• digital voltage regulation AVR +/- 1.5% per phase
• digital AVR system ensures operation without overloads and prevents voltage spikes with THD ≤ 5%
• overload protection
• thermal relay
• oil pressure sensor
• two protected sockets: 1ph ~ 16A 230V Schuko and 3ph ~ 32A 400V IP44
• generator protection class IP 23
• generator insulation class H
• starting current of the generator 300%
• reinforced frame profile 38 mm
• muffler with exhaust hose connection
• batteries
• operating hour meter

Package includes:

• generator
• battery
• hour meter
