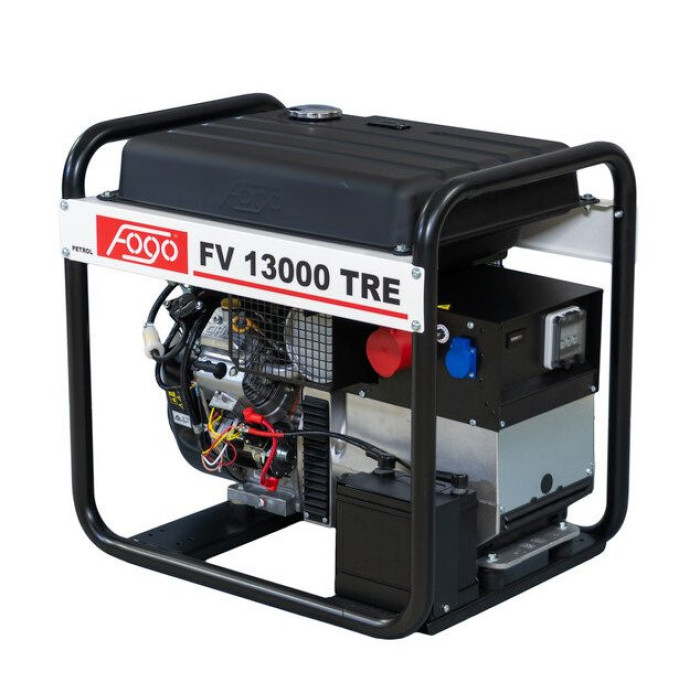

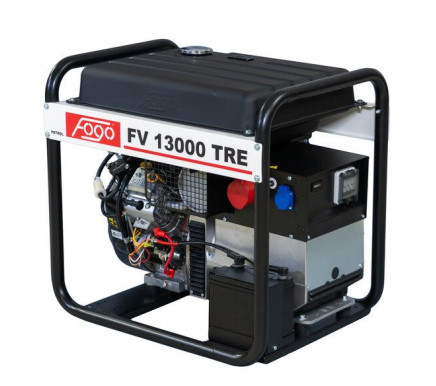

Gasoline Generator Set FOGO FV13000TRE 3ph-11.3kVA, engine B&S, tank 45L, electric start

Three-phase 4-stroke gasoline generator with Vanguard 3564 engine. Starts via electric starter or manually.

• Rated generator power: 9.04 kW (3 phases) and 6.5 kW (1 phase)
• Rated current: 16.4 A (3 phases) and 28.3 A (1 phase)
• The generator includes a built-in voltage stabilization system (AVR) and a thermal relay that stops the engine when a critical operating temperature is reached.
• Engine protection technology against running without oil with emergency shutdown is implemented.

The generator stands out for its high fuel efficiency and increased efficiency.

• Fuel consumption at 75% load – 4.5 L/hour.
• Equipped with a high-quality Sincro alternator (Italy) with IP23 protection class.

Designed to restore power supply in case of power grid failures or absence of other power sources when the stationary network is unavailable or damaged.

Features:

• Automatic engine shutdown at low oil level
• Digital voltage regulation AVR ± 1.5% per phase
• Digital AVR system guaranteeing overload-free operation and preventing voltage spikes THD ≤ 5%
• Overload protection
• Thermal relay
• Oil pressure sensor
• Two protected outlets: 1ph ~ 16A 230V Schuko and 3ph ~ 32A 400V IP44
• Generator protection class IP23
• Generator insulation class H
• Generator starting current 300%
• Reinforced 38 mm frame profile
• Muffler with exhaust hose connector
• Battery
• Operating hours meter

Additional and service equipment:

• Exhaust gas hose
• Transport kit
• Service package (air filter, spark plug, engine oil)
