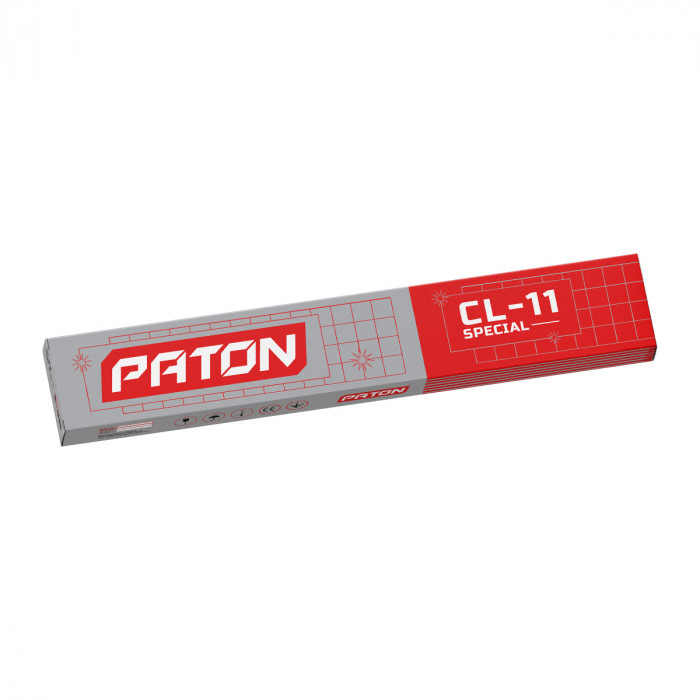

Welding electrodes CL-11 4 mm 1kg

Code: 4000152
Code: 4000152
In Stock
  • 470 грн
Pay in installments
78 hrn
x 6 month
6
6
Department of Nova Poshta
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free from UAH 3,000.
Specification
Diameter 4
Weight 1
Temporary resistance to rupture, MPa ≥540
Welded materials Structural steels with yield strength up to 420 N / mm2 (55 ksi)
Yield strength, MPa ≥350
Relative elongation,% ≥22
Impact strength, J / cm2 KCU, + 200 C ≥80
Show all specifications
Description

Electrodes are intended for welding of austenitic corrosion-resistant steels like 12Х18Н10Т, 12Х18Н9Т, 08Х18Н12Т, 08Х18Н12Б, AISI 321, AISI 304, AISI 347 and similar which work in aggressive environments at a temperature to 450 ° C. Are applied to welding of vessels. pressure, pipelines, equipment parts in the food and petrochemical industry, in power engineering.

The electrodes are characterized by excellent corrosion resistance to oxidizing media, such as nitric acid, high resistance to intergranular corrosion, easy separation of slag, uniform formation of the weld, the ability to weld both DC and AC.


Chemical composition of the weld metal:


Content of elements,%

С

0,05–0,12

Si

≤1,3

Mn

1,0–2,5

P

≤0,030

S

≤0,020

Cr

18–22

Ni

8,0–10,5

Nb

0,7–1,3



Classification:

Certificates:

EN ISO 2560-A: E 19 9 NB R 12

AWS A5.4: E 347-16

GOST 9466-75, GOST 10051-75:

Е-08H20N9G2B-CL-11-Ø-WD

Е-2005-Р20

Paton CERT

 UkrSEPRO





Welding current, welding position:

DC +

C:\Users\USER10\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\0LOV6DM8\el.jpg

Complete set
  • Welding electrodes CL-11 4 mm 1kg
