| Cable length | 15 m |
| TCS | 13 pin |
| Duty cycle | 105 А/100% PA |
| Operating temperature | from -10°C to 40°C |
| Working pressure | 5,2 bar |
| Gas speed | 140 l/min |
| Weight | 1,5 kg |
| Bikox cable | Bikox |

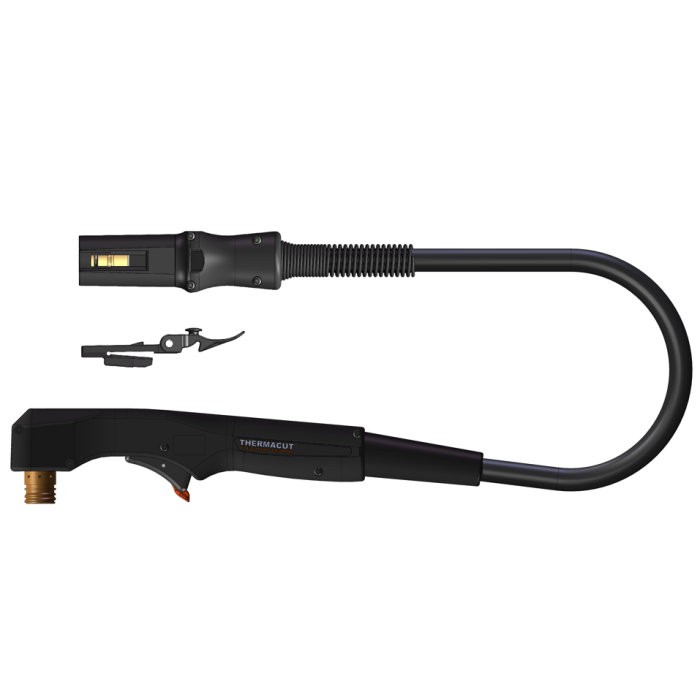

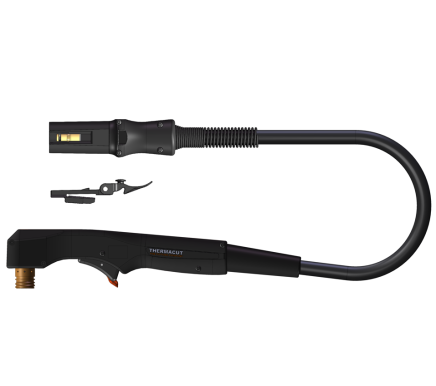

FHT-EX105RTXH — Hand Torch without consumables (“w/o consumables”) with a cable length of 15 m, TCS13 connector. (code in the manual: EX-5-140-002 — 8 m version)
Designed to work with plasma cutting sources of the EX-TRAFIRE series, with a rated current of up to 105 A.
Connection: TCS13 connector (13-pin) for quick replacement or connection of the torch.
Operating current: up to 105 A in manual mode, PN (duty cycle) 100%.
Maximum cutting thickness/recommended up to ~50 mm+ (for low-alloy steel) — figures taken from the technical passport.
Air (or nitrogen) as a carrier gas; for example, air flow ~135 l/min at 105 A.
Operating air pressure: dynamic ~5.2 bar (maximum 10 bar) according to the data sheet.
Operating temperature range: from -10 °C to +40 °C.
- Supplied without consumables (nozzle, electrode, etc.) - these elements are purchased separately.
- When ordering, pay attention to the cable length ( 5 m, 8 m, 15 m options)
- The TCS13 connector ensures compatibility with sources with the appropriate interface.
| Cable length | 15 m |
| TCS | 13 pin |
| Duty cycle | 105 А/100% PA |
| Operating temperature | from -10°C to 40°C |
| Working pressure | 5,2 bar |
| Gas speed | 140 l/min |
| Weight | 1,5 kg |
| Bikox cable | Bikox |
- 30677 грн
