Specification
| Weight, kg | 24 kg |
| Duty cycle | 100A – 50% PV, 80A- 100% PV |
| Plasma cutting method | Air-plasma |
| Warranty period | 36 months |
| Application type | Automatic |
| Country of manufacture | Czech Republic |
| Maximum cutting capacity | 50 мм |
| Mains voltage | 380 V |
| Maximum total weight | 24 kg |
| Maximum current | 100 А |
| Minimum current | 30 А |
| Current frequency | 50 Гц |
| Rated power consumption | 20.7 kW |
| machine type | Mobile |
| IP protection level | 23 |
| Width | 265 mm |
| Length | 560 mm |
| Height | 400 mm |
Show all specifications
Description
EX-TRAFIRE 100SD Thermacut (Termakat) EX-5-001-003 with a 5m cutter-three-phase inverter plasma cutting source manufactured by THERMACUT® with synergic control and air cooling of the torch.
Features:
- smooth current regulation
- P=20.7kBA,
- Ireg =30-100A,
- 100A-50%PV,
- Sр.max = 50 (35) mm
Light and powerful device designed for manual air-plasma cutting of metal up to 50 mm thick when equipped with plasma cutters FHT-EX® 105H of your choice, with a length of 5, 8, 15 and 23 m.
Implements the following technological processes:
- Standard cutting
- Mesh cutting
- Shearing
Testimonials
Specification
| Weight, kg | 24 kg |
| Duty cycle | 100A – 50% PV, 80A- 100% PV |
| Plasma cutting method | Air-plasma |
| Warranty period | 36 months |
| Application type | Automatic |
| Country of manufacture | Czech Republic |
| Maximum cutting capacity | 50 мм |
| Mains voltage | 380 V |
| Maximum total weight | 24 kg |
| Maximum current | 100 А |
| Minimum current | 30 А |
| Current frequency | 50 Гц |
| Rated power consumption | 20.7 kW |
| machine type | Mobile |
| IP protection level | 23 |
| Width | 265 mm |
| Length | 560 mm |
| Height | 400 mm |

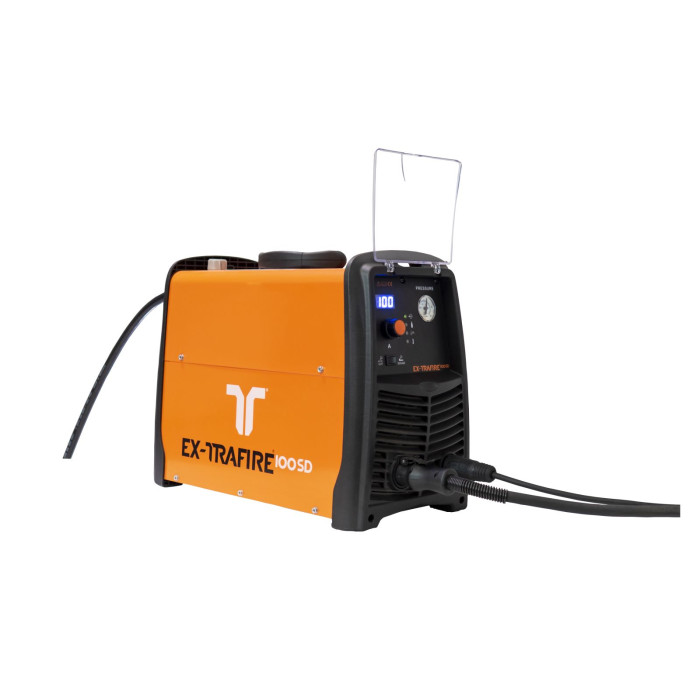

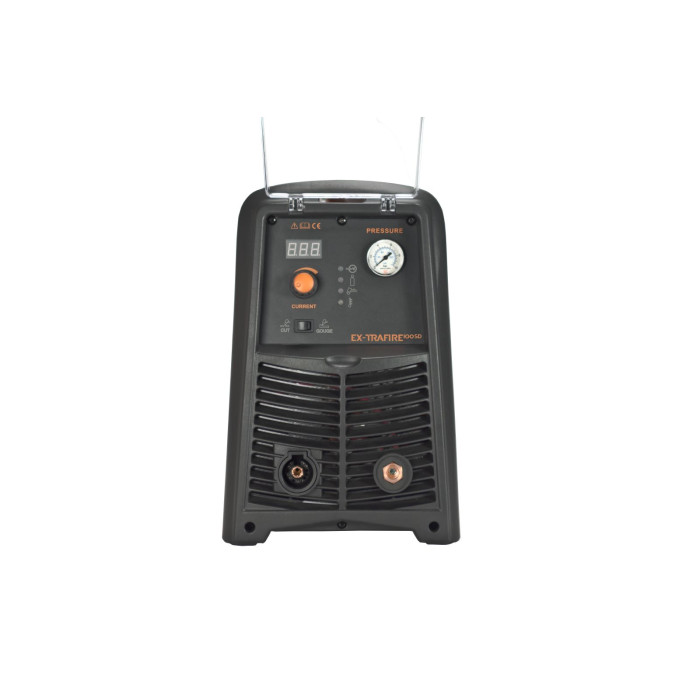

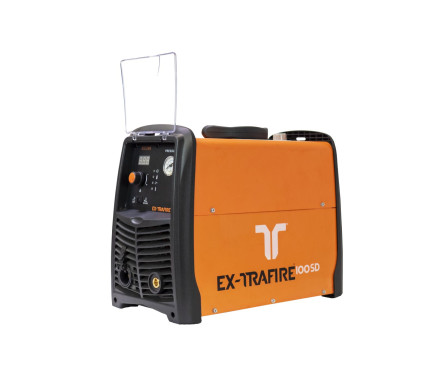

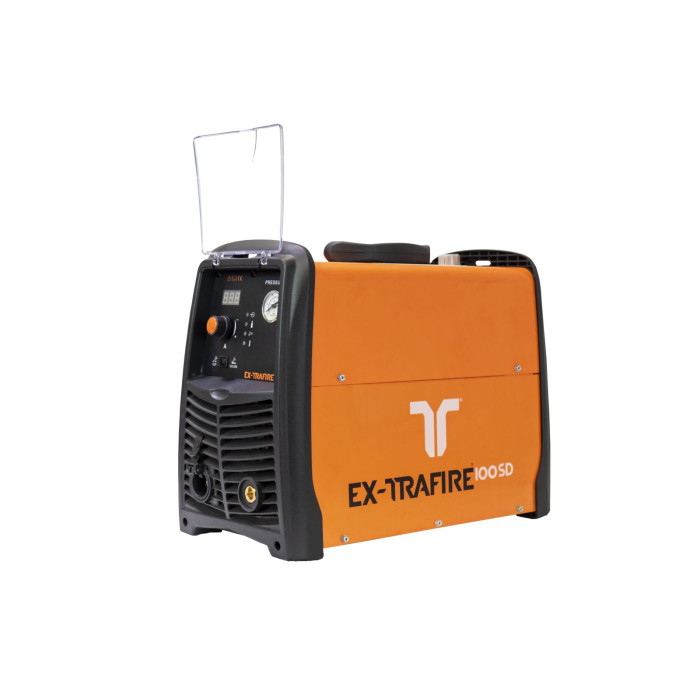

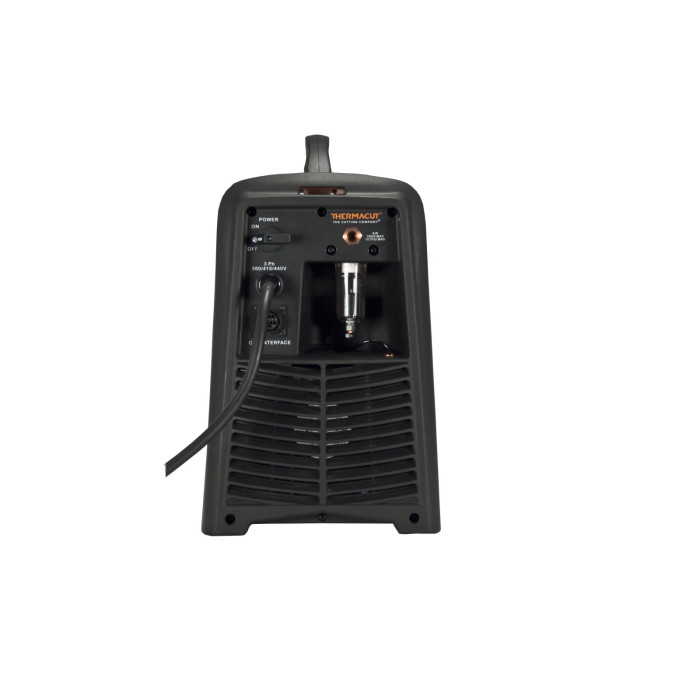

Plasma cutting machine EX-TRAFIRE 100SD 400V (without cutter) THERMACUT
Code: EX-5-001-003
In Stock
- 82374 грн
