-11%
Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 29,5 … 35 |
| Rated welding current (A) | 250 |
| Maximum operating current, A | 335 |
| Operating load factor | 45% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 12 - 250 |
| Limits of regulation of speed of giving of a wire, m / min. | 2,0 … 16 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Diameter of solid welding wire, mm | 0,6 - 1,2 |
| PULSE function | MIG/MAG/MMA/TIG |
| Weight of the coil no more, kg | 5 |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 6,6-7,8 |
| Maximum consumption,power kVA | 9,5 |
| Cooling | Forced |
| Overall dimensions, WxLxH, mm | 250х435х298 |
| Gross weight, kg | 18 |
| Weight, kg | 11,5 |
| Protection rate | IP33 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

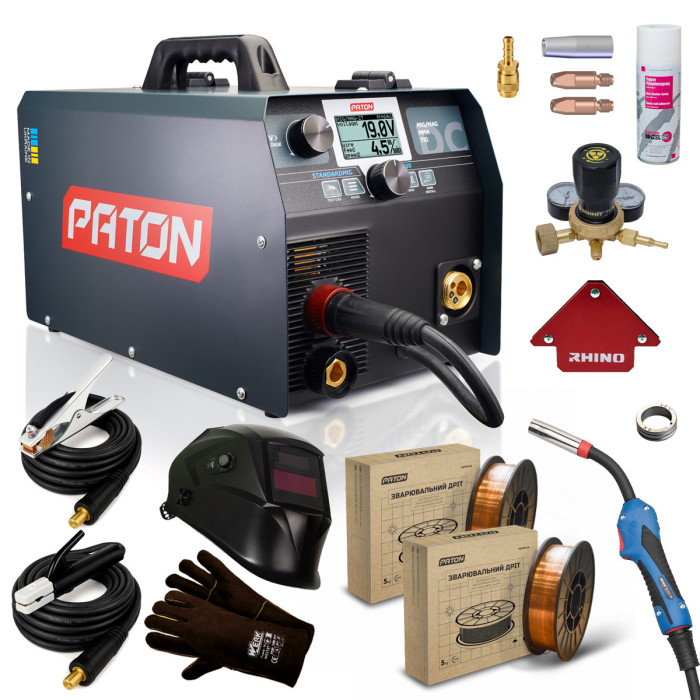

PATON StandardMIG-250 welding set is a specially selected set for safe and comfortable semi-automatic welding (MIG/MAG), manual arc welding (MMA). It is ideal for domestic and semi-industrial use. The kit includes high-quality personal protective equipment (mask, leggings), copper-coated welding wire with a diameter of 0.8 mm and 1 mm, a reducer, a gas hose, magnetic squares, accessories, and consumables for MIG/MAG welding.
Complete set
- PATON StandardMIG-250 welding machine
- ABIMIG A257 LW semi-automatic torch, 3 m
- Copper cable (3 m) with ABICOR BINZEL DE2200 electrode holder
- Copper cable (3 m) with Abicor Binzel MK300 ground clamp
- Roller sets for 4 wire diameters
- Quick-release gas hose connector
- Operating instructions
- Artotic Sun9F (Black) WH.S9F001 welding mask
- Werk BLACK gloves
- Magnetic welding square (up to 23 kg) - 2 pcs.
- Paton wire, 0.8 mm, 5 kg
- Paton wire, 1 mm, 5 kg
- Tip, E-Cu - M6 D 1.0/8.0/28 (140.0242) - 5 pcs.
- Tip, E-Cu - M6 D 0.8/8.0/28 (140.0051) - 5 pcs.
- Nozzle 145.D375.5 - 2 pcs.
- BINZEL spray (400 ml)
- AP-40/U-30-4DM reducer
- Hose for gas welding and cutting metals III-9.0-2.0, 10 m
Additional materials
Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 29,5 … 35 |
| Rated welding current (A) | 250 |
| Maximum operating current, A | 335 |
| Operating load factor | 45% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 12 - 250 |
| Limits of regulation of speed of giving of a wire, m / min. | 2,0 … 16 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Diameter of solid welding wire, mm | 0,6 - 1,2 |
| PULSE function | MIG/MAG/MMA/TIG |
| Weight of the coil no more, kg | 5 |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 6,6-7,8 |
| Maximum consumption,power kVA | 9,5 |
| Cooling | Forced |
| Overall dimensions, WxLxH, mm | 250х435х298 |
| Gross weight, kg | 18 |
| Weight, kg | 11,5 |
| Protection rate | IP33 |

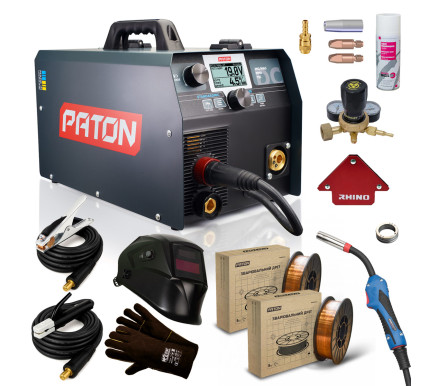

Welding set «PATON StandardMIG-250»
Code: 5020203001
In Stock
- 34189 грн
- 30520 грн
