Specification
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 17,7 |
| Rated welding current (A) | 350 |
| Maximum operating current, A | 450 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 50 - 350 |
| Dimensions L / W / H | 390 х 145 х 335 |
| Diameter of a stick electrode, mm | 2-6 |
| Machine weight | 9,8 |
| Warranty period, month | 36 |
| «Hot-Start» | Auto |
| «Arc-Force» | Auto |
| «Anti-Stick» | Auto |
| Idling voltage, V | up to 80 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 11,7 |
| Maximum consumption,power kVA | 15,2 |
| Efficiency, % | 90 |
| Cooling | Forced |
| Protection rate | IP33 |
Show all specifications
Duty cycle – 70%
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

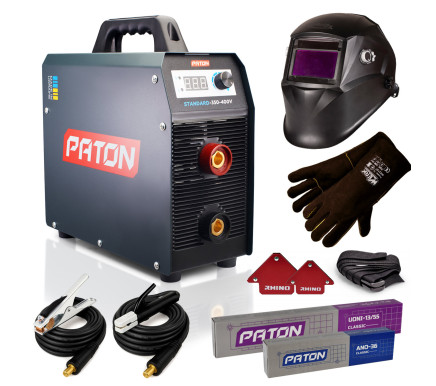

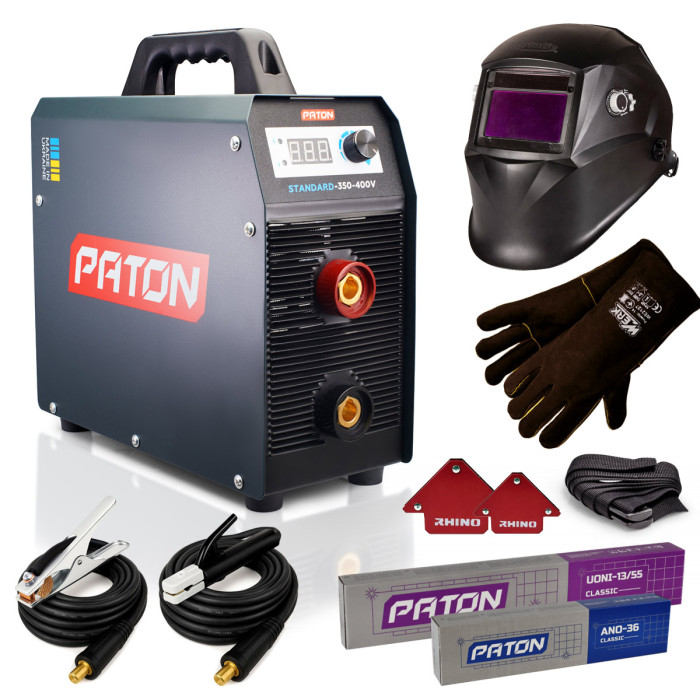

PATON Standard-350-400V welding set is a specially selected set for safe and comfortable manual arc welding (MMA). It is well suited for construction and use by professional construction crews in small and large construction projects. The kit includes high-quality personal protective equipment (mask, leggings), ANO-36 and UONI 13/55 electrodes, magnets, a branded PATON case, and welding accessories.
Complete set
- PATON Standard-350-400V welding machine
- shoulder carrying strap
- copper cable (3 m) with Abicor Binzel DE2300 electrode holder
- copper cable (3 m) with Abicor Binzel MK300 ground clamp
- PATON™ branded corrugated box
- operating instructions
- Artotic Sun7B WH.S7B001 welding mask
- Werk BLACK gloves
- ANO-36 4 mm welding electrodes, 5 kg
- PATON E7015 UONI 13/55 f4 welding electrodes, 5 kg
- magnetic welding square (up to 23 kg)
- magnetic welding square (up to 34 kg)
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 17,7 |
| Rated welding current (A) | 350 |
| Maximum operating current, A | 450 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 50 - 350 |
| Dimensions L / W / H | 390 х 145 х 335 |
| Diameter of a stick electrode, mm | 2-6 |
| Machine weight | 9,8 |
| Warranty period, month | 36 |
| «Hot-Start» | Auto |
| «Arc-Force» | Auto |
| «Anti-Stick» | Auto |
| Idling voltage, V | up to 80 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 11,7 |
| Maximum consumption,power kVA | 15,2 |
| Efficiency, % | 90 |
| Cooling | Forced |
| Protection rate | IP33 |
Welding set “PATON Standard-350-400V”
Code: 5020103001
In Stock
- 25925 грн
- 23560 грн
