Specification
| Rated power supply voltage, V | 380/400 |
| Rated welding current (A) | 315 |
| Operating load factor | 50% (АС) |
| Power supply voltage range (V) | ±10% |
| Welding current control range (A) | 10 - 315 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Contactless arc ignition | + |
| Warranty period, month | 12 |
| Welding current indication | + |
| Memorizing modes | + |
| Starting current regulation, A | 10...300 |
| Regulation of current rise time, sec | 0...15 |
| Idling voltage, V | 80 |
| Regulation of the downslope time, sec | 0...25 |
| Frequency of alternating welding current, Hz | 15...70 |
| Polarity balance when welding on alternating current,% | 15...90 |
| Rated power consumption, kVA | 13,5 |
| Torch trigger mode | 2Т, 4Т |
| Protection rate | IP23 |
| Weight (without accessories), kg | 76 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description
Welding Set "PATON ProTIG-315-400V AC/DC WK" is a specially selected kit for professional TIG welding, offering a complete, ready-to-use solution for industrial applications.

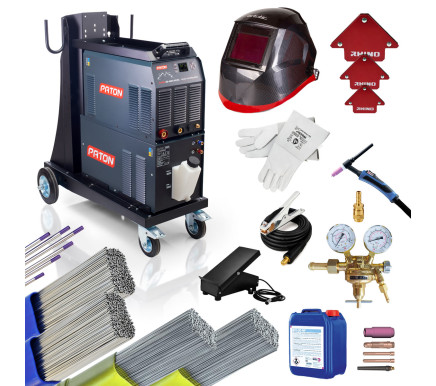

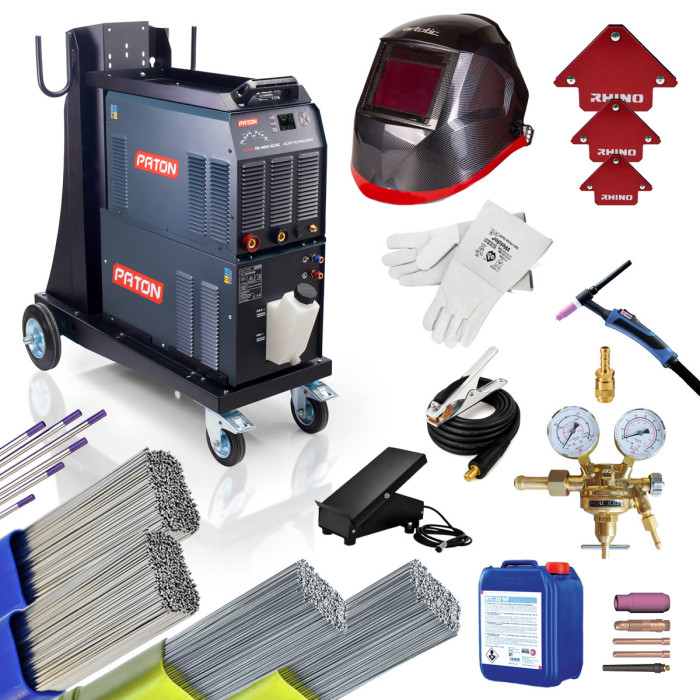

The set includes the industrial welding machine PATON™ ProTIG-315-400V AC/DC paired with an Abicor Binzel ABITIG-18 TIG torch with liquid cooling, as well as additional equipment: the autonomous cooling unit PATON™ Cooler-7S-400V, PATON 315 TIG trolley, welding cable with ground clamp, filler rods, tungsten electrodes, and consumables for TIG welding.
This set ensures stable performance when welding aluminum, stainless steel, and other non-ferrous metals using AC or DC up to 315 A, guaranteeing high productivity, precision, and comfort for the professional welder.
Complete set
- PATON ProTIG-315-400V AC/DC WK welding machine
- PATON Cooler-7S-400V autonomous cooling unit
- Welding current control pedal
- ABITIG-18 argon arc torch with liquid cooling (4 m)
- PATON 315 TIG trolley
- Welding cable with ground clamp (4 m)
- Quick-release connection for argon
- PATON™ branded corrugated box
- Operating instructions
- AL Mg ER5356 aluminum rod, 2.0 mm
- Aluminum rod AL Mg ER5356 f 2.4
- Stainless steel rod ER308 f 2.0
- Stainless steel rod ER308 f 2.4
- WL 2.4*175 tungsten electrode (t)
- Ceramic nozzle No. 7 ( 701.0110 ) - 2 pcs.
- HERCULES Ar/CO2 (argon/carbon dioxide) reducer (514,D051)
- Hose for gas welding and cutting metals III-9.0-2.0, 5 m
- Magnetic welding square (up to 23 kg) - 2 pcs.
- Magnetic welding square (up to 34 kg)
- Magnetic welding square (up to 45 kg)
- Collet WE-D 2.0 mm (702.0012)
- Collet WE-D 2.4 mm (702.0009) - 2 pcs.
- Collet body WE-D 2.0-2.4 mm (701.0196 ) - 2 pcs.
- Long cap SRT 17,26,18 (712.1051)
- Cooling agent VTS-20 NF 5 l canister- 2 pcs.
Welding helmet Artotic Sun9L (STEEL POWER) WH.S9L108C
-
ARDON welder’s gloves for precision work (model: GLEN)
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 380/400 |
| Rated welding current (A) | 315 |
| Operating load factor | 50% (АС) |
| Power supply voltage range (V) | ±10% |
| Welding current control range (A) | 10 - 315 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Contactless arc ignition | + |
| Warranty period, month | 12 |
| Welding current indication | + |
| Memorizing modes | + |
| Starting current regulation, A | 10...300 |
| Regulation of current rise time, sec | 0...15 |
| Idling voltage, V | 80 |
| Regulation of the downslope time, sec | 0...25 |
| Frequency of alternating welding current, Hz | 15...70 |
| Polarity balance when welding on alternating current,% | 15...90 |
| Rated power consumption, kVA | 13,5 |
| Torch trigger mode | 2Т, 4Т |
| Protection rate | IP23 |
| Weight (without accessories), kg | 76 |
Welding set «PATON ProTIG-315-400V AC/DC WK»
Code: 5020304002
In Stock
- 115556 грн
- 103480 грн
