Welding Set «PATON ProMIG-500-15-4-400V WK»

-9%
Welding Set «PATON ProMIG-500-15-4-400V WK»
Code: 5020204005
In Stock
  • 149065 грн
  • 136220 грн
Quick Checkout
Pay in installments
24844 hrn
x 6 month
6
6
6
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 30 ... 35,5
Rated welding current (A) 500
Maximum operating current, A 630
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 16 - 500
Diameter of a stick electrode, mm 1,6-8
Diameter of solid welding wire, mm 0,6 - 1,6
PULSE function MMA, MIG/MAG, TIG
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 19,9-23,6
Maximum consumption,power kVA 29,0
Cooling Adaptive
Protection rate IP23
Weight (without accessories), kg 87,2
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

Welding Set "PATON ProMIG-500-15-4-400V WK" is a comprehensive solution designed for use with the PATON ProMIG-500-15-4-400V WK semi-automatic welding machine, intended for professional and industrial applications.

The PATON ProMIG-500-15-4-400V WK is a digital inverter semi-automatic welder designed for industrial use. It supports semi-automatic welding (MIG/MAG), manual metal arc welding (MMA), and tungsten inert gas welding (TIG), all with direct current in shielding gas or gas mixtures.

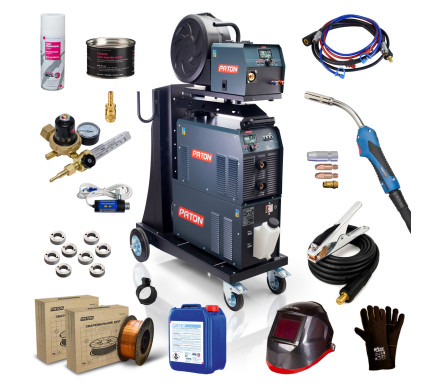

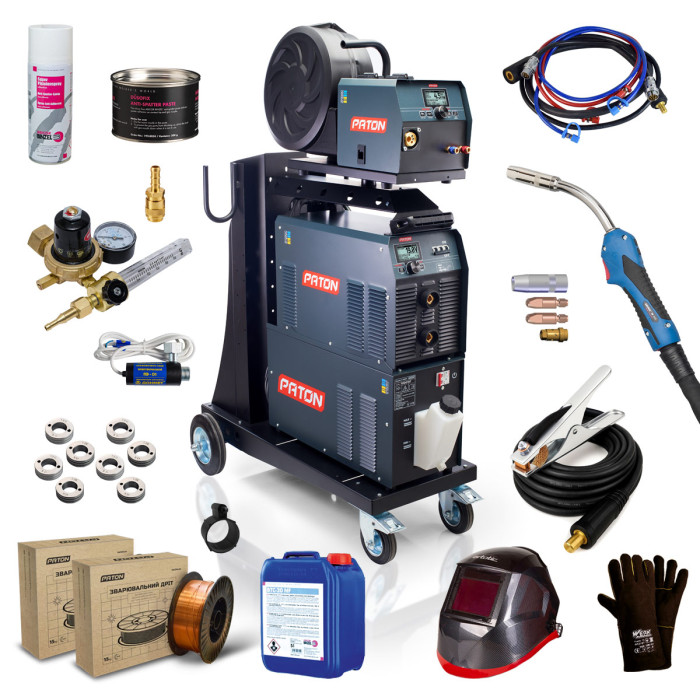

The set includes high-quality personal protective equipment (welding helmet, gloves), a gas hose, a gas regulator, a grounding cable with clamp, the autonomous cooling unit Cooler-7, the PATON 360 trolley, a semi-automatic welding torch, and a full range of consumables for MIG/MAG welding.

Complete set

  • PATON ProMIG-500-15-4-400V welding machine

  • Wire feeder

  • Autonomous cooling unit Cooler-7

  • PATON 360 welding cart

  • Copper cable (5 m) with “ground” clamp ABICOR BINZEL

  • Sets of rollers for 4 steel wire diameters and 2 aluminum wire diameters

  • Fitting for quick connection of the gas hose

  • User manual for ProMIG-500-15-4-400V

  • User manual for Cooler-7

  • Torch ABIMIG W440 3 m WZ-2 (766.1533.1)

  • Communication cable set KKK-500-1PW

  • Welding helmet Artotic Sun9L (STEEL POWER) WH.S9L108C

  • Werk gloves (BLACK)

  • "Paton" welding wire Ø1.2 mm, 15 kg

  • "Paton" welding wire Ø1.6 mm, 15 kg

  • Gas nozzle M20 NW14.5 L66 (145.D092.5) – 3 pcs

  • Pressure regulator AR40/U30 – 2DM (with rotameter)

  • Gas hose for welding and metal cutting III-9.0-2.0, 5 m

  • Contact tip E-Cu-M8 Ø1.2/10/30 (140.0442) – 5 pcs

  • Contact tip E-Cu-M8 Ø1.6/10/30 (140.0587) – 5 pcs

  • Tip holder insert M10/M8/28 mm (142.0253.5)

  • Preheater PE-01

  • BINZEL spray (400 ml)

  • Düsofix paste, 300 g

  • Plastic adapter for 5 kg wire spool

  • Cooling agent BTC-20 NF, 10 L

Additional materials
Testimonials
Leave a review
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 30 ... 35,5
Rated welding current (A) 500
Maximum operating current, A 630
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 16 - 500
Diameter of a stick electrode, mm 1,6-8
Diameter of solid welding wire, mm 0,6 - 1,6
PULSE function MMA, MIG/MAG, TIG
Warranty period, month 24
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 19,9-23,6
Maximum consumption,power kVA 29,0
Cooling Adaptive
Protection rate IP23
Weight (without accessories), kg 87,2
