Specification
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 16 ... 18,5 |
| Rated welding current (A) | 350 |
| Maximum operating current, A | 450 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 14 - 350 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Diameter of solid welding wire, mm | 0,6 - 1,4 |
| PULSE function | MMA, MIG/MAG, TIG |
| Weight of the coil no more, kg | 15 |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 10,7-12,3 |
| Maximum consumption,power kVA | 15,3 |
| Cooling | Adaptive |
| Protection rate | IP33 |
| Weight (without accessories), kg | 81,9 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description
PATON ProMIG-350-15-4-400V WK welding set is a comprehensive solution for working with the PATON ProMIG-350-15-4 WK semi-automatic machine, designed for professional and industrial use.
The PATON ProMIG-350-15-4 WK inverter digital semi-automatic machine is a device for industrial use, designed for semi-automatic welding (NA “MIG / MAG”), manual arc welding (MMA) and argon arc welding (TIG), with direct current, in a protective gas and mixture environment.

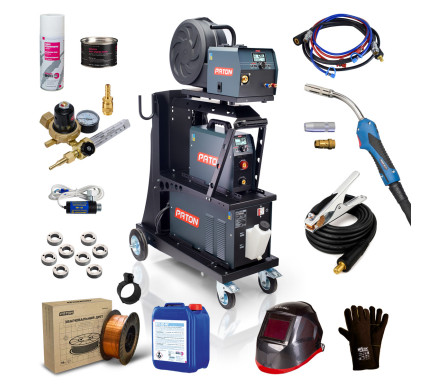

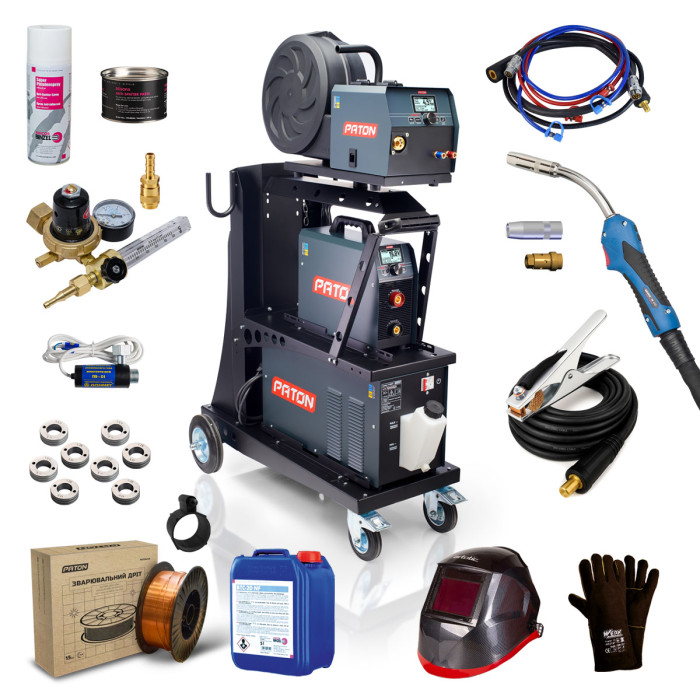

The kit comes with high-quality personal protective equipment (mask, leggings), a reducer, a gas hose, a reducer, a cable with a ground clamp, a Cooler-7 autonomous cooling unit, a semi-automatic torch, and consumables for MIG/MAG welding.
Complete set
- PATON ProMIG-350-15-4 WK welding machine
- Wire feed device
- Cooler-7 autonomous cooling unit
- PATON™ universal trolley
- Copper cable (3 m) with ABICOR BINZEL MK300 ground clamp
- Roller sets for 4 steel wire diameters and 2 aluminum wire diameters
- Quick-release gas hose connector
- ProMIG-350-15-4-400V operating instructions
- Cooler-7 operating instructions
- Shoulder carrying strap
- ABIMIG W440 3m WZ-2 torch (766.1533.1)
- KKK-350-1PW communication cable set
- Artotic Sun9L (STEEL POWER) welding mask WH.S9L108C
- Werk gloves BLACK
- Paton wire, 1.2 mm, 15 kg - 2 pcs.
- Gas nozzle M20 NW14.5 L66 (145.D092.5) - 3 pcs.
- Reducer AR40/U30 - 2DM (with rotameter)
- Hose for gas welding and cutting metals III-9.0-2.0, 5 m
- Tip, E-Cu-M8 D 1.2/10/30 (140.0442) - 5 pcs.
- Insert for tip M10/M8/28 mm (142.0253.5)
- PE-01 heater
- BINZEL spray (400 ml) (white)
- Düsofix paste, 300 g
- Plastic adapter for 5 kg coil
- VTS-20 NF cooling agent, 10 l
Testimonials
Specification
| Rated power supply voltage, V | 380/400 |
| Rated current consumption from the mains phase, А | 16 ... 18,5 |
| Rated welding current (A) | 350 |
| Maximum operating current, A | 450 |
| Operating load factor | 70% |
| Power supply voltage range (V) | ±15% |
| Welding current control range (A) | 14 - 350 |
| Diameter of a stick electrode, mm | 1,6-6 |
| Diameter of solid welding wire, mm | 0,6 - 1,4 |
| PULSE function | MMA, MIG/MAG, TIG |
| Weight of the coil no more, kg | 15 |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 10,7-12,3 |
| Maximum consumption,power kVA | 15,3 |
| Cooling | Adaptive |
| Protection rate | IP33 |
| Weight (without accessories), kg | 81,9 |
Welding set «PATON ProMIG-350-15-4-400V WK»
Code: 5020204004
In Stock
- 108715 грн
- 99390 грн
