Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 29,5 … 35 |
| Rated welding current (A) | 250 |
| Maximum operating current, A | 335 |
| Rated input current from mains, А | 12 – 28 |
| Operating load factor | 60% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 12 – 250 |
| Diameter of a stick electrode, mm | 1,6 – 6,0 |
| Diameter of solid welding wire, mm | 0,6 – 1,2 |
| Number of rollers of the wire feed mechanism | 4 |
| PULSE function | MIG/MAG/MMA/TIG |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 6,6 … 7,8 |
| Maximum consumption,power kVA | 9,5 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 260х360х270 |
| Protection rate | IP33 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

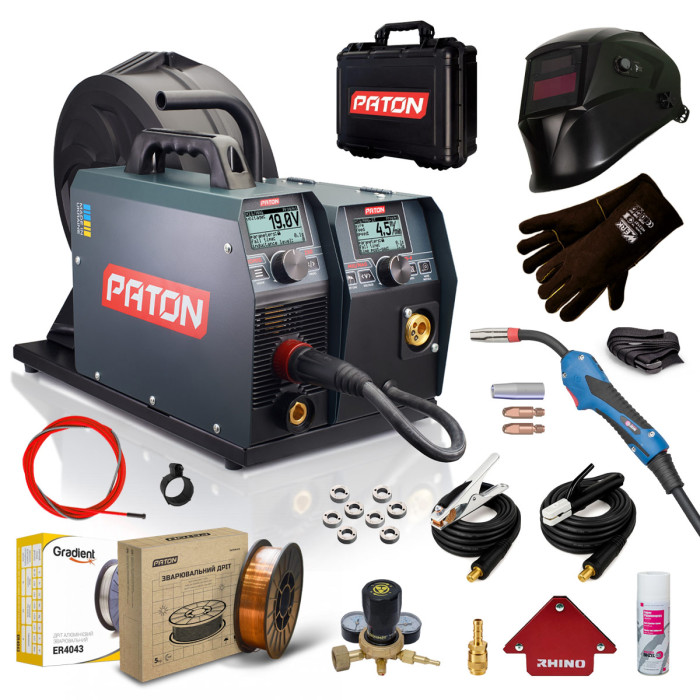

Welding Set "PATON ProMIG-250-15-4" is a specially selected kit designed for safe and comfortable welding, intended for professional use in MIG/MAG and MMA welding modes.
The set includes high-quality personal protective equipment (helmet, gloves), copper-coated and aluminum welding wires, magnetic holders, a gas hose for welding and cutting metals, a gas regulator, a set of welding cables, a semi-automatic torch, and all necessary consumables for MIG/MAG welding.
Complete set
- PATON ProMIG-250-15-4 welding machine
- shoulder carrying strap
- PATON™ branded corrugated box
- ABIMIG A155 LW semi-automatic torch, 3 m
- copper cable (3 m) with ABICOR BINZEL DE2200 electrode holder
- copper cable (3 m) with Abicor Binzel MK300 ground clamp
- roller sets for 4 wire diameters
- quick-release gas hose connector
- user manual
- Artotic Sun7B WH.S7B001 welding helmet
- Werk gloves BLACK
- magnetic welding square (up to 34 kg) - 2 pcs.
- Paton wire, 1 mm, 5 kg
- ER4043 aluminum wire, 1.0 mm (2 kg)
- E-Cu/Alu tip, M6 D 1.0/8.0/28 (141.0006) - 2 pcs.
- E-Cu terminal, M6 D 1.0/8.0/28 (140.0242) - 5 pcs.
- Nozzle 145.D375.5 - 3 pcs.
- BINZEL spray (400 ml)
- AP-40/U-30-4DM reducer
- Hose for gas welding and cutting metals III-9.0-2.0, 10 m
- Plastic adapter for 5 kg coil
- Teflon channel 2.0x4.0x350 (red) (126.0021)
- PATON universal plastic case
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 29,5 … 35 |
| Rated welding current (A) | 250 |
| Maximum operating current, A | 335 |
| Rated input current from mains, А | 12 – 28 |
| Operating load factor | 60% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 12 – 250 |
| Diameter of a stick electrode, mm | 1,6 – 6,0 |
| Diameter of solid welding wire, mm | 0,6 – 1,2 |
| Number of rollers of the wire feed mechanism | 4 |
| PULSE function | MIG/MAG/MMA/TIG |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 6,6 … 7,8 |
| Maximum consumption,power kVA | 9,5 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 260х360х270 |
| Protection rate | IP33 |

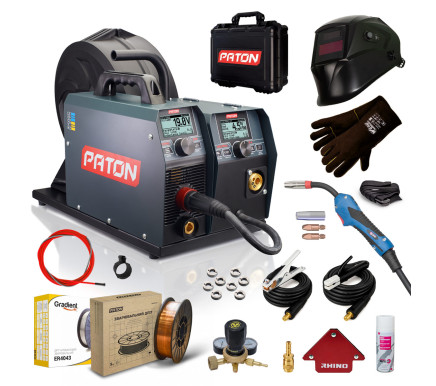

Welding set «PATON ProMIG-250-15-4»
Code: 5020204002
2-3 Days
