Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 23 … 27 |
| Rated welding current (A) | 200 |
| Maximum operating current, A | 270 |
| Rated input current from mains, А | 12 – 26 |
| Operating load factor | 70% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 10 - 200 |
| Diameter of a stick electrode, mm | 1,6-5,0 |
| Diameter of solid welding wire, mm | 0,6 - 1 |
| Number of rollers of the wire feed mechanism | 2 |
| PULSE function | MIG/MAG/MMA/TIG |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 5,1-6,1 |
| Maximum consumption,power kVA | 7,5 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 260х360х270 |
| Weight, kg | 13,2 |
| Protection rate | IP33 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description
PATON ProMIG-200-15-2 welding set is a specially selected set for safe and comfortable welding, designed for professional use in MIG/MAG/MMA welding modes. The kit includes high-quality personal protective equipment (mask, leggings), welding wire with a diameter of 0.8 mm and 1 mm, magnets, a reducer, a hose for gas welding, metal cutting, a reducer and a set of welding cables, a semi-automatic torch, and consumables for MIG/MAG welding.
Complete set
- PATON ProMIG-200-15-2 welding machine
- Shoulder carrying strap
- PATON™ branded corrugated box
- ABIMIG A155 LW semi-automatic torch, 3 m
- Copper cable (3 m) with ABICOR BINZEL DE2200 electrode holder
- Copper cable (3 m) with Abicor Binzel MK300 ground clamp
- Roller sets for 4 wire diameters
- Quick-release gas hose connector
- Operating instructions
- Artotic Sun9F welding mask (Black) WH.S9F001
- Werk gloves BLACK
- Magnetic welding square (up to 23 kg) - 2 pcs.
- Paton wire, 0.8 mm, 5 kg
- Paton wire, 1 mm, 5 kg
- E-Cu M6 D 1.0/6.0/25 tip (140.0253 )
- Tip, E-Cu - M6 D 0.8/6.0/25 (140.0059) - 5 pcs.
- Gas nozzle, electroplated D 12.0/20/52 mm (145.D001) - 2 pcs.
- BINZEL spray (400 ml)
- AP-40/U-30-4DM reducer
- Hose for gas welding and cutting metals III-9.0-2.0, 10 m
- Plastic adapter for 5 kg coil
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 23 … 27 |
| Rated welding current (A) | 200 |
| Maximum operating current, A | 270 |
| Rated input current from mains, А | 12 – 26 |
| Operating load factor | 70% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 10 - 200 |
| Diameter of a stick electrode, mm | 1,6-5,0 |
| Diameter of solid welding wire, mm | 0,6 - 1 |
| Number of rollers of the wire feed mechanism | 2 |
| PULSE function | MIG/MAG/MMA/TIG |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 5,1-6,1 |
| Maximum consumption,power kVA | 7,5 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 260х360х270 |
| Weight, kg | 13,2 |
| Protection rate | IP33 |

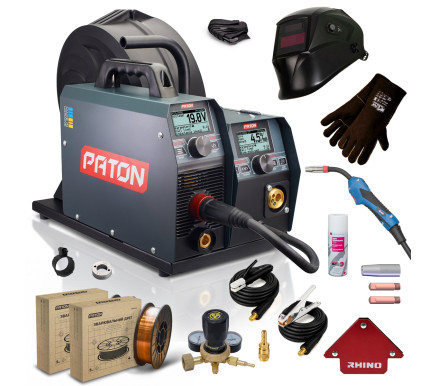

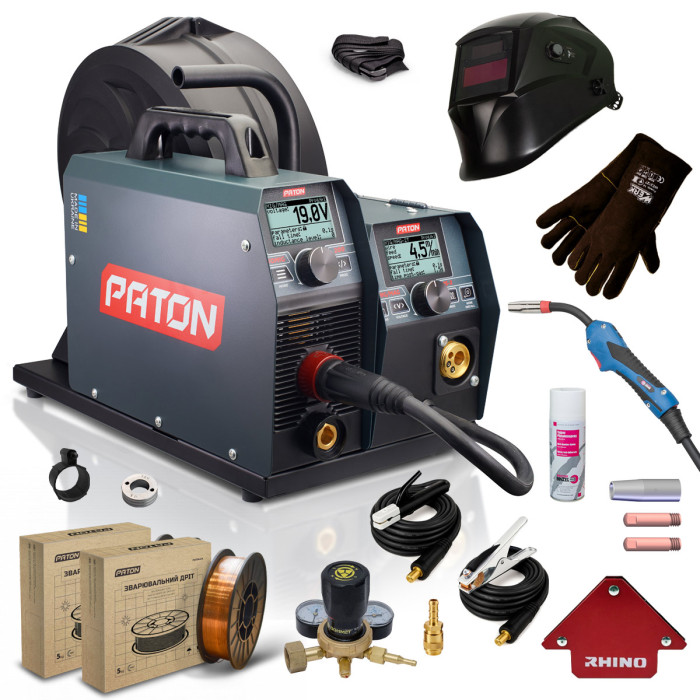

Welding set «PATON ProMIG-200-15-2»
Code: 5020204001
In Stock
- 33641 грн
- 29730 грн
