Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 29,5-35 |
| Rated welding current (A) | 250 |
| Maximum operating current, A | 335 |
| Operating load factor | 70% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 12 - 250 |
| Diameter of a stick electrode, mm | 1,6-6,0 |
| Diameter of solid welding wire, mm | 0,6 - 1,2 |
| PULSE function | MMA, MIG/MAG, TIG |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 6,5-7,7 |
| Maximum consumption,power kVA | 9,4 |
| Efficiency, % | 92 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 115х345х290 |
| Weight, kg | 5,9 |
| Protection rate | IP33 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

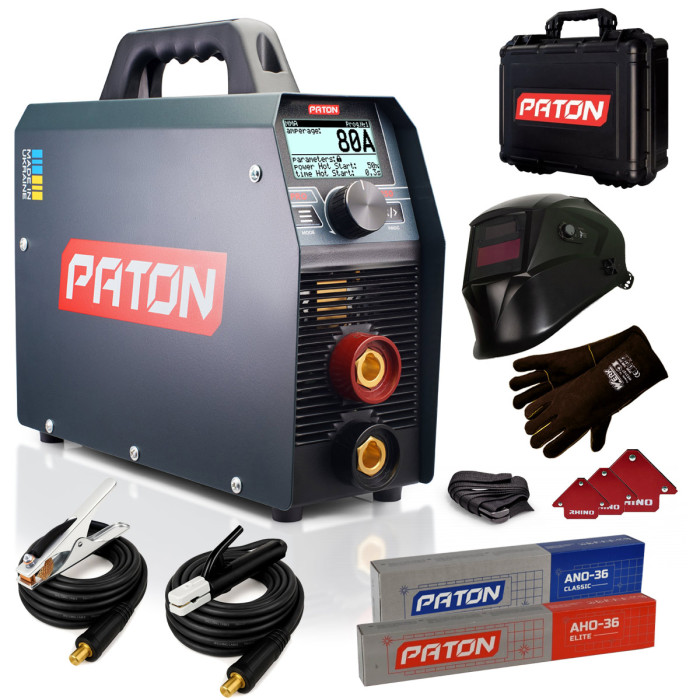

PATON PRO-250 welding kit is a specially selected set for safe and comfortable welding, designed for professional use in MMA and TIG welding modes. The kit includes high-quality personal protective equipment, ELITE and CLASSIC series electrodes, a case, magnets, and welding accessories.
Complete set
- PATON PRO-250 welding machine
- shoulder carrying strap
- copper cable (3 m) with Abicor Binzel DE2300 electrode holder
- copper cable (3 m) with Abicor Binzel MK300 ground clamp
- PATON™ branded case
- user manual
- Artotic Sun9F (Black) WH.S9F001 welding mask
- Werk BLACK gloves
- ANO-36 CLASSIC 3 mm welding electrodes, 2.5 kg
- ANO-36 ELITE 4 mm welding electrodes, 2.5 kg
- magnetic welding square (up to 11 kg)
- magnetic welding square (up to 23 kg)
- Magnetic welding square (up to 34 kg)
Additional materials
Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 29,5-35 |
| Rated welding current (A) | 250 |
| Maximum operating current, A | 335 |
| Operating load factor | 70% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 12 - 250 |
| Diameter of a stick electrode, mm | 1,6-6,0 |
| Diameter of solid welding wire, mm | 0,6 - 1,2 |
| PULSE function | MMA, MIG/MAG, TIG |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 6,5-7,7 |
| Maximum consumption,power kVA | 9,4 |
| Efficiency, % | 92 |
| Cooling | Adaptive |
| Overall dimensions, WxLxH, mm | 115х345х290 |
| Weight, kg | 5,9 |
| Protection rate | IP33 |

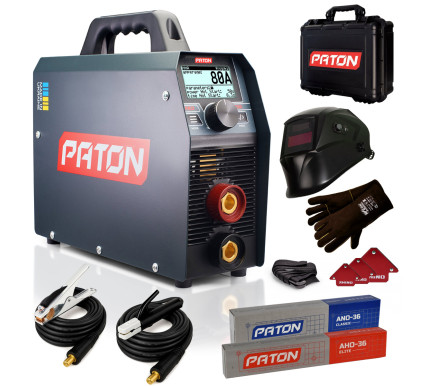

Welding set “PATON PRO-250”
Code: 5020104002
In Stock
- 20095 грн
- 17650 грн
