Specification
| Cooling | Adaptive |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 18-21 |
| Rated welding current (A) | 160 |
| Maximum operating current, A | 215 |
| Operating load factor | 70% |
| Power supply voltage range (V) | 160 - 260 |
| Welding current control range (A) | 8 - 160 |
| Diameter of a stick electrode, mm | 1,6-4,0 |
| Diameter of solid welding wire, mm | 0,6 - 1 |
| PULSE function | MMA, MIG/MAG, TIG |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 4,0-4,6 |
| Maximum consumption,power kVA | 5,8 |
| Efficiency, % | 92 |
| Overall dimensions, WxLxH, mm | 115х345х290 |
| Protection rate | IP33 |
| Weight (without accessories), kg | 5,2 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

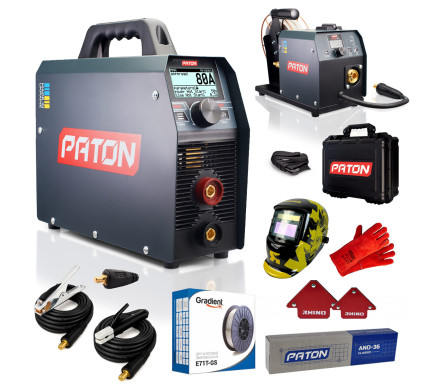

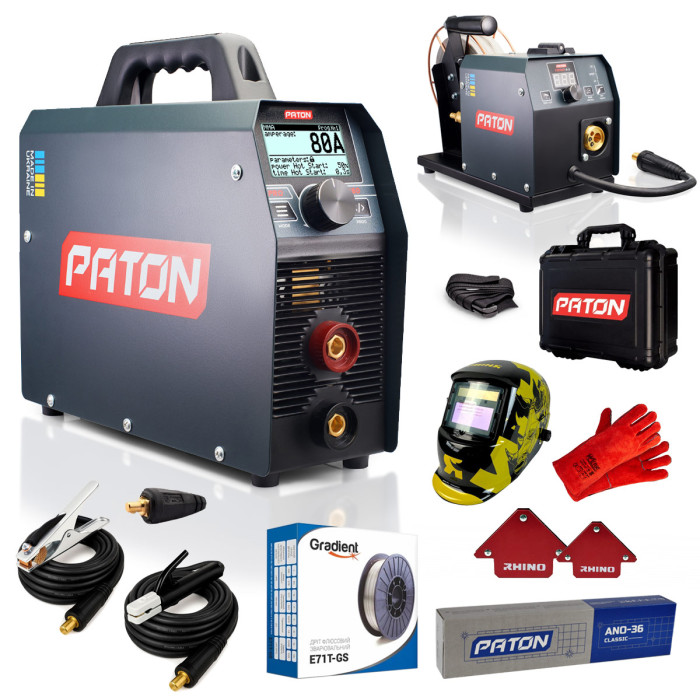

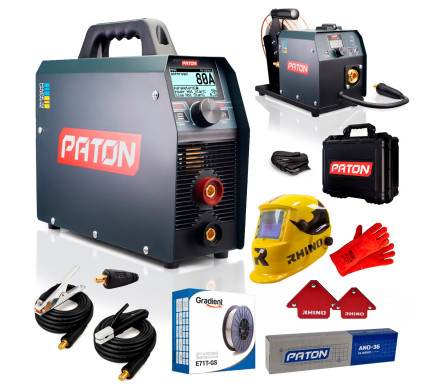

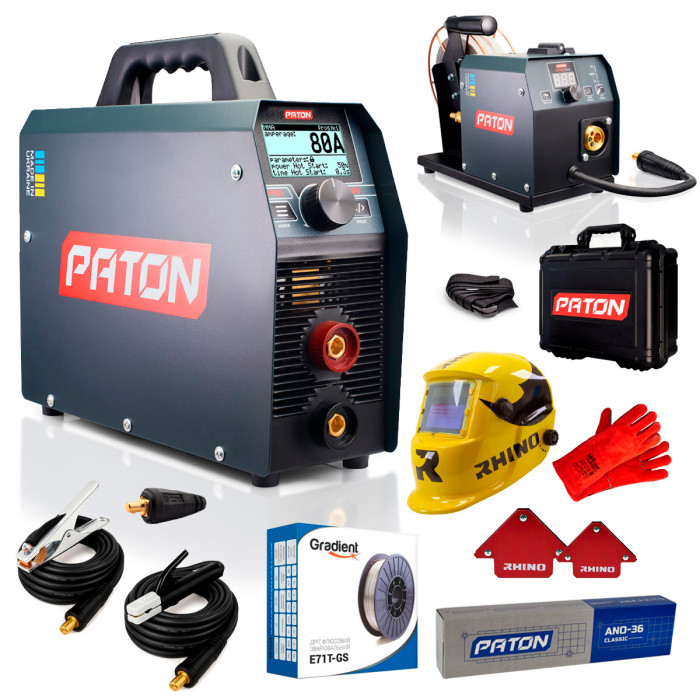

PATON PRO-160 welding set is a specially selected kit for safe and comfortable welding, designed for professional use in MMA/TIG/MIG/MAG welding modes. The kit includes high-quality personal protective equipment, electrodes, a case, wire, a wire feeder, a plug, magnets, and welding accessories.
Complete set
- PATON PRO-160 welding machine
- shoulder carrying strap
- copper cable (3 m) with Abicor Binzel DE2200 electrode holder
- copper cable (3 m) with Abicor Binzel MK300 ground clamp
- PATON™ branded case
- operating instructions
- Feeder-5-2 feed unit
- GUARDIAN RH 306 welding mask
- Werk RED gloves
- ANO-36 3 mm welding electrodes, 2.5 kg
- magnetic welding square (up to 11 kg)
- Magnetic welding square (up to 23 kg)
- ABI-CM cable plug 10-25
- E71T-GS flux-cored wire, Ø 0.8 mm, 1 kg
Additional materials
Specification
| Cooling | Adaptive |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 18-21 |
| Rated welding current (A) | 160 |
| Maximum operating current, A | 215 |
| Operating load factor | 70% |
| Power supply voltage range (V) | 160 - 260 |
| Welding current control range (A) | 8 - 160 |
| Diameter of a stick electrode, mm | 1,6-4,0 |
| Diameter of solid welding wire, mm | 0,6 - 1 |
| PULSE function | MMA, MIG/MAG, TIG |
| Warranty period, month | 60 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idling voltage, V | 12/75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 4,0-4,6 |
| Maximum consumption,power kVA | 5,8 |
| Efficiency, % | 92 |
| Overall dimensions, WxLxH, mm | 115х345х290 |
| Protection rate | IP33 |
| Weight (without accessories), kg | 5,2 |
Welding set «PATON PRO-160»
Code: 5020104001
In Stock
- 22764 грн
- 20000 грн
