Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 20 |
| Rated welding current (A) | 150 |
| Maximum operating current, A | 190 |
| Operating load factor | 45% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 20 - 150 |
| Diameter of a stick electrode, mm | 1,6-4 |
| Machine weight | 3,3 |
| Rated power consumption, kVA | 4,4 |
| Warranty period, month | 36 |
| «Hot-Start» | Auto |
| «Arc-Force» | Auto |
| «Anti-Stick» | Auto |
| Idling voltage, V | to 80 |
| Arc ignition voltage, V | 110 |
| Maximum consumption,power kVA | 5,5 |
| Overall dimensions, WxLxH, mm | 100х200х240 |
| Protection rate | IP33 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

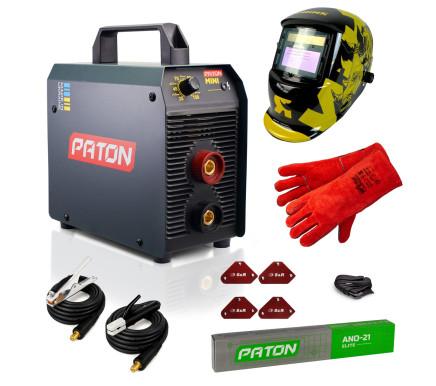

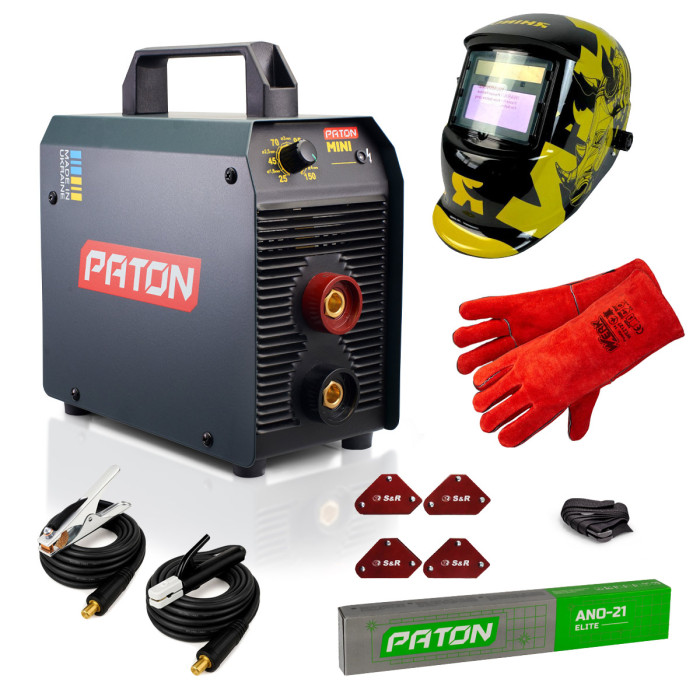

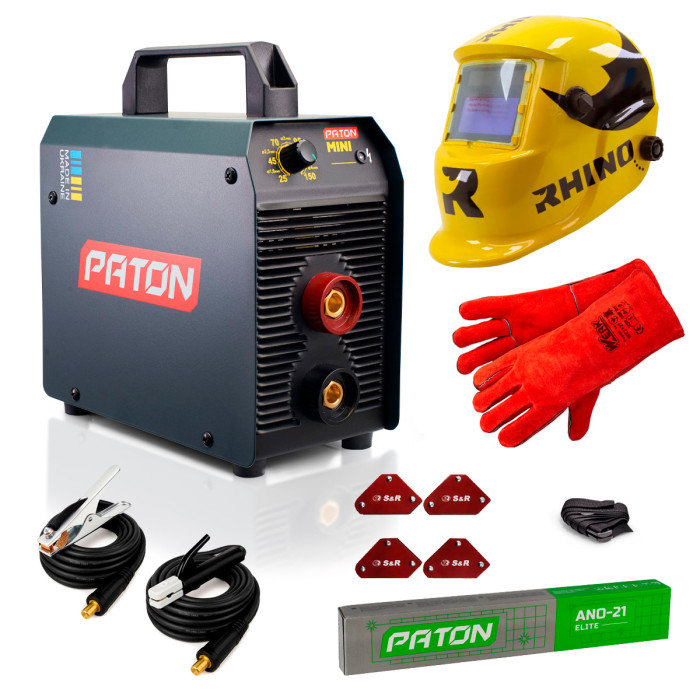

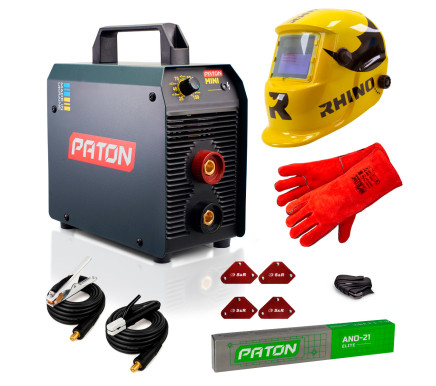

PATON MINI welding set is a specially selected set for safe and comfortable manual arc welding (MMA). The kit is perfect for those who need a compact and functional device (capable of operating at a rated current of up to 150A) for household needs in the garden, small workshops, and construction sites. It can be used by both beginners and professionals. The set comes with high-quality personal protective equipment (mask, leggings), ELITE series electrodes, and a set of magnets.
Complete set
- PATON MINI welding inverter
- shoulder carrying strap
- PATON branded corrugated box
- copper cable with electrode holder, 3 m
- copper cable with ground clamp, 2 m
- user manual
- GUARDIAN RH 306 welding mask
- Werk RED gloves
- ANO-21 ELITE 3 mm welding electrodes, 1 kg
- S&R magnetic angle bracket set (up to 4 kg)
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 20 |
| Rated welding current (A) | 150 |
| Maximum operating current, A | 190 |
| Operating load factor | 45% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 20 - 150 |
| Diameter of a stick electrode, mm | 1,6-4 |
| Machine weight | 3,3 |
| Rated power consumption, kVA | 4,4 |
| Warranty period, month | 36 |
| «Hot-Start» | Auto |
| «Arc-Force» | Auto |
| «Anti-Stick» | Auto |
| Idling voltage, V | to 80 |
| Arc ignition voltage, V | 110 |
| Maximum consumption,power kVA | 5,5 |
| Overall dimensions, WxLxH, mm | 100х200х240 |
| Protection rate | IP33 |
Welding set “PATON MINI”
