Specification
| Rated power supply voltage, V | 230 (190-260) |
| Rated welding current (A) | 200 |
| Operating load factor | DC - 40% AC - 50% |
| Welding current control range (A) | 10 - 200 |
| Contactless arc ignition | TIG DC/AC/MIX, SPOT DC/AC |
| Warranty period, month | 24 |
| Memorizing modes | + |
| Starting current regulation, A | 5 - 185 |
| Regulation of current rise time, sec | 0 - 15 |
| Idling voltage, V | 60 - 80 |
| Frequency of alternating welding current, Hz | 15 - 200 |
| Polarity balance when welding on alternating current,% | 15 - 85 |
| Torch trigger mode | TIG (2Т, 4Т), SPOT (2Т, 4Т) |
| Overall dimensions, WxLxH, mm | 465х150х350 |
| Weight, kg | 12,5 |
| Protection rate | IP23 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

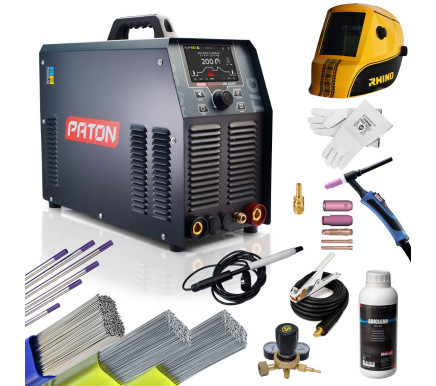

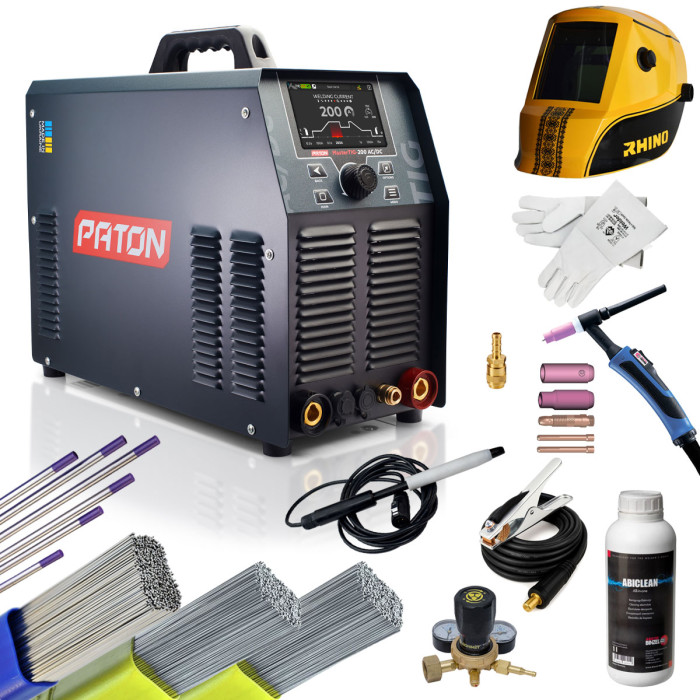

Welding Set "PATON MasterTIG-200" is a specially selected kit designed for professional TIG welding in AC/DC/MIX modes, as well as spot welding in SPOT AC/DC mode.
The PATON MasterTIG-200 machine also features a CLEAN mode, which provides cleaning of stainless steel components and welds from oxides, discoloration, and enables polishing of stainless steel surfaces.
The set includes high-quality personal protective equipment (helmet, gloves), magnetic holders, a gas regulator, gas hose, filler rods, a welding cable with ground clamp, a TIG torch with consumables, as well as the PATONBRUSH cleaning and polishing brush and a special electrolyte solution for the passivation of high-alloy steels.
Complete set
- PATON MasterTIG-200 welding machine
- PATONBRUSH cleaning and polishing brush
- PATON™ branded corrugated box
- ABICOR BINZEL argon arc torch, 4 m
- Copper cable (3 m) with Abicor Binzel MK300 ground terminal
- Quick-release pneumatic connector, 8 mm
- Operating instructions
- RHINO Commander RH-608
- ARDON welder's leggings for precision work (model GLEN)
- Aluminum rod AL Mg ER5356, diameter 2.4
- Aluminum rod AL SI ER 4043, diameter 2.4
- Stainless steel rod ER308, diameter 2.4
- Tungsten electrode “Binzel” EZ, diameter 2.4 (700.0308)
- Tungsten electrode “Binzel” EZ f3.2 (700.0310)
- Ceramic nozzle No. 7 (701.0110) - 5 pcs.
- Ceramic nozzle No. 8 (701.0111) - 5 pcs.
- AP-40/U-30-4DM reducer
- Hose for gas welding and cutting metals III-9.0-2.0, 10 m
- WE-D 2.4 mm collet (702.0009)
- WE-D 3.2 mm collet (702.0010)
- WE-D 3.2 mm collet body (701,0197)
- ABICLEAN electrolyte 1 l. (192.0369.1)
Additional materials
Testimonials
Specification
| Rated power supply voltage, V | 230 (190-260) |
| Rated welding current (A) | 200 |
| Operating load factor | DC - 40% AC - 50% |
| Welding current control range (A) | 10 - 200 |
| Contactless arc ignition | TIG DC/AC/MIX, SPOT DC/AC |
| Warranty period, month | 24 |
| Memorizing modes | + |
| Starting current regulation, A | 5 - 185 |
| Regulation of current rise time, sec | 0 - 15 |
| Idling voltage, V | 60 - 80 |
| Frequency of alternating welding current, Hz | 15 - 200 |
| Polarity balance when welding on alternating current,% | 15 - 85 |
| Torch trigger mode | TIG (2Т, 4Т), SPOT (2Т, 4Т) |
| Overall dimensions, WxLxH, mm | 465х150х350 |
| Weight, kg | 12,5 |
| Protection rate | IP23 |
