Specification
| Cooling | Adaptive |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 17 … 20 |
| Rated welding current (A) | 150 |
| Maximum operating current, A | 200 |
| Rated input current from mains, А | 12 – 23 |
| Operating load factor | 80% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 8 - 150 |
| Limits of regulation of speed of giving of a wire, m / min. | 1,0 - 10,0 |
| Diameter of a stick electrode, mm | 1,6-4 |
| Diameter of solid welding wire, mm | 0,6 - 1,0 |
| Weight of the coil no more, kg | 5 |
| Pulse modes during welding | MMA; TIG; |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 3,8 … 4,4 |
| Torch trigger mode | 2T, 4T, SPOT |
| Maximum consumption,power kVA | 5,5 |
| Overall dimensions, WxLxH, mm | 390х194х295 |
| Gross weight, kg | 12,7 |
| Weight, kg | 9,2 |
| Protection rate | IP33 |
Show all specifications
Increased duty cycle - 80%
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

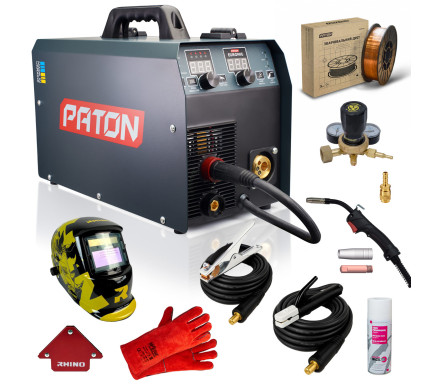

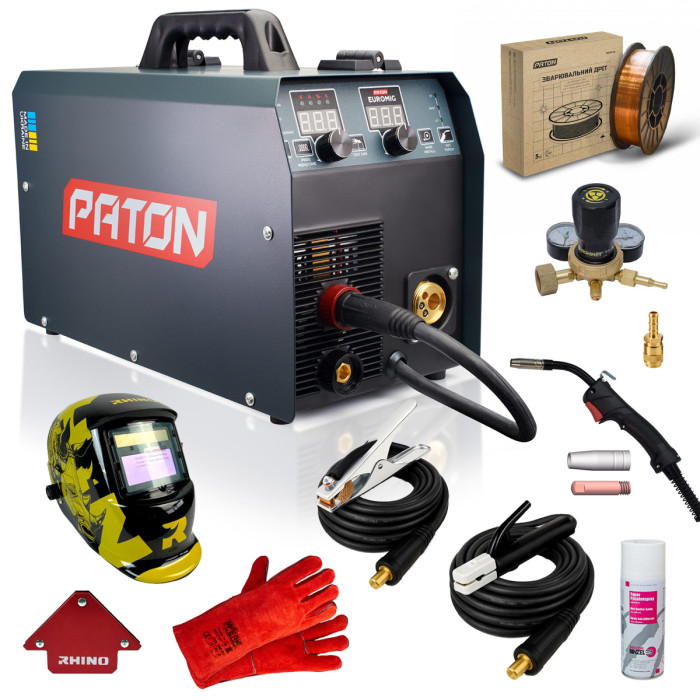

PATON EuroMIG MAX welding kit is a specially selected set for safe and comfortable semi-automatic welding (MIG/MAG), manual arc welding (MMA).The kit includes high-quality personal protective equipment (mask, leggings), copper-coated wire, a reducer, a set of welding cables, a semi-automatic torch, and consumables for MIG/MAG welding.
Complete set
- PATON EuroMIG welding machine
- PATON branded corrugated box
- MB-15 welding torch, 3 m
- copper cable (3 m) with ABICOR BINZEL DE2200 electrode holder
- copper cable (3 m) with Abicor Binzel MK300 ground clamp
- Quick-release gas hose connector
- Operating instructions
- GUARDIAN RH 306 welding mask
- Werk RED gloves
- Magnetic welding square (up to 11 kg) - 2 pcs.
- Tip, E-Cu - M6 D 0.8/6.0/25 (140.0059) - 5 pcs.
- Paton wire, 0.8 mm, 5 kg
- Gas nozzle, conical D 12.0/52.0 mm (145.0075)
- BINZEL spray (400 ml)
- AP-40/U-30 reducer
- Hose for gas welding and cutting metals III-9.0-2.0, 10 m
Additional materials
Testimonials
Specification
| Cooling | Adaptive |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 17 … 20 |
| Rated welding current (A) | 150 |
| Maximum operating current, A | 200 |
| Rated input current from mains, А | 12 – 23 |
| Operating load factor | 80% |
| Power supply voltage range (V) | 160-260 |
| Welding current control range (A) | 8 - 150 |
| Limits of regulation of speed of giving of a wire, m / min. | 1,0 - 10,0 |
| Diameter of a stick electrode, mm | 1,6-4 |
| Diameter of solid welding wire, mm | 0,6 - 1,0 |
| Weight of the coil no more, kg | 5 |
| Pulse modes during welding | MMA; TIG; |
| Warranty period, month | 36 |
| «Hot-Start» | Adjustable |
| «Arc-Force» | Adjustable |
| «Anti-Stick» | Auto |
| Idle voltage reduction unit | on/off |
| Idling voltage, V | 12 / 75 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 3,8 … 4,4 |
| Torch trigger mode | 2T, 4T, SPOT |
| Maximum consumption,power kVA | 5,5 |
| Overall dimensions, WxLxH, mm | 390х194х295 |
| Gross weight, kg | 12,7 |
| Weight, kg | 9,2 |
| Protection rate | IP33 |
Welding set «PATON EuroMIG MAX»
Code: 5020201002
In Stock
- 20663 грн
- 19060 грн
