Specification
| Cooling | Forced |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 20 |
| Rated welding current (A) | 160 |
| Maximum operating current, A | 190 |
| Operating load factor | 40% |
| Power supply voltage range (V) | 170-260 |
| Welding current control range (A) | 20 - 160 |
| Diameter of a stick electrode, mm | 1,6-4,0 |
| Warranty period, month | 60 |
| «Hot-Start» | Auto |
| «Arc-Force» | Auto |
| «Anti-Stick» | Auto |
| Idling voltage, V | to 80 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 4.4 |
| Maximum consumption,power kVA | 5.5 |
| Efficiency, % | 90 |
| Overall dimensions, WxLxH, mm | 100х200х240 |
| Gross weight, kg | 9 |
| Weight, kg | 3,7 |
| Protection rate | IP33 |
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description
ЕСО-160-С welding kit is a specially selected set for safe and comfortable manual arc welding (MMA). It is ideal for household tasks, private construction, and use by professional construction crews in small construction projects. The kit comes with high-quality personal protective equipment (mask, leggings), ELITE series electrodes, a set of magnets, a case, and welding accessories.

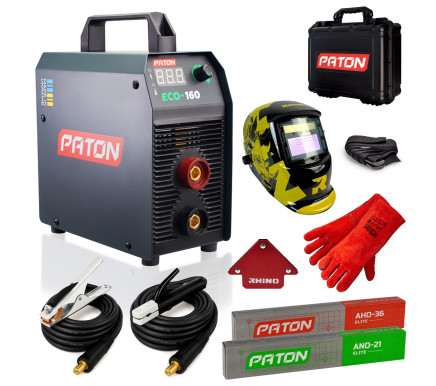

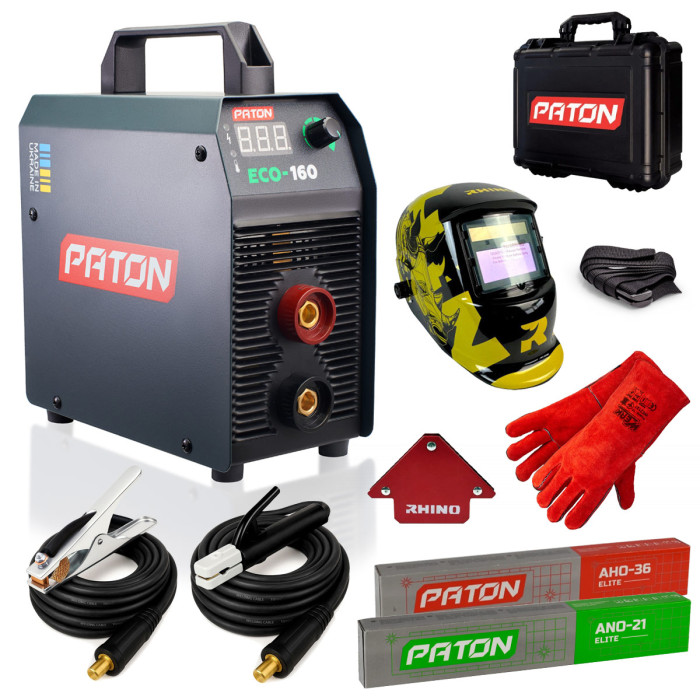

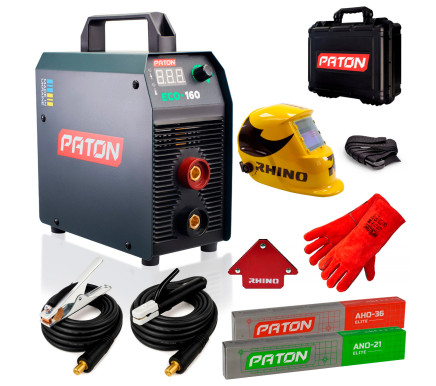

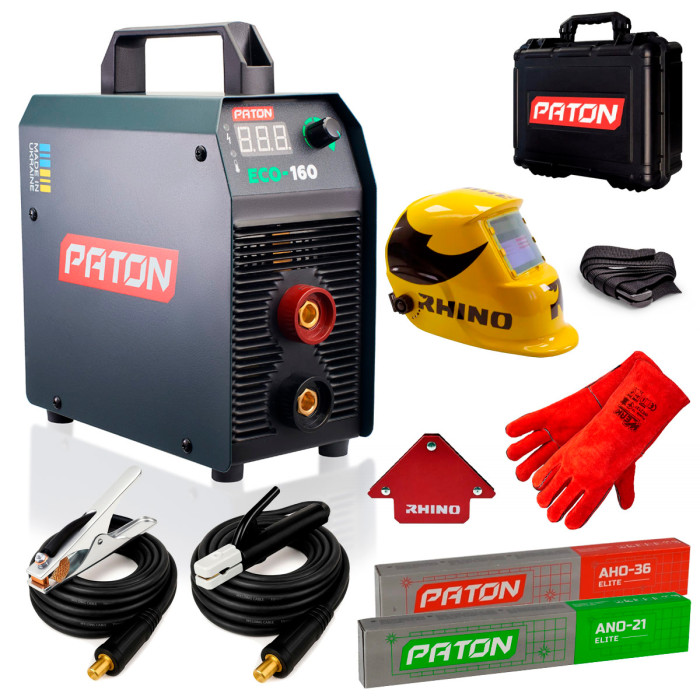

Complete set
- PATON ECO-160 welding machine
- shoulder strap
- copper cable (3 m) with Abicor Binzel DE2200 electrode holder
- copper cable (3 m) with Abicor Binzel MK300 ground clamp
- PATON branded case
- user manual
- GUARDIAN RH 306 welding mask
- Werk RED gloves
- ANO-36 ELITE 3 mm welding electrodes, 1 kg
- ANO-21 ELITE 3 mm welding electrodes, 1 kg
- magnetic welding square (up to 11 kg) - 2 pcs.
Additional materials
Testimonials
Specification
| Cooling | Forced |
| Rated power supply voltage, V | 220/230 |
| Rated current consumption from the mains phase, А | 20 |
| Rated welding current (A) | 160 |
| Maximum operating current, A | 190 |
| Operating load factor | 40% |
| Power supply voltage range (V) | 170-260 |
| Welding current control range (A) | 20 - 160 |
| Diameter of a stick electrode, mm | 1,6-4,0 |
| Warranty period, month | 60 |
| «Hot-Start» | Auto |
| «Arc-Force» | Auto |
| «Anti-Stick» | Auto |
| Idling voltage, V | to 80 |
| Arc ignition voltage, V | 110 |
| Rated power consumption, kVA | 4.4 |
| Maximum consumption,power kVA | 5.5 |
| Efficiency, % | 90 |
| Overall dimensions, WxLxH, mm | 100х200х240 |
| Gross weight, kg | 9 |
| Weight, kg | 3,7 |
| Protection rate | IP33 |
Welding set «ЕСО-160-С»
Code: 5020102001
In Stock
- 10220 грн
