Welding kit «PATON ProMIG-350-15-4»

-9%
The product is running out
Welding kit «PATON ProMIG-350-15-4»
Code: 5020204003
In Stock
  • 66305 грн
  • 60540 грн
Quick Checkout
Pay in installments
11051 hrn
x 6 month
6
6
6
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Free
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16 ... 18,5
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 350
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Number of rollers of the wire feed mechanism 4
PULSE function MIG/MAG/MMA/TIG
Weight of the coil no more, kg 15
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 10,7-12,3
Maximum consumption,power kVA 15,3
Cooling Adaptive
Overall dimensions, WxLxH, mm 360х540х400
Weight, kg 22,9
Protection rate IP33
Show all specifications
Up to 5 years of warranty
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description

PATON ProMIG-350-15-4 welding set is a specially selected set for safe and comfortable welding, designed for professional use in MMA та MIG/MAG welding modes. The kit includes high-quality personal protective equipment (mask, leggings), a set of welding cables, a semi-automatic torch, and consumables for MIG/MAG welding.

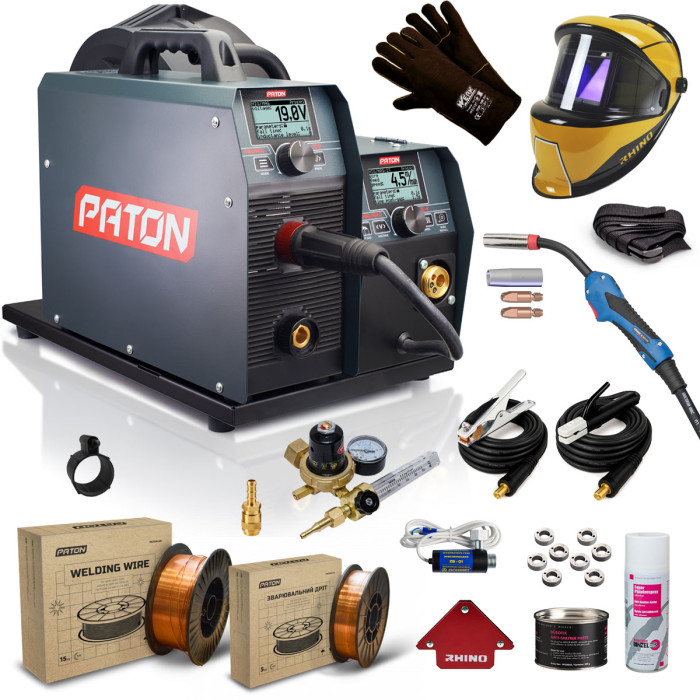

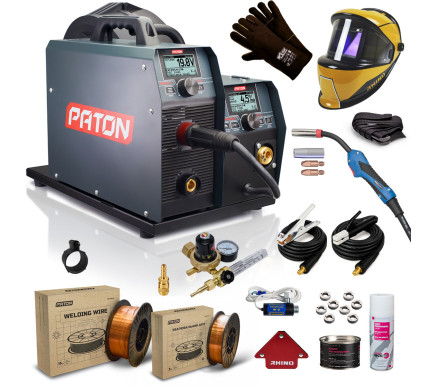

Complete set

  • Welding machine PATON ProMIG-350-15-4

  • Shoulder carrying strap

  • PATON™ branded cardboard box

  • ABIMIG A305 LW semi-automatic torch, 5 m

  • Copper welding cable (3 m) with electrode holder ABICOR BINZEL DE2300

  • Copper welding cable (3 m) with "ground" clamp Abicor Binzel MK300

  • Sets of drive rollers for 4 steel wire diameters and 2 aluminum wire diameters

  • Fitting for quick connection of gas hose

  • User manual

  • RHINO SHURMOVYK Panoramic RH-M900

  • Werk gloves (BLACK)

  • "Paton" welding wire Ø1.0 mm, 5 kg

  • "Paton" welding wire Ø1.2 mm, 15 kg

  • Magnetic welding angle clamp (up to 23 kg) – 2 pcs

  • Nozzle 145.D378.5 (push-in type) – 3 pcs

  • Pressure regulator AR40/U30 – 2DM (with rotameter)

  • Gas hose for welding and cutting of metals III-9.0-2.0, 10 m

  • Contact tip E-Cu-M8 Ø1.2/10/30 (140.0442) – 5 pcs

  • Contact tip E-Cu-M8 Ø1.0/10/30 (140.0313) – 5 pcs

  • Preheater PE-01

  • BINZEL spray (400 ml)

  • Düsofix paste, 300 g

  • Plastic adapter for 5 kg spool

Additional materials
Testimonials
Leave a review
Specification
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16 ... 18,5
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 14 - 350
Diameter of a stick electrode, mm 1,6-6
Diameter of solid welding wire, mm 0,6 - 1,4
Number of rollers of the wire feed mechanism 4
PULSE function MIG/MAG/MMA/TIG
Weight of the coil no more, kg 15
Warranty period, month 36
«Hot-Start» Adjustable
«Arc-Force» Adjustable
«Anti-Stick» Auto
Idle voltage reduction unit on/off
Idling voltage, V 12/75
Arc ignition voltage, V 110
Rated power consumption, kVA 10,7-12,3
Maximum consumption,power kVA 15,3
Cooling Adaptive
Overall dimensions, WxLxH, mm 360х540х400
Weight, kg 22,9
Protection rate IP33
