Specification
| Rated input current from the mains, A | 30 |
| Rated cutting current, A | 45 |
| Maximum cutting thickness of metal, mm | 10 |
| Recommended thickness of metal cut, mm | 6 |
| Non-contact ignition unit (oscillator) | + |
| Rated power supply voltage, V | 220/230 |
| Operating load factor | 50% |
| Power supply voltage range (V) | 190-250 |
| Welding current control range (A) | 20 - 45 |
| Pilot arc | - |
| Warranty period, month | 12 |
| Idling voltage, V | 270-310 |
| Rated power consumption, kVA | 5,5 |
| Maximum consumption,power kVA | 7 |
| Efficiency, % | 90 |
| Cooling | forced |
| Overall dimensions, WxLxH, mm | 305х428х292 |
| Weight, kg | 17,1 |
| Protection rate | IP23 |
Show all specifications
Reliable service
100% of the products undergo a full cycle of testing
Unique design of the device which provides effective cooling and the high lol of perfomance in the conditions of dusty production.
Stabilization system for large long-term voltage drops in the supply network from 160V to 260V
Unique ratio of mass and size characteristics with high power
Description
Plasma Cutting Set "PATON StandardCUT-45 MAXflow" is a specially selected kit designed for safe and comfortable cutting of metals and alloys up to 10 mm thick using a plasma arc in an air stream. The set includes a welding cable with a ground clamp, a plasma torch, and all the necessary consumables for plasma cutting.

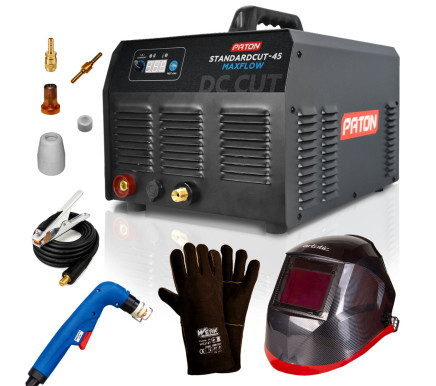

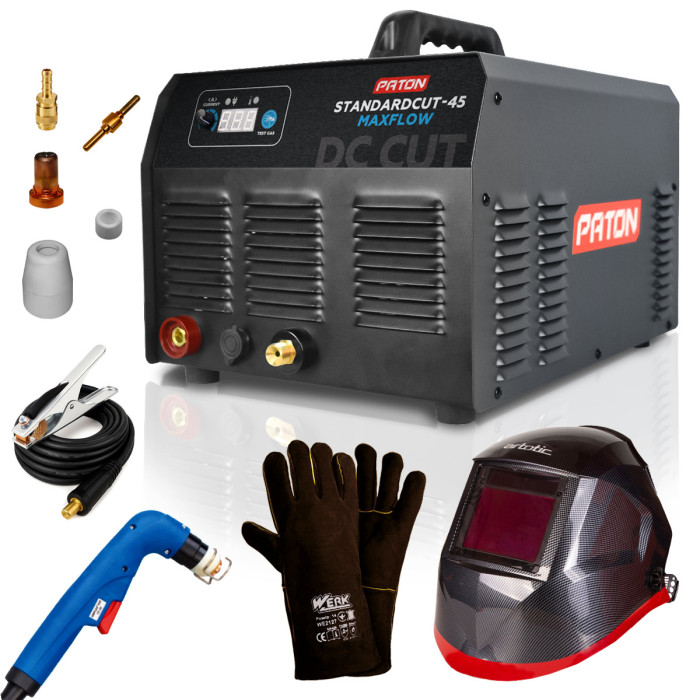

Complete set
PATON StandardCUT-45 MaxFlow plasma cutting power source
-
Plasma torch, 4 m
-
Welding cable with "ground" clamp ABICOR BINZEL, 4 m
-
Quick-connect fitting
-
User manual
-
Welding helmet Artotic Sun9L (STEEL POWER) WH.S9L108C
-
Werk gloves (BLACK)
-
Long copper cathode PT-31 (0034) – 20 pcs
-
Extended nozzle for PT-31 plasma torch – 20 pcs
-
Ceramic cap PT-31 (0036) – 15 pcs
Additional materials
Testimonials
Specification
| Rated input current from the mains, A | 30 |
| Rated cutting current, A | 45 |
| Maximum cutting thickness of metal, mm | 10 |
| Recommended thickness of metal cut, mm | 6 |
| Non-contact ignition unit (oscillator) | + |
| Rated power supply voltage, V | 220/230 |
| Operating load factor | 50% |
| Power supply voltage range (V) | 190-250 |
| Welding current control range (A) | 20 - 45 |
| Pilot arc | - |
| Warranty period, month | 12 |
| Idling voltage, V | 270-310 |
| Rated power consumption, kVA | 5,5 |
| Maximum consumption,power kVA | 7 |
| Efficiency, % | 90 |
| Cooling | forced |
| Overall dimensions, WxLxH, mm | 305х428х292 |
| Weight, kg | 17,1 |
| Protection rate | IP23 |
Plasma Cutting Set «PATON StandardCUT-45 MAXflow»
Code: 5020603001
In Stock
- 37575 грн
- 34290 грн
