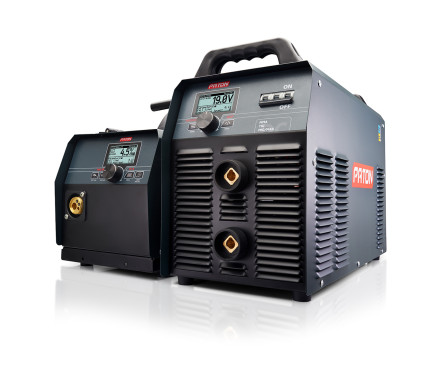

PATON™ ProMIG-630-15-4

Code: 0031
Code: 0031
In Stock
  • 49999 грн
Pay in installments
8333 hrn
x 6 month
6
6
Specification
Rated power supply voltage, V 380/400
Rated welding current (A) 630
Operating load factor 70%
Power supply voltage range (V) 380±15%
Welding current control range (A) 17 - 630
Diameter of a stick electrode, mm 1,6-8
Diameter of solid welding wire, mm 0,6 - 2
Rated power consumption, kVA 27,7-31,7
Maximum consumption,power kVA 39,6
Protection rate IP21
Warranty period, month 24
Description

Digital semiautomatic inverter PATON ProMIG-630-15-4 - is a device for professional use, designed for manual arc welding (RDS MMA), TIG and semi-automatic welding (MIG/MAG), DC, in shielding gases and mixtures thereof. In ProMIG-630-15-4 machine has an all-digital way to manage, thereby ensuring its versatility and opportunities to fine tune the welding conditions. Expectancy increased load on the rated current to 630A, allows any electrode diameter from 1.6 mm to 8 mm, and conduct semi-solid welding wire with a diameter of 0.6 to 2 mm. Due doublecase execution, a current source can be easily separated from the wire supply unit, which greatly improves the portability and usability in MMA and TIG modes.

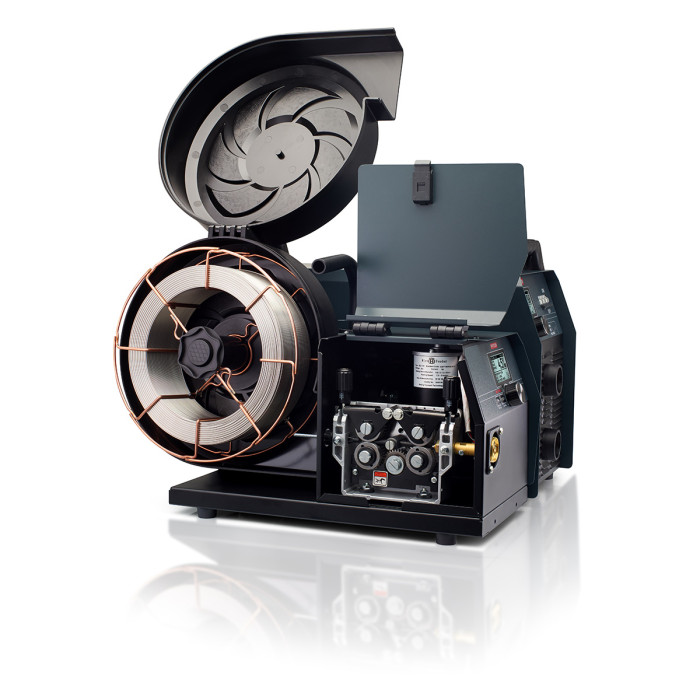

PATON ProMIG-630-15-4 equipped quality metallic 4-wire feed roller mechanism with a strong hermetic motor and the universal connector KZ-2 type ""EURO"" allows connecting welding torch from a wide range of manufacturers. Powerful holder allows the welding wire coils weighing up to 15 kg. Model ProMIG-630-15-4 in conjunction with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen machine is easy and convenient to set up a solution to any problem. The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG / MAG and MMA modes.

Complete set
  • The welding unit
  • WIre feed mechanism15-4 500 PRO W
  • Operation manual
  • PATON™ branded carton box
