Welding set PATON™ ProMIG-350-15-4-400V WK

Code: 0029
In Stock
  • 54498 грн
Pay in installments
4541 hrn
x 12 month
12
12
Department of Nova Poshta
Free
Courier Nova Poshta
According to the tariff Nova Poshta
Courier Paton
Free
Specification
Idling voltage, V 12/75
«Hot-Start» Adjustable
Rated power supply voltage, V 380/400
Rated current consumption from the mains phase, А 16 ... 18
Rated welding current (A) 350
Maximum operating current, A 450
Operating load factor 70%
Power supply voltage range (V) ±15%
Welding current control range (A) 16 - 350
Diameter of a stick electrode, mm 1,6-6
«Arc-Force» Adjustable
Diameter of solid welding wire, mm 0,6 - 1,4
«Anti-Stick» Auto
Arc ignition voltage, V 110
Rated power consumption, kVA 10,5-11,8
Maximum consumption,power kVA 15
Protection rate IP33
Cooling Adaptive
Warranty period, month 36
Weight of the coil no more, kg 15
Pulse modes during welding MMA/TIG/MIG/ MAG
Idle voltage reduction unit on/off
Show all specifications
Description

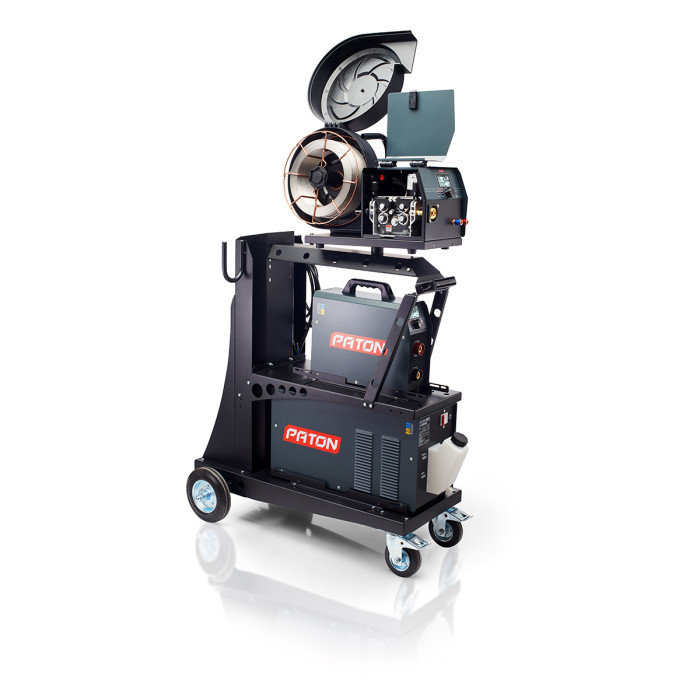

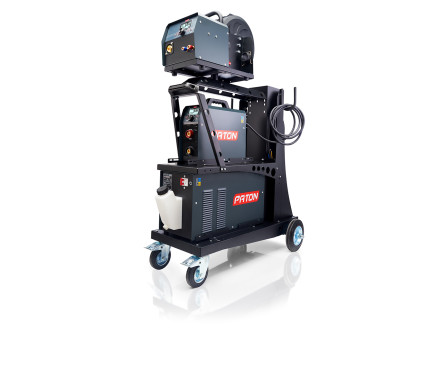

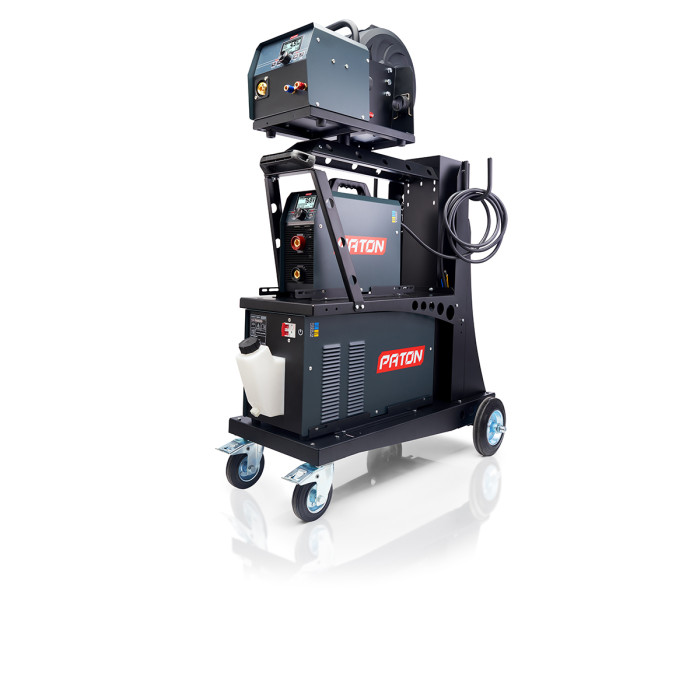

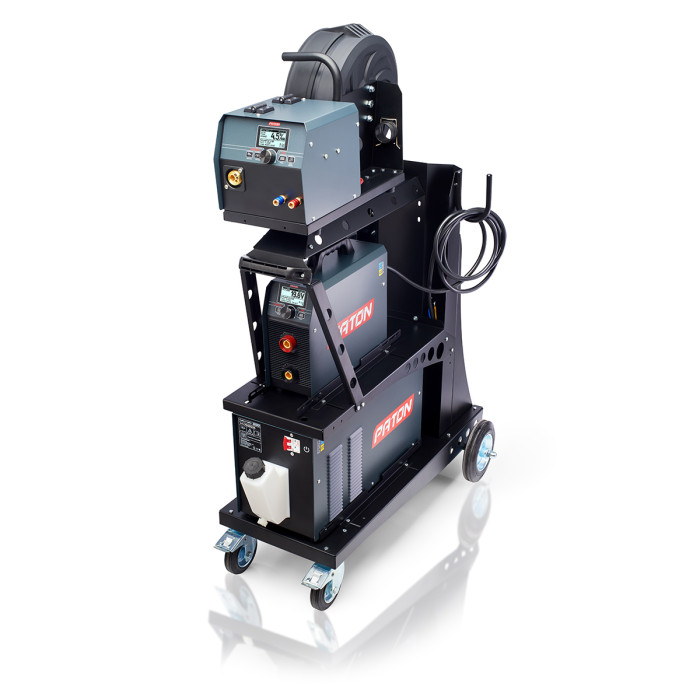

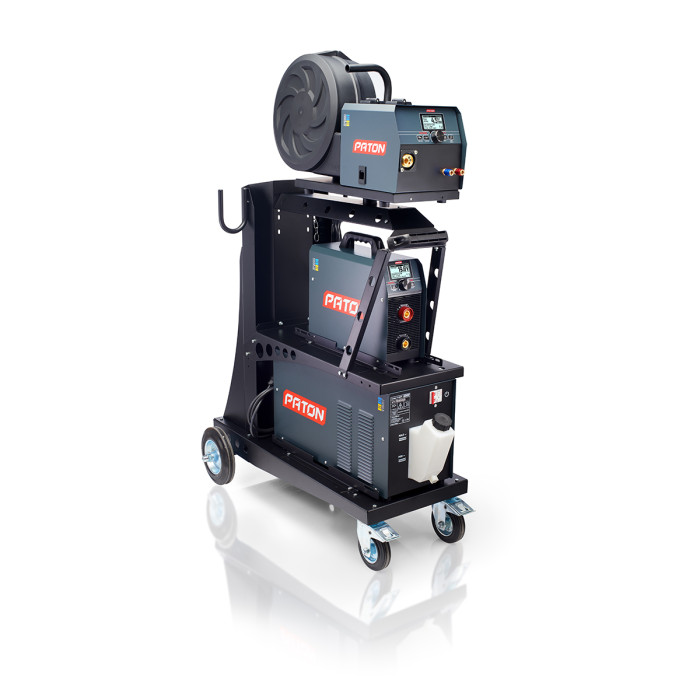

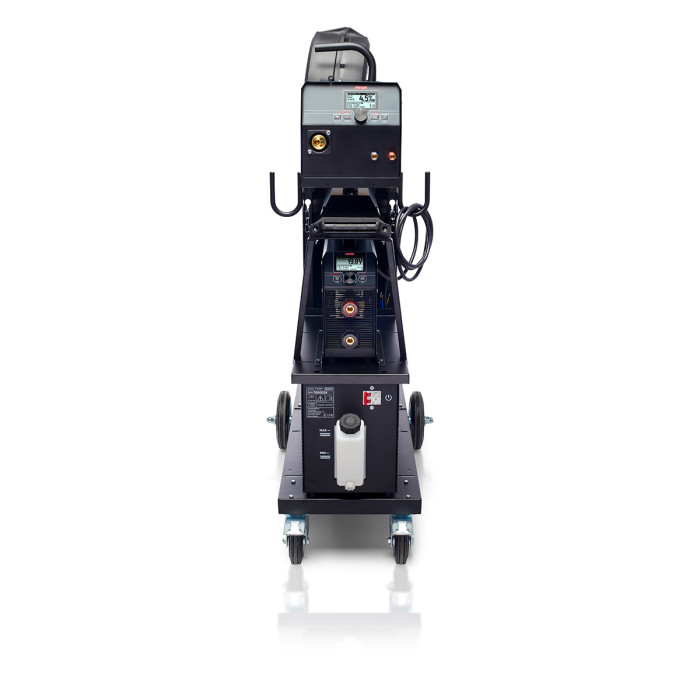

The PATON ProMIG-350-15-4 WK welding set is a complete solution for working with the PATON ProMIG-350-15-4 semiautomatic device.

Digital semiautomatic inverter PATON ProMIG-350-15-4 WK- is a device for professional use, designed for semi-automatic welding (MIG/MAG), manual arc welding (MMA), and TIG DC, in shielding gases and mixtures thereof. In ProMIG-350-15-4 machine has an all-digital way to manage, thereby ensuring its versatility and opportunities to fine tune the welding conditions. Expectancy increased load on the rated current to 350A, allows any electrode diameter from 1.6 mm to 6 mm, and conduct semi-solid welding wire with a diameter of 0.6 to 1.4 mm. Thanks to the two-case design, the wire supply unit can be separated from the current source by means of communication cables of different lengths (1, 5, 10 m) at a considerable distance from the current source and more convenient to work on complex or bulky metal structures, as well as MMA and TIG.

PATON ProMIG-350-15-4 WK equipped quality metallic 4-wire feed roller mechanism with a strong hermetic motor and the universal connector KZ-2 type ""EURO"" allows connecting welding torch from a wide range of manufacturers. Also equipped with 4 connectors for a liquid cooling hose and a cable with power contacts. Powerful holder allows the welding wire coils weighing up to 15 kg. Model ProMIG-350-15-4 in conjunction with high power and capacity, has a low weight and dimensions. And thanks to the LCD screen machine is easy and convenient to set up a solution to any problem. The device comes with high-quality accessories from the company ABICOR BINZEL, which allow you to immediately start work in MIG / MAG and MMA modes.

PATON Cooler-7 is designed to provide excellent cooling accessories (welding torches, plasma torches), when operating with the welding apparatus and installations plasma cutting. The autonomous cooling unit has a liquid flow sensor, which protects the burner from combustion in the event of cessation of fluid circulation. Cooler-7 model provides a reliable cooling of the burner works at high currents (> 300A for semiautomatic and> 140A for TIG welding) and is an integral part of the welding equipment operating in these conditions. Cooler-7 accommodates up to 7 liters of coolant and provides its circulation in a closed system with a high capacity (liquid supply to a height of 10 meters) and productivity (up to 6.5 l / min).


Recommended parameters for beginner welders
Complete set
  • Welding machine
  • Wire feeder
  • Autonomous cooling unit Cooler-7
  • Universal trolley PATON ™
  • Copper cable (3 m) with electrode holder ABICOR BINZEL DE2300
  • Copper cable (3 m) with ground terminal ABICOR BINZEL MK300
  • Roll kits for 4 steel wire diameters and 2 aluminum wire diameters
  • Gas hose quick-disconnect fitting
  • ProMIG-350-15-4-400V Instruction Manual
  • Cooler-7 Instruction Manual
  • Shoulder Strap
  • Branded PATON ™ corrugated boх*
  • FOR FULL-TIME OPERATION OF THE DEVICES IN THE KIT IT IS NECESSARY TO BUY A KIT OF COMMUNICATION CABLES AND WELDING TORCH!
